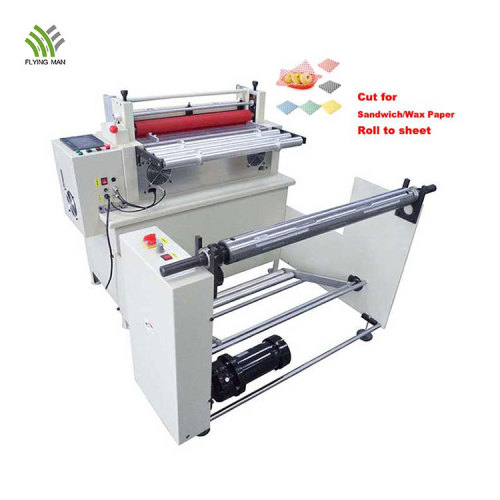

PLC controlled label roll to sheet cutting machine

Flying Man automatic roll to sheet cutting machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting , equipped with automatic unwinding system and 3 inch air shaft, which will be easy to load and unload.

Flying Man Brand Roll To Sheet Cutting Machine

Main functions

- Taiwan brand servo motor & Japan brand Mitsubishi PLC;
- Touch screen control panel, easy to operate;
- Can preset and adjust the cutting length ,total cutting quantity and speed;
- After the machine shutting down, it still can remember the amount automatically;

- Cutting tolerance can be reach ±0.1mm based on material.

Plc Controlled Cutting Machine

Product Parameters

SPECIFICATIONS FOR AUTOMATIC ROLL TO SHEET CUTTING MACHINE
Model	FMKY-700Q
Cutting length	0.1~9999.9 mm
Cutting Width	0-700 mm
Cutting speed	0-120 cuts/min (0-200mm length)
Cutting precision	±0.05 mm
Power	1.5 kw
Voltage	220 v/380 v
Counter	Meter counter + Speed Display Board
Machine Sizes (LWH)	1500x1400x1200 mm
Machine Weight	380 kgs

Touch Screen

You can set all parameter in touch screen, such as the length, batch quantity, total quantity, cutting speed, etc.

It's convenient for workers to operate the machine.

Roll to sheet cutting machine

Rubber roller to feed material

The rubber roll is connected with servo motor, which could feed material with high precision, reach ± 0.1mm.

Cutting Blade

Material:SKH-51
Original: Japan
Lifetime: About 20 million times cuts.

Scissor-type cutting blade, durable with highest hardness 65HRC. Easy to adjust, sharp, maintain and change.

Film roll to sheet cutter

We provide below optional parts, you may choose to install on the cutting machine, and also we offer the customization service based on your requirement.

- Photo Sensor

- Kiss cut (half-cut)

- Hot cutting
- Static electricity eliminator
- Photo Sensor

Photo Sensor

If added photo sensor for cutting machine, it can cut the printed material. The photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.

Kiss cutting

Material: Utility knife and fixture
This unit can finish kiss cutting .Below anvil is connected with springs, which could absorb shock and make sure the kiss cutting
well. Easy to adjust and maintain.

Copper Heater(Hot Cutting)

Adding the hot cutting unit with the blade, copper heater, temperature controller, it can cut and seal the material without burr.
Specially suitable for webbing and non-woven material.

The max temperature can reach 680 degree.

Product Application

Flying Man automatic sheeter machine is sizing cutting for paper (grease-proof paper, baking paper, wax paper, kraft paper), film, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.

Roll to sheet cutting machine application

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas.

After Sales Service

- Every customer can get one piece of English operation manual, a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
