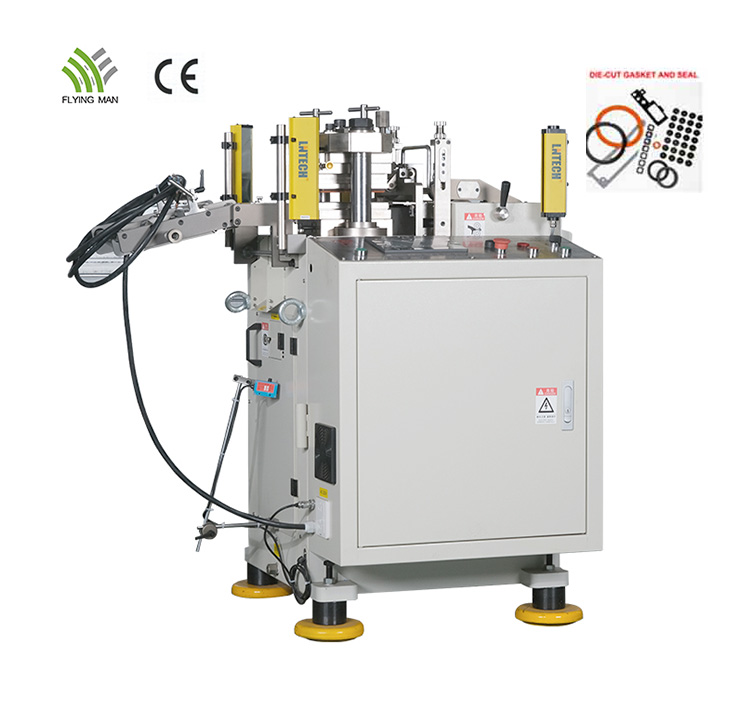

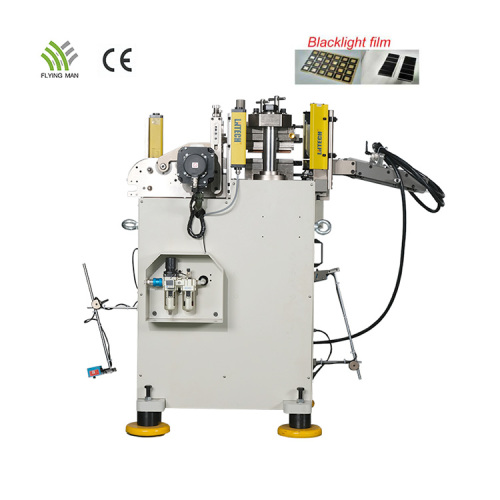

Professional Small Hole Position Production Line

Professional Small Hole Position Production Line also called as High Precision Flatbed Die Cutting Line. Flying Man series Die Cutting Machine is mainly used for backlight production lines, CNC hole position production line, specialized for multiple hole position die cutting products, use Japanese servo motor, touch screen control panel and PLC program control, combined the technology of the United States, Japan, South Korea, Taiwan made high precision die-cutting machine, the die cutting on the market has been very widely used, especially suitable for the repeatedly die cutting technology of complex product.

Product Parameters

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
Model	ENZO-200	Maximum Feeding Speed	30 mm/min
Press Force	5T	Feeding Accuracy	< 0.1 mm
Cutting stroke	24 mm	Feeding Roller	PU/NBR
Maximum Running Speed	300 times/min	Feeding Driven	Servo Motors
Stroke Adjustment	±5 mm	Lubricate method	Fully Automatic Central Lubrication System
Shut Height of Stell Mould	105 mm	Protection	3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)	120 x 150 mm	Power Supply	380v 3.5kw
Turning Way	Electrically Adjust	Machine Weight	1000 kgs
Press Style	Jog/Single/Continuous	Air Source Specification	0.5-0.6 mpa
Type of Mould	Plastic board mould, Chemical sculpture mould, Metal mould	Maximum size of mode(L*W)	200 x 180 mm
Maximum Feeding width	200mm	Machine Size (LWH)	1200 x 900 x 1250 mm

The Electronic tape converter die cutting production line is composed of 6 pieces, which can be automatically produced online or decomposed into several parts to work separately. It is suitable for all of molds, wood plastic molds, corrosion molds, engraving molds, hardware molds, QDC composite molds, to solve all kinds of complex processes. Unique hole positioning and timely correcting function to ensure repeated die-cutting and accurate positioning, punching accuracy control within 0.04mm. The main engine adopts intermittent lubrication with centralized oil supply, and the oil is circulated inside the machine. The main moving parts are fully lubricated during working,and the environment of the dust-free workshop is not polluted.

Good Quality Die Cutting Machine

Our Professional Small Hole Position Production Line is suitable to die cut the thin flexible electrically insulating materials such as plastic films, rubber, fibers, and papers.These materials include polyimide films, Mylar PET film, polypropylene, aramid fiber, insulation papers (aka fish paper), PTFE, solid rubber sheets such as silicone, neoprene, and many more etc.
