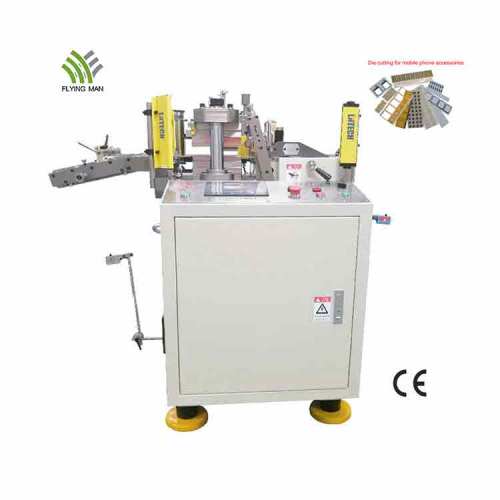

Quality Double Sided Adhesive Tape Die Cutting Line
The main engine of Die Cutting Line With Good Adhesion adopts intermittent lubrication with centralized oil supply. There is no obvious oil accumulation inside the machine, and the dirty oil is automatically discharged to the outside of the machine. The main moving parts are fully lubricated and do not pollute the environment of the clean room.
Industry Leader Die Cutting Line is suitable for all molds, wood plastic molds, corrosion molds, engraving molds, metal molds, QDC composite molds, and solve various complex processes. Best Die Cutting Line's unique hole positioning and timely correction function ensures repeated die cutting and accurate positioning, and the punching accuracy is controlled within 0.04mm.
|
SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
|
|
|
|
|||
|
Model
|
ENZO-200
|
Maximum Feeding Speed
|
30 mm/min
|
|||
|
Press Force
|
5T
|
Feeding Accuracy
|
< 0.1 mm
|
|||
|
Cutting stroke
|
24 mm
|
Feeding Roller
|
PU/NBR
|
|||
|
Maximum Running Speed
|
300 times/min
|
Feeding Driven
|
Servo Motors
|
|||
|
Stroke Adjustment
|
±5 mm
|
Lubricate method
|
Fully Automatic Central Lubrication System
|
|||
|
Shut Height of Stell Mould
|
105 mm
|
Protection
|
3 Optical Safety light curtain
|
|||
|
Maximum die cutting size of Steel Mould(L*W)
|
120 x 150 mm
|
Power Supply
|
380v 3.5kw
|
|||
|
Turning Way
|
Electrically Adjust
|
Machine Weight
|
1000 kgs
|
|||
|
Press Style
|
Jog/Single/Continuous
|
Air Source Specification
|
0.5-0.6 mpa
|
|||
|
Type of Mould
|
Plastic board mould, Chemical sculpture mould, Metal mould
|
Maximum size of mode(L*W)
|
200 x 180 mm
|
|||
|
Maximum Feeding width
|
200mm
|
Machine Size (L*W*H)
|
1200 x 900 x 1250 mm
|
|||
Our Industry Leader Die Cutting Line are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD, TV, Medical, Camera, Wearable, E-label, Car and printing etc.
Our precision die cutting machine is suitable to die cut the thin flexible electrically insulating materials such as plastic films, rubber, fibers, and papers. These materials include polyimide films, Mylar PET film, polypropylene, aramid fiber, insulation papers (aka fish paper), PTFE, solid rubber sheets such as silicone, neoprene, and many more etc.
Applications
Our Best Die Cutting Line are widely used in laminating, slitting and die-cutting of various spare parts such as mobile phones, laptops, LCD monitors, TVs, medical, cameras, wearable devices, electronic labels, automobiles and printing.Related Keywords
-
