Precision Double Sided Tape Die Cutting Line

Precision Double Sided Tape Die Cutting Line

Get Latest Price

Transportation:: Ocean, Land, Air

Port:: Shanghai port, China, Ningbo port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20 sets/year
Supply Ability:	20 sets/year
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE certification
HS Code:	8441100000
Transportation:	Ocean,Land,Air
Port:	Shanghai port, China,Ningbo port

Product Description

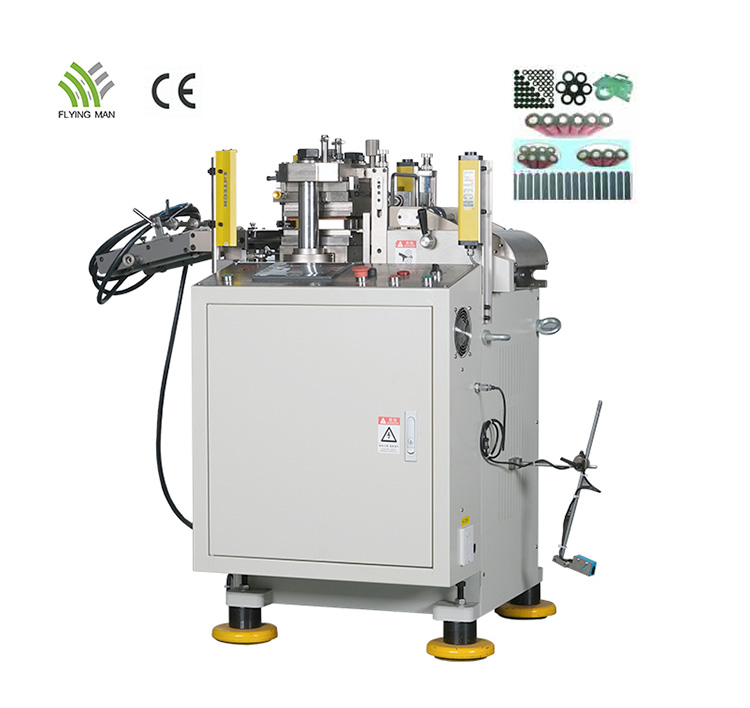

Precision Double Sided Tape Die Cutting Line

Electronic Converter Die Cutting Line is mainly used in backlight production line, CNC hole production line, specially used for multi-hole die-cutting products, and die-cutting machines on the market have been widely used.
Electronic Tape Converter Die Cutting is suitable for all molds, wood plastic molds, corrosion molds, engraving molds, metal molds, QDC composite molds, and solve various complex processes.
The main engine of Precision Converter Die Cutting Line adopts intermittent lubrication, centralized oil supply, and the oil circulates in the machine. When working, the main moving parts are fully lubricated, and the environment of the dust-free workshop is not polluted.

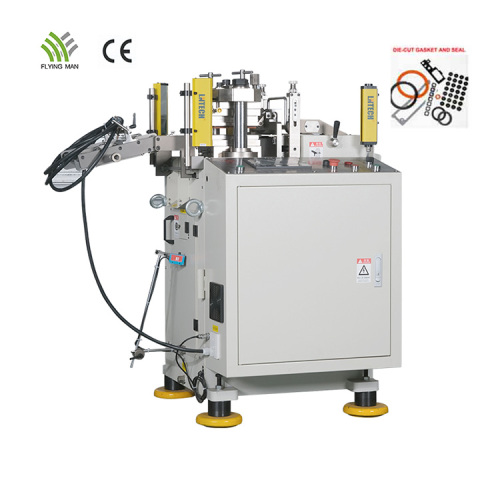

Electronic Converter Die Cutting Line

Product Parameters

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
Model	ENZO-200	Maximum Feeding Speed	30 mm/min
Press Force	5T	Feeding Accuracy	< 0.1 mm
Cutting stroke	24 mm	Feeding Roller	PU/NBR
Maximum Running Speed	300 times/min	Feeding Driven	Servo Motors
Stroke Adjustment	±5 mm	Lubricate method	Fully Automatic Central Lubrication System
Shut Height of Stell Mould	105 mm	Protection	3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)	120 x 150 mm	Power Supply	380v 3.5kw
Turning Way	Electrically Adjust	Machine Weight	1000 kgs
Press Style	Jog/Single/Continuous	Air Source Specification	0.5-0.6 mpa
Type of Mould	Plastic board mould, Chemical sculpture mould, Metal mould	Maximum size of mode(L*W)	200 x 180 mm
Maximum Feeding width	200mm	Machine Size (LWH)	1200 x 900 x 1250 mm

Product Application

Our machines are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD, TV, Medical, Camera, Wearable, E-label, Car and printing etc.

Our precision die cutting machine is suitable to die cut the thin flexible electrically insulating materials such as plastic films, rubber, fibers, and papers. These materials include polyimide films, Mylar PET film, polypropylene, aramid fiber, insulation papers (aka fish paper), PTFE, solid rubber sheets such as silicone, neoprene, and many more etc.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for Precision Converter Die Cutting Line ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
