Perforation die cutting production line

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai port, China, Ningbo port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20 sets/year
Supply Ability:	20 sets/year
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE certification
HS Code:	8441100000
Transportation:	Ocean,Land,Air
Port:	Shanghai port, China,Ningbo port, China

Product Description

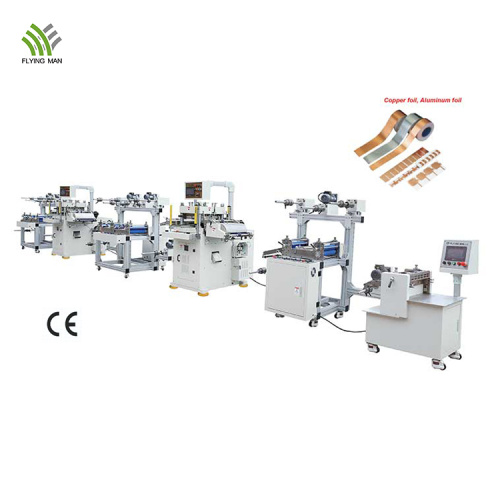

Perforation die cutting production line

Precision Flatbed die cutting line also called as "Small hole position production line". Flying Man series die cutting machine is mainly used for backlight production lines, CNC hole position production line, specialized for multiple hole position die cutting products, use Japanese servo motor, touch screen control panel and PLC program control, combined the technology of the United States, Japan, South Korea, Taiwan made high precision die-cutting machine, the die cutting on the market has been very widely used, especially suitable for the repeatedly die cutting technology of complex product. The whole Perforation die cutting production line is composed of 6 pieces, which can be automatically produced online or decomposed into several parts to work separately. It is suitable for all of molds, wood plastic molds, corrosion molds, engraving molds, hardware molds, QDC composite molds, to solve all kinds of complex processes. Unique hole positioning and timely correcting function to ensure repeated die-cutting and accurate positioning, punching accuracy control within 0.04mm. The main engine adopts intermittent lubrication with centralized oil supply, and the oil is circulated inside the machine. The main moving parts are fully lubricated during working， and the environment of the dust-free workshop is not polluted.

Enzo 420pl High Precise Die Cutting Production Line 1
Industry Highest Performance Characteristics

- Perfect flatness, it can kiss cut to 0.025 mm base material. - Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.

- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.

- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.

- With process saving function, the speed adjustment time is shortened.

- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.

- All the same mold are common and can be interchangeable conveniently with the same type of equipment.

- The operation interface is extremely simple and easy to use.

Product Parameters

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
Model	ENZO-420	Maximum Feeding Speed	30 mm/min
Press Force	12T	Feeding Accuracy	< 0.1 mm
Cutting stroke	28 mm	Feeding Roller	PU/NBR
Maximum Running Speed	150 times/min	Feeding Driven	Servo Motors
Stroke Adjustment	±5 mm	Lubricate method	Fully Automatic Central Lubrication System
Shut Height of Stell Mould	115 mm	Protection	3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)	370 x 260 mm	Power Supply	380v 5kw
Turning Way	Electrically Adjust	Machine Weight	2500 kgs
Press Style	Jog/Single/Continuous	Air Source Specification	0.5-0.6 mpa
Type of Mould	Plastic board mould, Chemical sculpture mould, Metal mould	Maximum size of mode(L*W)	420 x 320 mm
Maximum Feeding width	420mm	Machine Size (LWH)	1700 x 1700 x 1700 mm

Product Application

Our machines are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD, TV, Medical, Camera, Wearable, E-label, Car and printing etc.

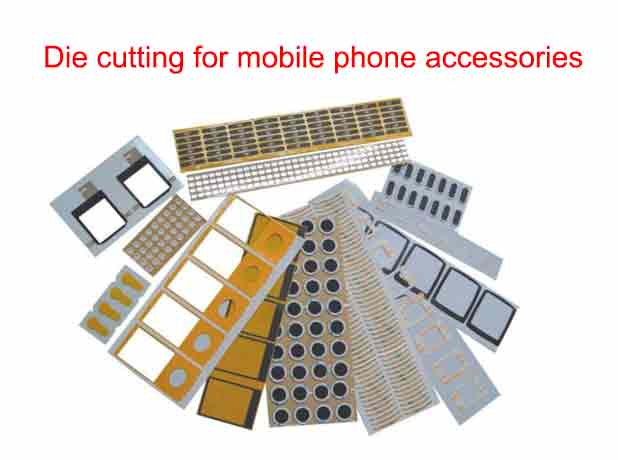

Die-Cutting for mobile phone accessories, including screen protection film, nameplate, series label, The headset microphone O-ring fixed, dust screen, LCD frame fixing, dust-proof cushion, cable fixedReceiver microphone cushion and etc.

Flatbed Die Cutting Machine Application Mobile Phone Accessories

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.
