PET Label Die Cutting Machine

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50 pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8441100000
Transportation:	Ocean,Land,Air
Port:	Main port, China

Product Description

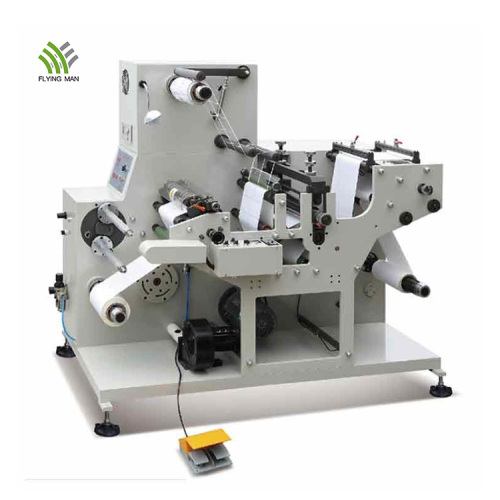

High Speed PET Label Die Cutting Machine

Flying man brand rotary die cutting machine is suitable for die cutting and slitting narrow pieces of paper with turret rewinder for small reels. Adhesive sticker label rotary die cutting machine has meter counter and number counter. The unwinding is controlled by two photoelectric eyes, the structure of the complete machine is compact, fast, with high efficiency, operate the characteristic simply, operate steadily.

High Speed Rotary Die Cutting Machine

Standard configurations

1. With 1pc 3’’ unwinding shaft, auto inflation air shaft.
2. With meter/number counter.
3. With two photoelectric eyes
4. With 8 sets rotary knives.
5. With one 25N.Mmagnetic brake, one 50N.M magnetic clutch.
6. Machine has blower fan to blow away the trimmed sides
7. The machine has both 2pcs 1.5” air shaft for rewind small reels, and also 1pc 3 inch air shaft for rewind big rolls. They

have the same way to install to the machine, so they are exchangeable.

Product Parameters

SPECIFICATIONS FOR ROTARY DIE-SLITTING MACHINE (WITH TURRET REWINDER)
Model	ENZO-320B
Slitting speed	100 m/min
Max. Web width	320 mm
Max. Unwinding diameter	700 mm
Max. Rewinding diameter for big roll	600 mm
Max. Rewinding diameter for small roll	200 mm
Max. Waste rewinding diameter	700 mm
Min. Cutting width	15 mm
Total power	3kw
Power supply voltage	380v±10%
Machine weight	About1200kg
Dimensions	1800 x 1100 x 1800 mm

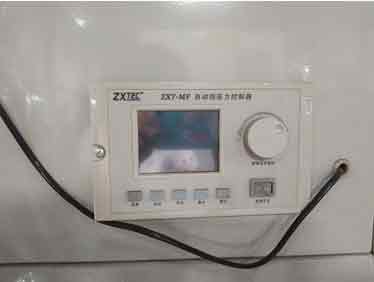

Tension controller for unwind

Tension controller for rewind

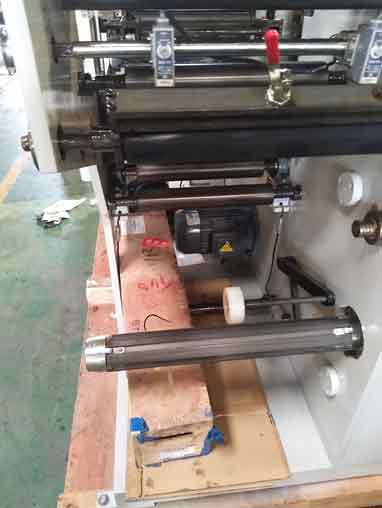

Air shaft for unwind, Auto inflation, no need by hand each time. And save air guy and wires everywhere.

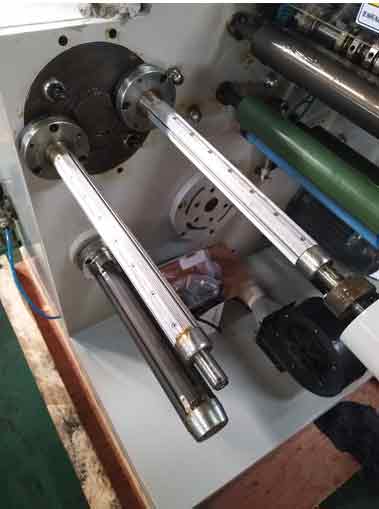

Air shaft for rewind, auto inflation, no need by hand each time And he save air guy and wires everywhere.

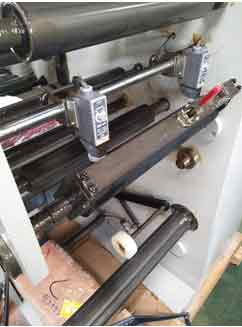

Electric eyes from Baideli, can change to Taiwan brand.

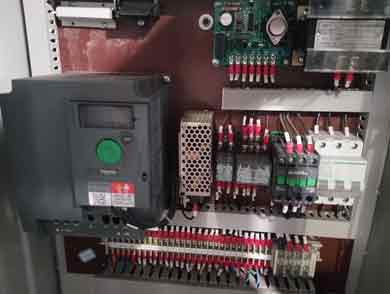

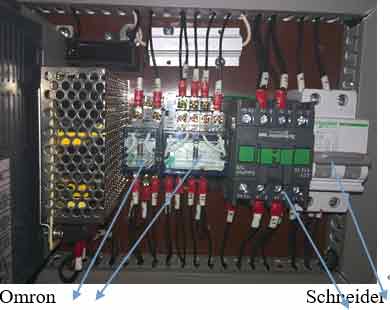

Electric box(most part from Schneider and Omron)

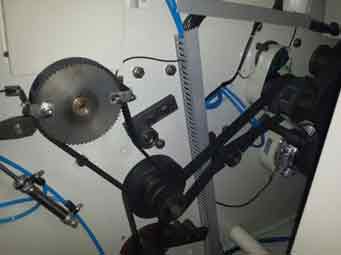

Drived by belt

Slitting knife

Unwind, rewind, magnetic rewind controlled by magnetic brake and clutch

Product Application

The machine is applicable to die cut self adhesive labels, Dacron film labels and laser anti-false labels, it is an ideal auxiliary of flexo printing machine, screen printing machine, relief printing machine and so on.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
