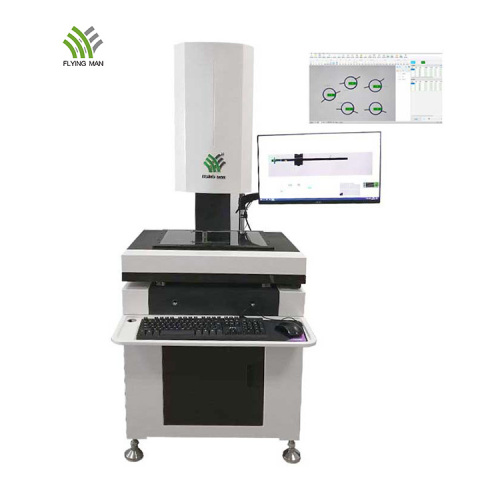

Image measuring instrument for industrial

One touch high precision visual measuring instrument (Image measuring instrument for industrial) is a new image measuring technology. Through high-precision double telecentric lens, the product contour image is transmitted to millions of pixels or even 43 million high resolution digital camera for digital processing, and then precise measurement, data determination and output are carried out by high-precision one-key professional measurement software. Within the measurement range, it can measure more than 20000 sizes at one time,100 sizes can be tested less one second. The efficiency is 21 times higher than that of traditional imaging instrument. It can save manpower cost effectively and improve the efficiency of testing.

Fmvm300 Optical Image Measuring Instrument 4

Product Parameters

Full Automatic One Touch High Precision Vision Measuring Instrument
Model	FMVM500
Measuring stroke (mm)	500400200mm
Measuring range (mm)	*Single vision: 8657mm**
Z axis movement	Automatic
Depth of focus(mm)	8mm
Camera Lens	0.151X double tele centric optical lens multiplier
Weight (kg)	320kgs
Bearing Weight (kg)	20kgs
Machine size(mm)	13538861707mm
Imaging Sensor (pixel)	20 Million Pixels Industrial Camera
Accurate (μm)	±（3+L/50）
Repeatability(μm)	±2.0
Minimum Display Unit (mm)	0.0001mm

Z Axis Working Distance (mm)	150mm
Light Source	1000-level programmed light source; Contour light: telocentric parallel light; surface coaxial light source
Image Processing	IVT advanced image analysis method; 256 gray level; 20:1 sub-pixel processing technology
Software	IVT-VISION-ONEKEY professional measurement software
Working Environment	Temperature: 22℃±3℃;Humidity: 50-70%;Vibration: < 0.002 mm/s, < 15 hz
Power Supply	220V/50Hz

Advantages

- Automatic Matching

The same category of products are programmed once, stored permanently, and automatically matched when measuring.

- Automatic measurement

It can cooperate with the manipulator arm to realize automatic measurement.

- Simple calibration

Only one functional calibration key is needed to ensure the measurement accuracy by multi-angle, omnidirectional and full-field calibration.

- Easy to use

Humanized and intelligent software design, without too much user operation, easy to learn, easy to use, easy to use.

- Measuring function

Two-dimensional measurement of point, line, circle, arc, angle, distance between point and line, distance between line and circle, etc.

- Data auto-saving

The results of measurement are automatically saved to the computer, including the date of measurement, batch number of products and other information.

- Contour Scanning

Scan contour quickly and export DXF file.

Optional features

- Customization of software functions

- 29 or 43 megapixel industrial camera

- Optional laser to measure 3D dimensions

process control

Optical Image Measuring Instrument Small

Product Application

One touch high precision visual measuring instrument can be used in machinery, electronics, mould, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, appliances, printed circuit boards, medical devices, clocks, knives and other fields.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
