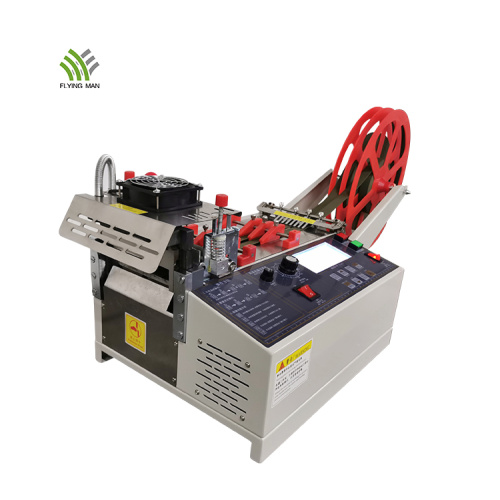

Hot Sale Multi Angle Webbing Tape Cutter

Hot Sale Multi Angle Webbing Tape Cutter

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main Port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	84411000
Transportation:	Ocean,Land,Air,Express
Port:	Main Port,China

Product Description

Lower Price Multi Angle Webbing Tape Cutter

Flying Man automatic roll to sheet cutting machine can cut material including: ribbon, elastic band, Velcro, adhesive buckle belt, woven belt, nylon ribbon, color ribbon, backpack belt, shoelace, woven network tube, telescopic network tube, etc. High precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation. This automatic roll to sheet cutting machine is simple and practical, saving a lot of manpower and material resources.

Product Parameters

Fully Automatic Multi Angle Webbing Tape Cutting Machine （Angle need adjust by hand, refer to the video）
Model	FMHD-100T
Cutting length	0.1 mm-9999.9 mm
Cutting Width	Max. 103 mm
Cutting thickness	0.1-5 mm
Cutting speed	110 pieces/min
Power	450W
Voltage	110V/220VAC 60HZ/50HZ
Machine Weight	23 kgs
Machine size	560 x 430 x 400 mm
Feeding speed	Adjustable
Cutting tolerance	1% x cutting length
Temperature	350 degrees Celsius

Advantages & Features

- Upgrade the direct drive motor.

- High precision, small error.

- Automatic alarm after finished the working.
- Energy saving and save electricity.
- Strong and durable.
- Lack of material stop automatically.
- Hot function or Cold/hot function
- High speed feeding.

High speed steel cutter

Cutting knife speed and feeding speed are adjustable. High speed steel knife can cut ultra-wide materials.

Customized Mode

Knife mold can be customized, choose one of above to meet your production requirement. Standard version is straight cut, for angle cut, please check with us for the additional cost.

Upgrated Motors

Upgraded Motors

- High-precision electric motor control cutting precision.
- Power flow strong, feeding materials quickly.
- Upgraded motors have longer operating life.
Control Panel 1

Control panel

- Chinese-English buttons and operation screens.
- Setting length, speed, quantity freely.
- It’s easy to understand and operation.

Material Induction

Material induction
- No material monitoring.
- Automatic shutdown.

ribbon cutting machine

Cooling fans

Large cooling fan can timely heat down the machine temperature, avoid excessive temperature caused by the loss of the machine and to ensure the sustainable operation of the machine.

hot and cold cutter

Stuffing plate.

With the function of clamping material, prevent material scattered, fall off, resulting in smooth material cutting and slow

speed, etc.

Product Application

Flying Man automatic roll to sheet cutting machine can be used to straight cut or multi-angle cut for many kinds of materials.

Material cutting range: hot cut or hot/cold cut according to different products, more wide range of use, mainly applicable to cut of Velcro, buckle tape, woven tape, tape, leather, horse spring belt, wire, safety belt, nylon webbing, ribbon, color ribbon, backpack belt, shoelace, woven net tube, telescopic net tube and other materials.
Applicable industry: suitable for clothing, footwear, packaging, electrical appliances, home textiles, tents, cloth and other industries.

Application

Installation Steps

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
