Self adhesive label roll to sheet cutting machine
-
$7600.001-5 Piece/Pieces
-
$7300.00≥6 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Main port, China
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 50pcs/month |
| Supply Ability: | 50pcs/month |
| Payment Type: | L/C,T/T,Negotiation |
| Incoterm: | FOB,CFR,CIF,EXW,DAF |
| Certificate: | CE |
| HS Code: | 8441100000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Main port, China |
Product Description
Product Description

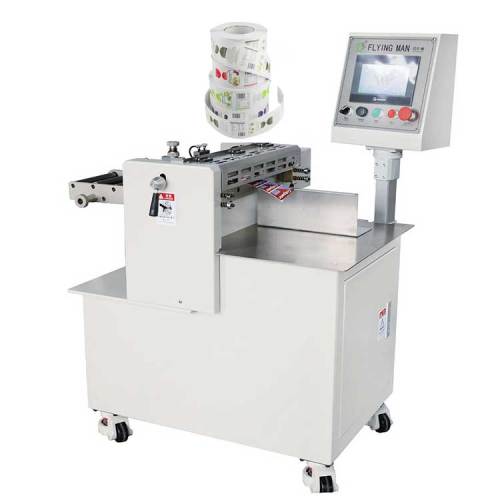

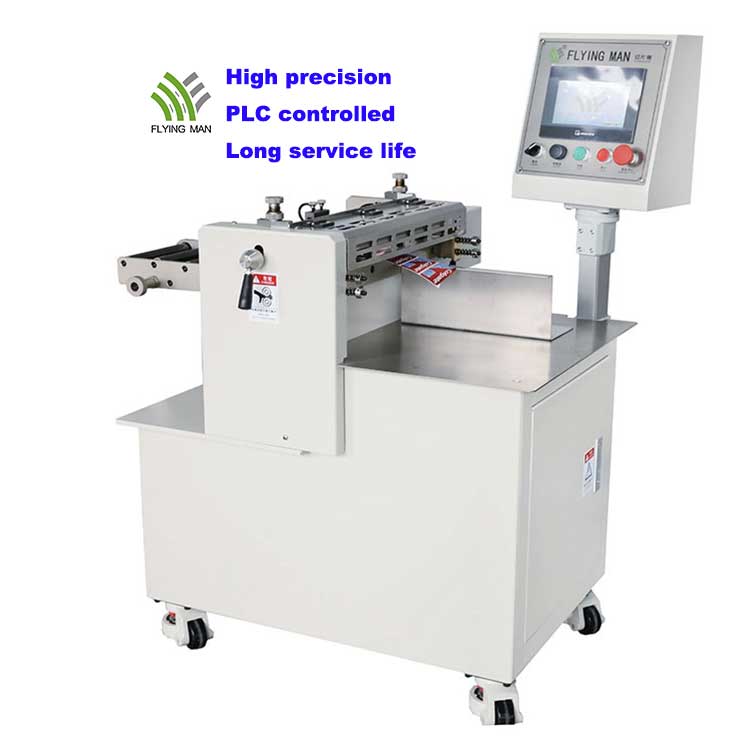

Self adhesive label roll to sheet cutting machine
This roll to sheet cutting machine is suitable for cutting to size of conductive cloth, foam, diffusion sheet, reflective film, double-sided tape, nickel sheet, PET, PC, PE insulating paper, copper/aluminum foil, release paper, various adhesive tapes and etc.
Feature
- The working width up to 420mm.
- Automatically tracking slicing by electrical eye.
- Safety protection device for cutter.
- Electrical eye is close to the knife edge, and the cutting position error is small.
- Simple operation, just set the length, automatic alignment of equipment.
- Optional online cutting.
- It can connect with other machines to work. Usually cooperate with die cutting machines and laminating machines to make up production line.
Product Parameters
|
SPECIFICATIONS FOR AUTOMATIC CUTTING/SLICING MACHINE
|
|
|
|
Model
|
FM-420
|
|
|
Cutting width
|
max. 420 mm
|
|
|
Cutting accuracy
|
±0.05 mm
|
|
|
Power
|
220 v
|
|
|
Voltage
|
1.5 kw
|
|
|
Machine Sizes (L*W*H)
|
900 x 900 x 1300 mm
|
|
|
Machine Weight
|
200 kgs
|
|
|
PLC & Servo Motor
|
Mitsubishi, Japan
|
|
|
Transducer
|
Schneider, France
|
|
|
Low voltage electrical apparatus
|
Schneider, France
|
|
Touch Screen
To set all parameter in touch screen, the length, batch quantity, total quantity , cutting speed and etc.
It's convenient for workers to operate the machine.

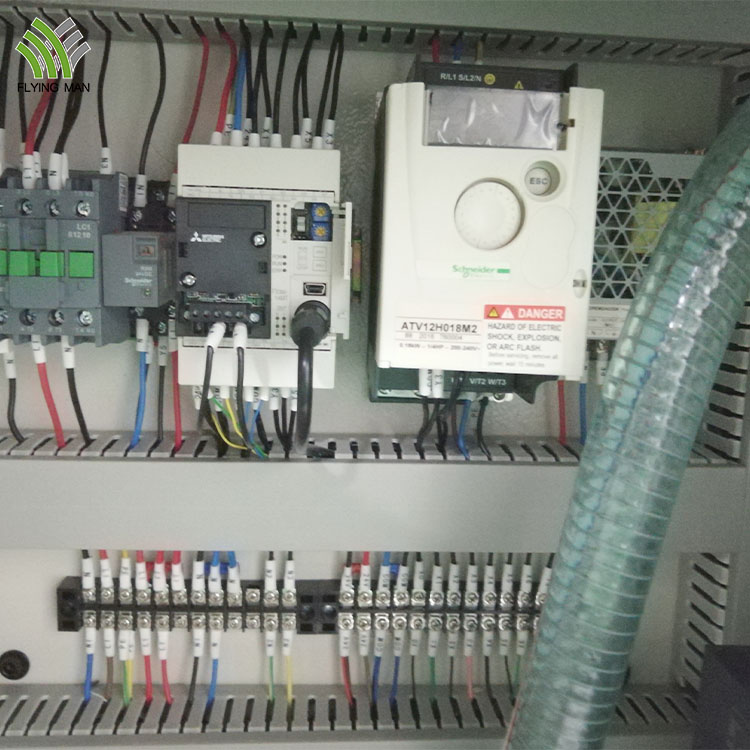

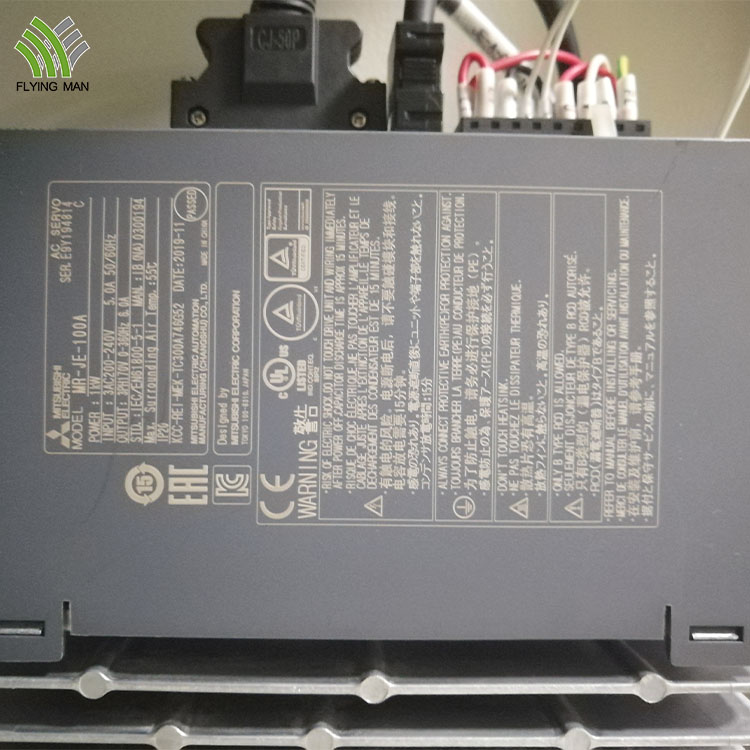

Mitsubishi Servo motor & Mitsubishi PLC control system & Schneider Transducer & Schneider Low voltage electrical apparatus adapted, to make sure the machine can perform high efficient and stable operation.
Product Application
This machine is suitable for cutting to size of conductive cloth, foam, diffusion sheet, reflective film, double-sided tape, nickel sheet, PET, PC, PE insulating paper, copper/aluminum foil, release paper, various adhesive tapes and etc.
Space are not enough to list all kinds of materials, if you are not sure if your material can be cut by this machine, please send photo for reference or send material for testing, we will test and send you working video.
Technical Service
- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.
Training service
Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.
After Sales Service
- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.
Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.
Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.
Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
Your question will be highly appreciated.
A: We are a factory and manufacturer.
Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.
Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.
Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.
Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
Your question will be highly appreciated.
