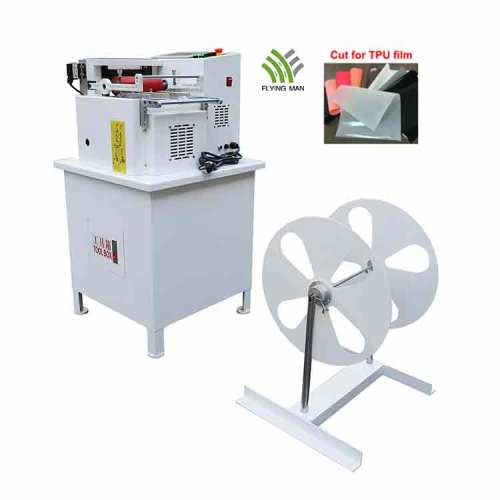

High speed aluminum foil cutting machine

Flying Man high speed aluminum foil cutting machine employs microcomputer controller to set belt cutting length. This foil cutter is ergonomically designed. Operation is easy.

Plc Controlled Roll To Sheet Cutting Machine 13

Feature

- Servo drive, man-machine interface control.
- Can preset and adjust the cutting length and speed.
- Cutting tolerance can be reach ±1mm based on material.
- Scissor-type cutting knife, durable with high-speed steel.

Main functions

- Feed material and return material by pressing the button on touch screen.

- Preset total cutting quantity.
- Preset cutting length.
- Preset cutting speed.
- Preset cut quantity each time ( applied for hot cutting)
- Flash cutting quantity finished

- Return to ZERO

Product Parameters

SPECIFICATIONS FOR AUTOMATIC ROLL TO SHEET CUTTING MACHINE
Model	FMKY-160Q
Cutting length	0.1~9999.9 mm
Cutting Width	0-160 mm
Cutting speed	0-100 cut/min
Cutting precision	±0.05 mm
Power	0.75 kw
Voltage	220 v
Counter	Meter counter + Speed Display Board
Machine Sizes (LWH)	550x550x1000 mm
Machine Weight	133 kgs

Touch Screen

You can set all parameter in touch screen, such as the length, batch quantity, total quantity, cutting speed, etc.

It's convenient for workers to operate the machine.

Roll to sheet cutting machine

Rubber roller to feed material

The rubber roll is connected with servo motor, which could feed material with high precision, reach ± 0.1mm.

Cutting Blade

Material: SKH-51
Original: Japan
Lifetime: About 20 million times cuts.

Scissor-type cutting blade, durable with highest hardness 65HRC. Easy to adjust, sharp, maintain and change.

Sticker cutting machine

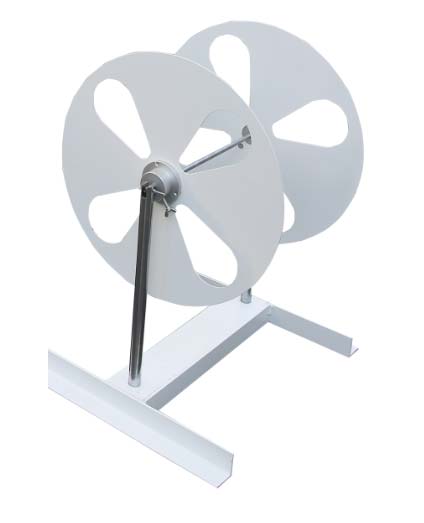

Simple Material Unwinder

Material unwinder for automatic paper roll to sheet cutting machine.
it supports a simple material roll with light weight. it's better less than 10KG.
if your material is heavy, other kind of unwinder is optional.

We provide below optional parts, you may choose to install on the cutting machine, and also we offer the customization service based on your requirement.

- Photo sensor: cutting material at a specified position.

- Hot cutting function with copper heater: to make the cut edge without burrs.
- Automatic unwinding device (For heavy materials)
- Kiss cutting unit: half cut
- Static electricity eliminator
- Conveyor belt

Photo Sensor

If added photo sensor for cutting machine, it can cut the printed material. The photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.

Copper Heater(Hot Cutting)

Adding the hot cutting unit with the blade, copper heater, temperature controller, it can cut and seal the material without burr.
Specially suitable for webbing and non-woven material.
The max temperature can reach 680 degree.

Automatic unwinding device

This unwinding device is controlled by motor, you can adjust the speed.

It has sensor to send the material automatically. It could supports about 30KG weight. inflatable air shaft with 3 inch OD.

Product Application

Sizing cutting for paper, label, stickers, films (PE,PET,PC,OPP,PVC ), heat shrinking tube, Nylon bag, strapping tape, flat cable, PVC sleeve, soft tube, non-woven fabric, elastic band, insulation paper, two-sided tape, Velcro, cotton yarn belt, zipper, etc.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
