Automatic sticker roll to sheet cutting machine

Automatic sticker roll to sheet cutting machine

$7200.00

1-5 Piece/Pieces
$7000.00

≥6 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8441100000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

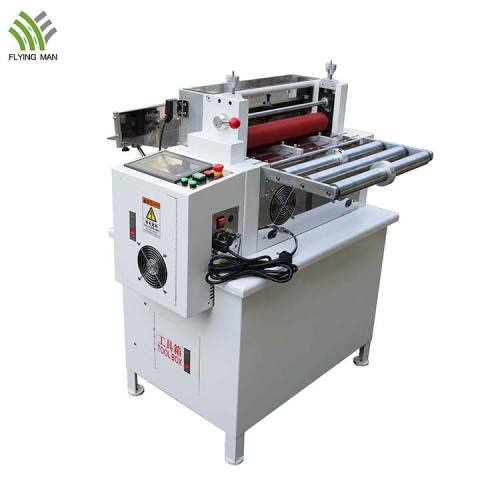

Automatic sticker roll to sheet cutting machine

This Automatic sticker roll to sheet cutting machine assembles microcomputer controller to set belt cutting length. This PLC controlled cutting machine is ergonomically designed. Operation is easy.

360mm Cutting Machine 10

Feature

This cutting machine employs man-machine interface + PLC system equipped with pneumatic pushing device.

- For half cut-off with multi-cut, full cut-off with one-cut.

- Five different cutting length can be set.

- Different cutting quantity and circulation time also can be set to improve cutting efficiency.

- High precision, low loss, easy operation.

Main functions

- Feed material and return material by pressing the button on touch screen.
- Preset total cutting quantity.
- Preset cutting length.
- Preset cutting speed.
- Preset cut quantity each time ( applied for hot cutting).
- Display cutting quantity finished.
- Half cut-off with multi-cut.
- Full cut-off with one-cut.
- Five different cutting length can be set.
- Different cutting quantity and circulation time can be set.
- Return to ZERO.

Product Parameters

SPECIFICATIONS FOR AUTOMATIC ROLL TO SHEET CUTTING MACHINE
Model	FMKY-500Q
Cutting length	0.1~9999.9 mm
Cutting Width	0-500 mm
Cutting speed	0-130 cuts/min
Cutting precision	±0.05 mm
Power	1.5 kw
Voltage	220 v/380 v
Counter	Meter counter + Speed Display Board
Machine Sizes (LWH)	1050x1150x1070 mm
Machine Weight	270 kgs

Touch Screen

You can set all parameter in touch screen, such as the length, batch quantity, total quantity, cutting speed, etc.

It's convenient for workers to operate the machine.

Sticker sheeter

Rubber roller to feed material

The rubber roll is connected with servo motor, which could feed material with high precision, reach ± 0.1mm.

Cutting Blade

Material: SKH-51
Original: Japan
Lifetime: About 20 million times cuts.

Scissor-type cutting blade, durable with highest hardness 65HRC. Easy to adjust, sharp, maintain and change.

Roll to sheet cutting machine

We provide below optional parts, you may choose to install on the cutting machine, and also we offer the customization service based on your requirement.

- Photo sensor: cutting material at a specified position.

- Kiss cutting unit: half cut

- Automatic unwinding device

Photo Sensor

If added photo sensor for cutting machine, it can cut the printed material. The photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.

Kiss cutting

Material: Utility knife and fixture
This unit can finish kiss cutting .Below anvil is connected with springs, which could absorb shock and make sure the kiss cutting
well. Easy to adjust and maintain.

Automatic unwinding device

This unwinding device is controlled by motor, you can adjust the speed.
It has sensor to send the material automatically. It could supports about 30KG weight. inflatable air shaft with 3 inch OD.

Product Application

Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas.

After Sales Service

- Every customer can get one piece of English operation manual, a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
