Product Description
Product Description

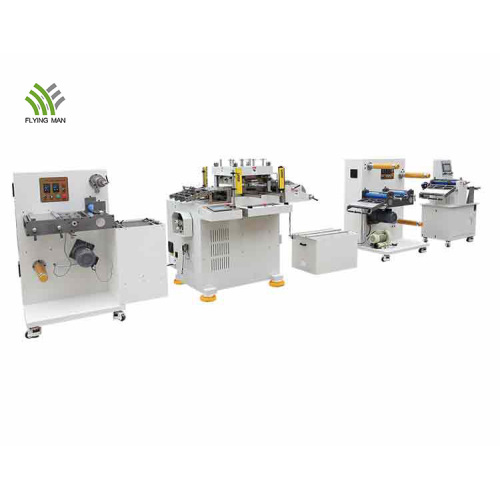

High Speed Precision Electronic label die-cutting machine line


Flying Man series die cutting machine is mainly used for backlight production lines, CNC hole position production line, specialized for multiple hole position die cutting products, use Japanese servo motor, touch screen control panel and PLC program control, combined the technology of the United States, Japan, South Korea, Taiwan made high precision die-cutting machine, the die cutting on the market has been very widely used, especially suitable for the repeatedly die cutting technology of complex product.

Unwinding Stand Die Cutting Machine 20

Industry Highest Performance Characteristics

- Perfect flatness, it can kiss cut to 0.025 mm base material.

- Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.

- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.
- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.
- With process saving function, the speed adjustment time is shortened.
- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.
- All the same mold are common and can be interchangeable conveniently with the same type of equipment.

- The operation interface is extremely simple and easy to use.


Product Parameters

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE



Model
ENZO-350
Maximum Feeding Speed
30 mm/min
Press Force
10T
Feeding Accuracy
< 0.1 mm
Cutting stroke
28 mm
Feeding Roller
PU/NBR
Maximum Running Speed
220 times/min
Feeding Driven
Servo Motors
Stroke Adjustment
±5 mm
Lubricate method
Fully Automatic Central Lubrication System
Shut Height of Stell Mould
115 mm
Protection
3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)
300 x 290 mm
Power Supply
380v 5kw
Turning Way
Electrically Adjust
Machine Weight
2000 kgs
Press Style
Jog/Single/Continuous
Air Source Specification
0.5-0.6 mpa
Type of Mould
Plastic board mould, Chemical sculpture mould, Metal mould
Maximum size of mode(L*W)
350 x 350 mm
Maximum Feeding width
350mm
Machine Size (L*W*H)
1700 x 1150 x 1500 mm

1. Independent Feeder
 -  Unwinding diameter of 600 mm, adjustable tension.
 -  Have sheet laying table.
 -  Laminating function. adjustable tension.
 -  Photoelectric switch controls discharge.

 -  Own cushion box with suction when discharge.

Unwinding Stand 1


2. 350mm High Precision Die Cutting Machine (Host)

Flying Man Enzo 350 High Precision Die Cutting Machine 2

3. Independent Rewinding Machine
 - Rewinding diameter of 600 mm, adjustable tension.
 - Can be equipped with a simple cutting device, winding up and down shaft, tension adjustable.
 - Adjustable tension of waste discharge.

Unwinding Stand Die Cutting Machine 23

Product Application

Flying Man precision die cutting machine is applicable to die cut self adhesive labels, Dacron film labels and laser anti-false labels with high speed and high precision.


Flatbed die cutting machine application 2

Technical Service

- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
process control
How to assemble flatbed die cutting machine

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.
Die cutting machine delivery
Die cutting machine supplier


Die cutting machine Manufacturer
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.

Q: What are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines, unwinding and rewinding machine and printing machines.

Q: Which industries can use your machines?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, unwind and rewind, die cut raw materials can use our machines. Mainly used for material before and after cutting, packing and/or printing.

Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
