Product Description

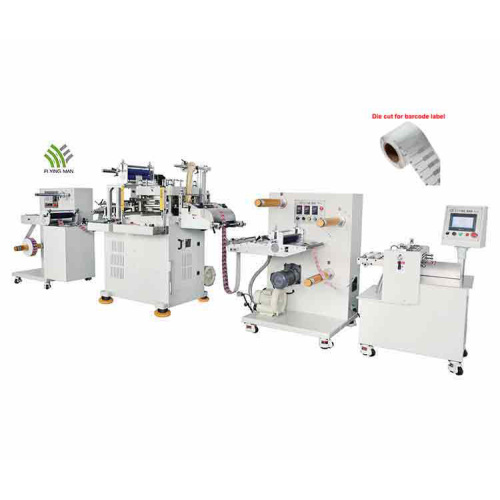

Hot Foil Stamping and Die Cutting Machine

Flying Man series die cutting machine is mainly used for backlight production lines, CNC hole position production line, specialized for multiple hole position die cutting products, use Japanese servo motor, touch screen control panel and PLC program control, combined the technology of the United States, Japan, South Korea, Taiwan made high precision die-cutting machine, the die cutting on the market has been very widely used, especially suitable for the repeatedly die cutting technology of complex product. The main engine adopts intermittent lubrication with centralized oil supply, and the oil is circulated inside the machine. The main moving parts are fully lubricated during working，and the environment of the dust-free workshop is not polluted.

Hot Stamping Die Cutter 2

Industry Highest Performance Characteristics

- Perfect flatness, it can kiss cut to 0.025 mm base material.

- Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.

- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.

- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.

- With process saving function, the speed adjustment time is shortened.

- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.

- All the same mold are common and can be interchangeable conveniently with the same type of equipment.

- The operation interface is extremely simple and easy to use.

Product Parameters

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE (HOST)
Model	ENZO-350	Maximum Feeding Speed	30 mm/min
Press Force	10T	Feeding Accuracy	< 0.1 mm
Cutting stroke	28 mm	Feeding Roller	PU/NBR
Maximum Running Speed	220 times/min	Feeding Driven	Servo Motors
Stroke Adjustment	±5 mm	Lubricate method	Fully Automatic Central Lubrication System
Shut Height of Stell Mould	115 mm	Protection	3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)	300 x 290 mm	Power Supply	380v 5kw
Turning Way	Electrically Adjust	Machine Weight	2000 kgs
Press Style	Jog/Single/Continuous	Air Source Specification	0.5-0.6 mpa
Type of Mould	Plastic board mould, Chemical sculpture mould, Metal mould	Maximum size of mode(L*W)	350 x 350 mm
Maximum Feeding width	350mm	Machine Size (LWH)	1700 x 1150 x 1500 mm

1. Independent Feeder/Rewinding Machine
- Unwinding diameter of 600 mm, adjustable tension.
- Have sheet laying table.
- Laminating function. adjustable tension.
- Photoelectric switch controls discharge.

Unwinding Machine 3

2. 350mm High Precision Die Cutting Machine with Hot Stamping Device (Host)

Unwinding Stand Die Cutting Machine 22

3. Independent Rewinding Machine
- Rewinding diameter of 600 mm, adjustable tension.
- Can be equipped with a simple cutting device, winding up and down shaft, tension adjustable.
- Adjustable tension of waste discharge.

Rewinding Machine 1

Optional equipment and devices
- High-speed & chasing color slicing machine: color sensor traces to cut, with product discharge conveyor belt and conveyor.

This label sheeter machine can be online or can be used independently.

Product Application

Flying Man precision die cutting machine is applicable to die cut self adhesive labels, Dacron film labels, laser anti-false labels, EMI Insulating material and EMI foam with high speed and high precision.

Hot Stamping Die Cutting Machine

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.

FAQ

Q: Are you a factory or trading company?

A: We are a factory and manufacturer.

Q: What are your main products?

A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines, unwinding and rewinding machine and printing machines.

Q: What's the trade term?

A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
