High Precision Multi-layer Film Laminating Machine

High Precision Multi-layer Film Laminating Machine

Get Latest Price

Transportation:: Ocean, Land, Air

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50 pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
Certificate:	CE
HS Code:	8420100090
Transportation:	Ocean,Land,Air
Port:	Main port, China

Product Description

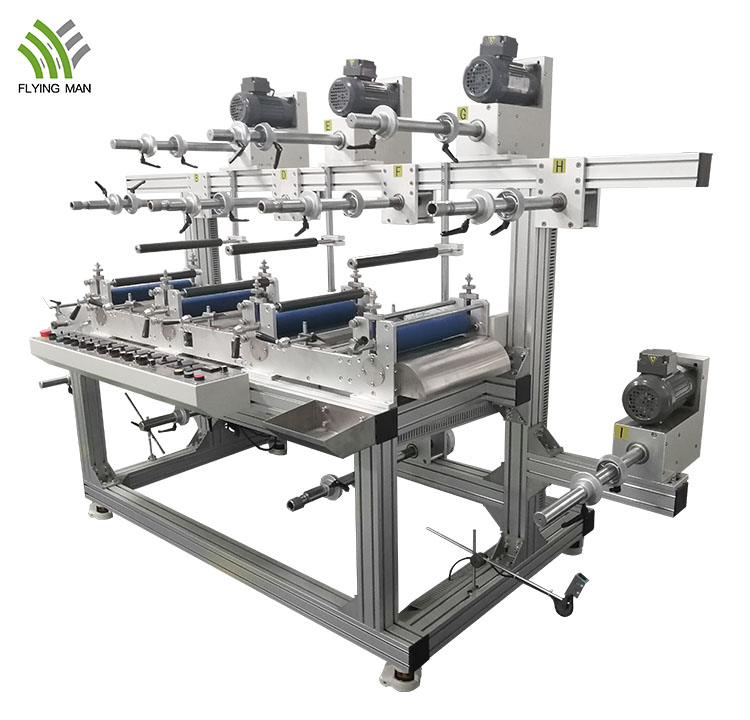

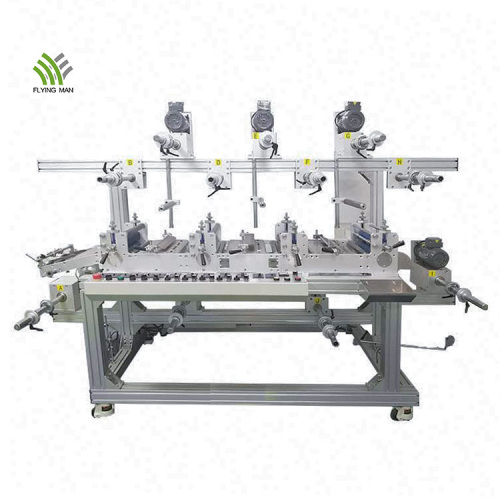

High Precision Multi-layer Film Laminating Machine

Flying Man high precise four position cold laminating machine is the special compound equipment for the adhesive tape products of the electronic label industry such as mobile phone, computer, LDC. Magnetic powder tension control is used for winding and unwinding.

This high precision lamination machine can compound single, double - sided adhesive tape, with the function of receiving paper, can be multiple at the same time. The merge has the function of local lamination.

Feature

- The working width up to 360mm/420mm.

- The laminating positioning precision can less than ±0.15mm.

- The reel is controlled by magnetic powder tension.

- Each parts independently speed control, tension control, easy to operate.

- Stop automatically once materials were run out or cut off.

- Multiple sets of waste discharge shaft.

- The material position can be adjusted laterally, and the position of unwinding and rewinding is adjustable.

- Several stripes can be laminated at the same time.

- It can connect with other machines to work. Usually cooperate with die cutting machine or cutting machine to make up production line.

Working process

Feeding-laminating-waste discharging-laminating-waste discharging-laminating-waste discharging-laminating-waste discharging-laminating-rewinding (11 shafts)

Product Parameters

SPECIFICATIONS FOR THREE-SEATER AUTOMATIC LAMINATING MACHINE
Model	GTO-360-4
Laminating speed	300-1800 meters/hour
Laminating accuracy	<±0.15mm
Unwinding Shaft (sets)	6
Rewinding Shaft (sets)	5
Power	1.85kw
Voltage	220v
Counter	Meter counter + Speed Display Board
Machine Sizes (LWH)	2700 x 1300 x 1750mm
Machine Weight	500kg

We provide below optional parts, you may choose to install on the laminating machine, and also we offer the customization service based on your requirement.

- LED lighting.

- Feeding shaft with swing Angle function.

- Automatic stop sensor of unwinding.

- Air-expansion shaft replace plain shaft of unwinding and rewinding.

- Add air-expansion shafts.

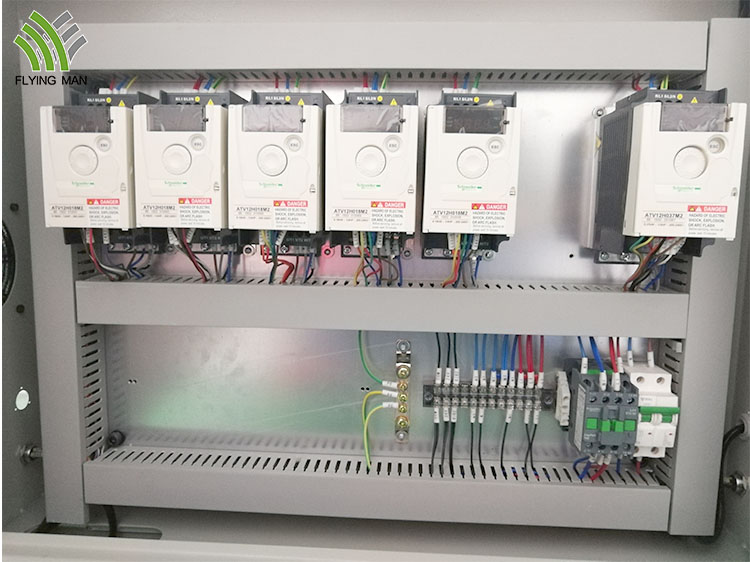

Control Panel

Each parts independently speed control, tension control, easy to operate.

Cold lamination machine

Product Application

This machine is a special equipment for the adhesive tape products of mobile phone, computer, LCD and other electronic label industrial. It can be combined with single and double-sided adhesive. It is suitable for laminating and rewinding PET, PE, EVA, PVC, electrostatic membrane, double-side adhesive tape, strips, 3M tape, aluminum foil, copper foil, conductive fabric, foam and etc.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

High precision lamination machine manufacturer
