Multi layer Laminating Machine for electric labels

Multi layer Laminating Machine for electric labels

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shanghai port, China, Ningbo port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	30 pcs/month
Supply Ability:	30 pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE certification
HS Code:	8420100090
Transportation:	Ocean,Land,Air
Port:	Shanghai port, China,Ningbo port, China

Product Description

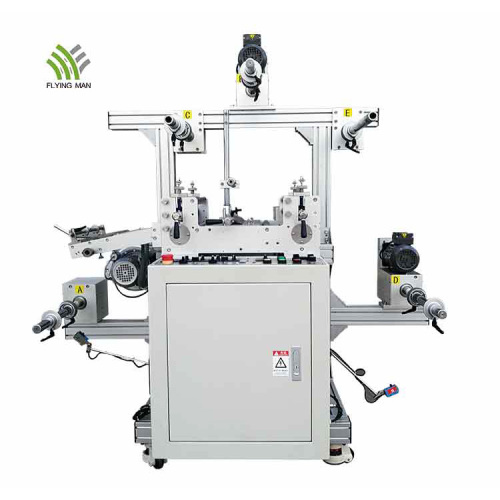

Multi layer Laminating Machine for electric labels

Flying Man multi layer laminating machine is the special compound equipment for the adhesive tape products of the electronic label industry such as mobile phone, computer, LDC. Magnetic powder tension control is used for winding and unwinding.

This multi-layer laminator can compound single, double - sided adhesive tape, with the function of receiving paper, can be multiple at the same time. The merge has the function of local lamination.

Feature

- The working width up to 360mm/420mm.

- The laminating positioning precision can less than ±0.15mm.

- The reel is controlled by magnetic powder tension.

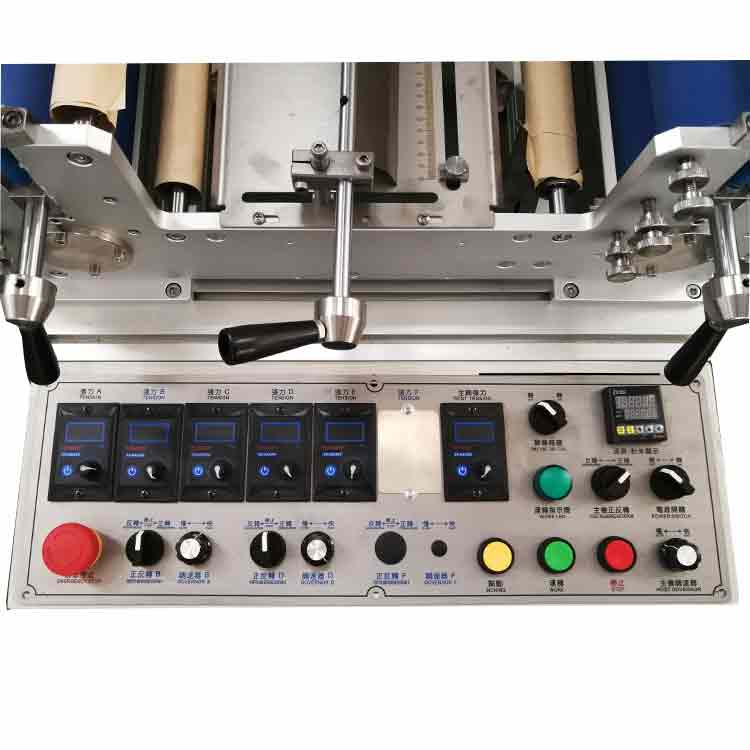

- Each parts independently speed control, tension control, easy to operate.

- Stop automatically once materials were run out or cut off.

- Multiple sets of waste discharge shaft.

- The material position can be adjusted laterally, and the position of unwinding and rewinding is adjustable.

- Several stripes can be laminated at the same time.

- It can connect with other machines to work. Usually cooperate with die cutting machine or cutting machine to make up production line.

Working process

Feeding-laminating-waste discharging-laminating-waste discharging-winding (5 shafts)

Product Parameters

SPECIFICATIONS FOR TWO-SEATER AUTOMATIC LAMINATING MACHINE
Model	GTO-360-2
Laminating speed	300-1800 meters/hour
Laminating accuracy	<±0.15mm
Unwinding Shaft (sets)	3
Rewinding Shaft (sets)	2
Power	1.25kw
Voltage	220v
Counter	Meter counter + Speed Display Board
Machine Sizes (LWH)	1700 x 1000 x 1700mm
Machine Weight	300kg

We provide below optional parts, you may choose to install on the laminating machine, and also we offer the customization service based on your requirement.

- LED lighting.

- Feeding shaft with swing Angle function.

- Automatic stop sensor of unwinding.

Product Application

This machine is a special equipment for the adhesive tape products of mobile phone, computer, LCD and other electronic label industrial. It can be combined with single and double-sided adhesive. It is suitable for laminating and rewinding PET, PE, EVA, PVC, electrostatic membrane, double-side adhesive tape, strips, 3M tape, aluminum foil, copper foil, conductive fabric, foam and etc.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.

FAQ

Q: Are you a factory or trading company?

A: We are a factory and manufacturer.

Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.

Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines, unwinding and rewinding machines and printing machines.

Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, unwind and rewind, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.

Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.

Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
