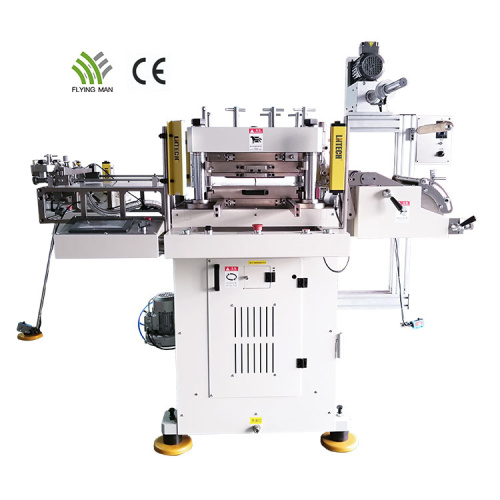

Automatic high speed adhesive label die cutting machine

Automatic high speed adhesive label die cutting machine

$27150.00

1-2 Piece/Pieces
$26750.00

≥3 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	20pcs/month
Supply Ability:	20pcs/month
Payment Type:	L/C,T/T,Negotation
Incoterm:	FOB,CFR,CIF,EXW,DAF
Certificate:	CE
HS Code:	8441100000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

Automatic high speed adhesive label die cutting machine with optical sensor and waste discharge device

Flying Man high speed precision die cutting machines adopt Mitsubishi brand motors and PLC, Schneider brand Low voltage electrical apparatus and power supply which make the machine more stable; Precise printed label die cutting machine has below advantages: high speed, precision and stable performance characteristics, Unique hole positioning and timely correcting function to ensure repeated die-cutting and accurate positioning, punching accuracy control within 0.03mm, kiss cut base material up to 0.025mm precision.

Industry Highest Performance Characteristics

- Perfect flatness, it can kiss cut to 0.025 mm base material. - Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.

- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.

- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.

- With process saving function, the speed adjustment time is shortened.

- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.

- All the same mold are common and can be interchangeable conveniently with the same type of equipment.

- The operation interface is extremely simple and easy to use.

Label Die Cutting Machine With Waste Discharging Device Small

Product Parameters

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
Model	ENZO-350W	Maximum Feeding Speed	30 m/min
Press Force	10T	Feeding Accuracy	< 0.1 mm
Cutting stroke	28 mm	Feeding Roller	PU/NBR
Maximum Running Speed	220 times/min	Feeding Driven	Servo Motors
Stroke Adjustment	±5 mm	Lubricate method	Fully Automatic Central Lubrication System
Shut Height of Stell Mould	115 mm	Protection	3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)	300 x 290 mm	Power Supply	380v 5kw
Turning Way	Electrically Adjust	Machine Weight	2000 kgs
Press Style	Jog/Single/Continuous	Air Source Specification	0.5-0.6 mpa
Type of Mould	Plastic board mould, Chemical sculpture mould, Metal mould	Maximum size of mode(L*W)	350 x 350 mm
Maximum Feeding width	350mm	Machine Size (LWH)	1700 x 1550 x 1500 mm

Die cutting station

This unit is used to die cut material, you can install the die from here. When material passed, it pouch and die cut the products.

The speed is adjustable, the depth and force is adjustable too.

Label die cutting machine

Touch screen

You can set all parameter in touch screen, the length batch quantity ,total quantity, die cutting speed, etc. It's convenient for workers to operate.

Safety protection

There are four electronic protection light curtains around the machine. Once there is anything materials, such as the operator's hand enters the sensing range, the machine will stop working immediately.

flat bed die cutter for label

Waste rewinding device

Adding waste rewinding device and control panel to control the rewinding tension and speed.

Label flatbed die cutting machine

Suction device and color mark sensor

Add suction device to suck the feeding material, and add color mark sensor to color chasing for the printed label or sticker.

Product Application

Our machines are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD, TV, Medical, Camera, Wearable, E-label, Car and printing etc.
This die cutting machine is applicable to die cut self adhesive labels, Dacron film labels and laser anti-false labels with high speed and high precision.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
