High precision CNC corrugated cardboard cutting machine
$18900.00 - $25900.00/Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean
- Port:
- Main port, China
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 50pcs/month |
| Supply Ability: | 50pcs/month |
| Payment Type: | L/C,T/T,Negotation |
| Incoterm: | FOB,CFR,CIF,EXW,DAF |
| HS Code: | 8441100000 |
| Transportation: | Ocean |
| Port: | Main port, China |
Product Description
Product Description
High precision CNC corrugated cardboard cutting machine
Automatic CNC corrugated cardboard cutting machine is used for the shape cutting of the sheet, it does not need any mold; Through the system software to control, and then directly to the product cutting, as long as the operating platform set up the corresponding parameters, the computer transmission of the corresponding instructions to the cutting machine; Cutting machine on the basis of the accepted design drawings for rapid cutting, high automation procedures; Easy to operate.
It is the cutting equipment used in many industries.

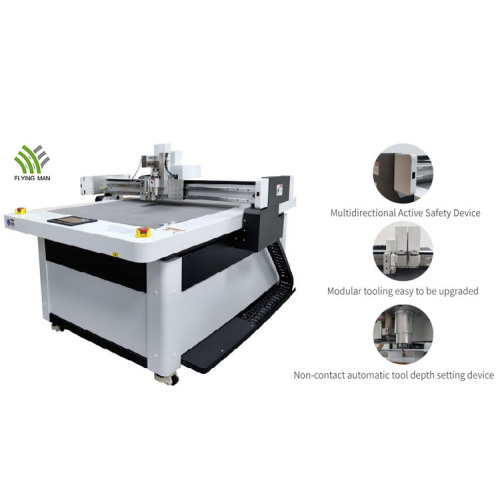

Characteristics
- 9-Axis Independent Motion Controller (5-Axis Linkage)+Multithread Real-time Embedded Control System, Indentation, Half-Break, Full-Break, Dotted Line, V-Cut, Milling Cutter, All digital adjustments.
- Non-contact automatic tool depth adjustment system does not damage the tool tip and makes tool depth setting easier.
- Active safety devices, with sensors in all range to ensure maximum safety.
- Using German IGUS towline cable to ensure the reliability of the cable in motion.
- Integrative Aluminum Honeycomb Adsorption Platform with mechanical adjustment platform leveling ,software. real-time compensation platform leveling function to effectively ensure the leveling of cutting platform.
- Using Taiwan gear rack and linear guide rail to ensure the stability and accuracy of equipment movement.
- Auto-zoning suction can effectively ensure the suction power on small cut piece.
- Modular tooling design, can be equipped with a variety of head and cutting tools to meet the cutting of various materials.
- CCD position registration system enable outline cut of print matters, reverse cutting of prints,multi array alignment cutting (option).
Product Parameters
|
SPECIFICATIONS FOR HIGH PRECISION FLATBED CNC DIGITAL CUTTING MACHINE
|
|
|
|
|
||||
|
Model
|
ACM1007
|
ACM1410
|
ACM1813
|
ACM2516
|
||||
|
Cutting Size
|
1000x700mm
|
1400x1000mm
|
1800x1300mm
|
2500x1600mm
|
||||
|
Measurement
|
1800xl400xl300mm
|
2200xl700xl300mm
|
2600x2000xl300mm
|
3300x2300xl300mm
|
||||
|
Interface
|
7-inch Resistance Touch Screen
|
|
|
|
||||
|
Capacity
|
4GB
|
|
|
|
||||
|
Cut speed
|
Max. 1000mm /s
|
|
|
|
||||
|
Cut thickness
|
0.1mm - 30mm (up to 60mm)
|
|
|
|
||||
|
Cutting accuracy
|
1000mm tolerance土0.1mm
|
|
|
|
||||
|
Repeat accuracy
|
≤1mm
|
|
|
|
||||
|
Min circle dia.
|
≥3mm(According to the material will be different)
|
|
|
|
||||
|
Control system
|
9-Axis Independent Motion Controller +Multithread Real-time Embedded Control System
|
|
|
|
||||
|
Driving system
|
Panasonic Digital Servo in Japan
|
|
|
|
||||
|
Driving mode
|
Taiwan YYC gear rack, PMI linear guide, ball screw pair
|
|
|
|
||||
|
Towline cable
|
German IGUS
|
|
|
|
||||
|
Electrical
|
Schneider / OMRON / MEANWELL / AirTAC
|
|
|
|
||||
|
Platform
|
Honeycomb aluminium sheet
|
|
|
|
||||
|
Cutting mat
|
High permeability fibre mat(3), option Rubber mat(3)
|
|
|
|
||||
|
Cutting Head
|
Vibration frequency up to 17,000times per minute, standard non-contact automatic tool depth adjustment system
|
|
|
|
||||
|
Number of pens
|
Eight groups, drawing, indentation, half cutter, full cutter, V cutter(5), milling cutter (6)
|
|
|
|
||||
|
Counterpoint mode
|
Red Cross Line, option (CCD position registration system)
|
|
|
|
||||
|
Material Fixation
|
materials is fixed by suction with table segmentation to give maxi suction power on different zone(6)
|
|
|
|
||||
|
Number of partitions
|
2
|
2
|
3
|
4
|
||||
|
Instruction System
|
HP-GL compatible format, software resolution, 0,025, 0.01, 0.1, 1
|
|
|
|
||||
|
Software format
|
Adobe Illustrator、AutoCAD 、CorelDRAW、ArtiosCAD、CimPack、lmpactCAD、DraftSightCAD
|
|
|
|
||||
|
Transport interface
|
RJ45 network port, one-to-many and many-to-one communication, maximum transmission distance of 100 meters
|
|
|
|
||||
|
Voltage/Frequency
|
AC 220V土10% 50/60土lHz
|
|
|
|
||||
|
Power
|
MAX. 3KW
|
MAX. 1.5KW
|
MAX. 1.5KW
|
MAX. 1.5KW
|
||||
|
Requirements
|
16A(STD 2.5mm2)
|
10A(STD 1.5mm2)
|
10A(STD 1.5mm2)
|
10A(STD 1.5mm2)
|
||||
|
Suction pump power
|
AC220V l.6KW
|
AC380V 4KW
|
AC380V 5.5KW
|
AC380V 7.5KW
|
||||
(1) The cutting size will not be reduced when all cutters are used at the same time.
(2) Cutting speed and thickness depend on material properties.
(3) Consumables (not covered by warranty).
(4) The blade locking parts is consumable, not covered by warranty.
(5) The maximum V-CUT thickness of single motor head is 3.5mm, if material thickness over 3.5mm, needs to be upgraded to double motor head.
(6) Creasing, Partition adsorption, Milling system requires air compressor (at least 1HP/24L, provided by customer).
Optional domestic Japanese milling cutter Optional automatic feeding module,
length of Machine will increase after installation of the automatic feeding module, width will not change
Due to technical updates, the above parameters will change, please visit the official website for the latest parameters.
Total quick change system.
It is quick and easy to change tools to all kind of industrial tool.
High quality accessories
Driving system: Panasonic Digital Servo in Japan
Driving mode: Taiwan YYC gear rack, PMI linear guide, ball screw pair
Towline cable: German IGUS
Electrical: Schneider / OMRON / MEANWELL / AirTAC
Product Application
Flying Man precision CNC digital machine is suitable to cut honeycomb paperboard, corrugated paper, plastic corrugated paper, Grey Board paper, cardboard adhesive, plastic film, fibre corrugated, fiberboard composite and material, other artificial materials, EPE leather, Fabric, foam, EVA and etc.
Technical Service
- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.
Training service
Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.
After Sales Service
- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China. It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.
Q: Which industries can use your machines?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.
Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
