Integrated Coil Stock Cutting Machine
  • Integrated Coil Stock Cutting Machine
  • Integrated Coil Stock Cutting Machine
  • Integrated Coil Stock Cutting Machine
Integrated Coil Stock Cutting Machine
Integrated Coil Stock Cutting Machine
Integrated Coil Stock Cutting Machine

Integrated Coil Stock Cutting Machine

  • $2890.00
    1-5 Piece/Pieces
  • $2790.00
    ≥6 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Port:
Main port, China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 100pcs/month
Supply Ability: 100pcs/month
Payment Type: L/C,T/T,Negotiation
Incoterm: FOB,CFR,CIF,EXW,DAF
HS Code: 84477800000
Transportation: Ocean,Land,Air,Express
Port: Main port, China
Product Description
Product Description

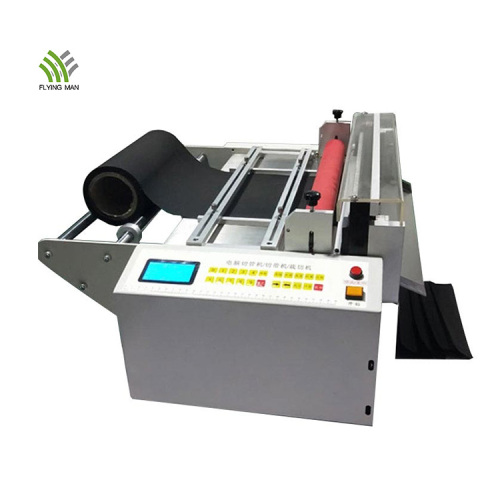

Integrated Coil Stock Cutting Machine


Flying Man Unitary Roll Materials Cutter uses microcomputer numerical control display device. This cutting machine of cutting length/quantity, feeding speed is set freely which adds adjustable roller feeding installation. Both sides of the Integrated Roll Materials Cutter automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.


Product Parameters

Name:

Fully automatic micro-computer cutting machine
Model:
 FMHZ-4700
Cutting Length:
 0.1 mm-9999.9 mm
Cutting Width:
 0 - 710 mm
Cutting Precision:
 0.1 mm
Feeding Speed:
 Adjustable, max. running 34 m/minute
Power:
 0.95 kw
Voltage:
 220 v
Machine Weight:
 85 kgs
Machine Size:
 575 x 965 x 375 mm
Feeding Motor:
 Stepper motor
Cutting Motor:
 250 W reducer motor
Feed Roller:
 PUR:roller diameter 48mm, hardness 35 degree, the hardness of the lower roller is 75 degree
Cutter Material:
 SKD11


Coil Stock Cutting Machine

Automatic Coil Stock Cutter


Roll Materials Cutting Machine

This Automatic Coil Stock Cutter has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources. Base on the advantages above, the Unitary Roll Materials Cutter will save a massive time for you.


Unitary Roll Materials Cutter

We provide not only this Integrated Coil Stock Cutting Machine but also other sheet cutting machines. Our hundred percent efforts, only for your very satisfaction.





Advantages & Features


- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.
Roll to sheet cutter
Multi-functional button
Cutting length & velocity can be preset randomly in advance, whilst one compensated function for adjusting length and velocity is installed, among them, button: +6 has the function to restore production.
High quality cutter
High quality adjusting steel blade
Special mechanical structure and high quality cutting blade, sharp blade and durable to ensure that the cutter flat, no burr.
Cutting machine
Two cooling fans
It is having the function for heat-sinking, deducing the heat form operation, benefit for keeping longtime of running and can prolong machine’s service life.


Feed roller

It is adopted new rubber materials to cast with good capacity for resisting pressure and abrasion as well as high temperature.



Product Application
Fully automatic micro-computerized cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc. This cutting machine system including FMHZ-400/FMHZ-500/FMHZ-600/FMHZ-700, cutting width from 1-710 mm, different model of cutting width is different, cutting thickness is also different. The maximum cutting thickness is 0.8 mm.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).
Automatic cutting machine application

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
