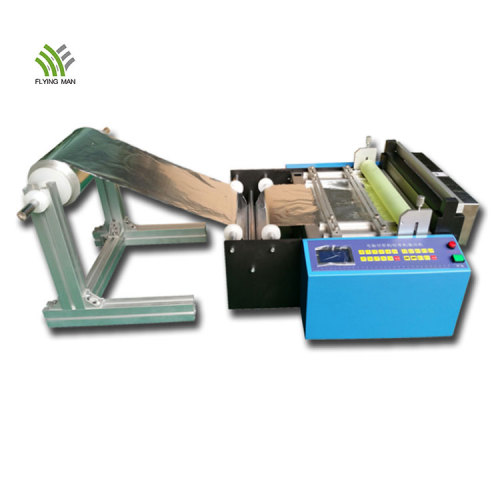

Desktop aluminum foil cutting machine

$2290.00

1-5 Piece/Pieces
$2190.00

≥6 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100pcs/month
Supply Ability:	100pcs/month
Payment Type:	L/C,T/T,Negotiaion
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8477800000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

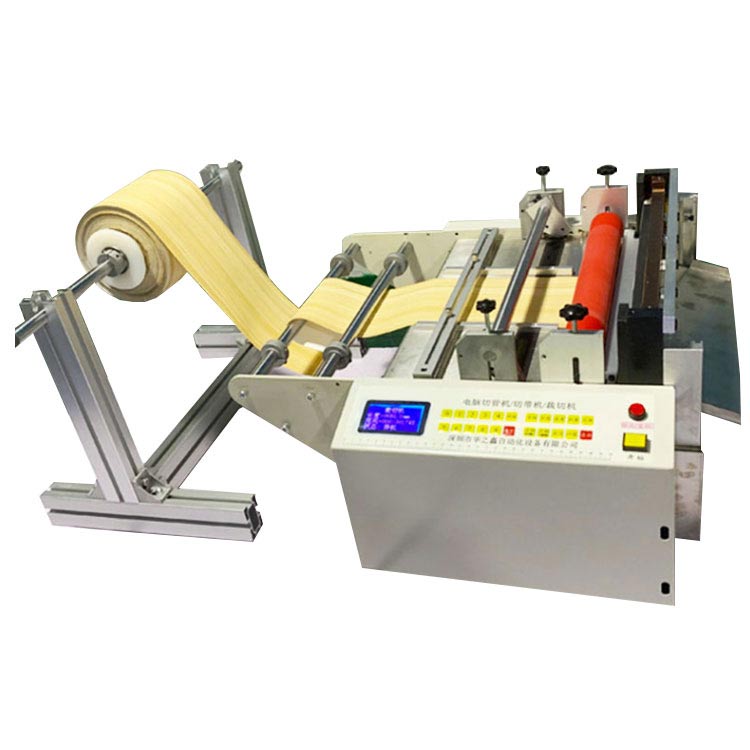

Desktop aluminum foil cutting machine

Flying Man automatic roll to sheet cutting machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism. This automatic roll to sheet cutter has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.

film cutting machine

Product Parameters

Fully automatic roll to sheet cutting machine
Model	FMHZ-500
Cutting length	0.1 mm-9999.9 mm
Cutting Width	0 - 510 mm
Cutting precision	0.1 mm
Feeding speed	Adjustable, max. running 34 m/minute
Power	0.75 kw
Voltage	220 v
Machine Weight	65 kgs
Machine size	575 x 765 x 375 mm
Feeding motor	Stepper motor
Cutting motor	250 W reducer motor

Feed roller	PUR: roller diameter 48mm, hardness 35 degree, the hardness of the lower roller is 75 degree
Cutter material	Imported SKD2 material blade

Performance Feature

Special cutting tools

Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

automated film cutting machine

Core technology

Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.

Timing, quantitative and fixed speed

The length and speed can be adjusted continuously to achieve high efficiency.
Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.

Set up automatic group accumulator and total accumulator count.

car window film cutting machine

Numerical control display device

This roll to sheet cutting machine adopts microcomputer numerical control display device, cutting length/quantity and feeding speed can be set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise and fall. With thimble type feeding mechanism, it can be fast feeding.

86 stepper motor

86 stepper motor ensure precise feeding, strong power, fast heat dissipation, speed, step length accurate control. And also ensure smooth/high precision cutting material with short time.
Advantages & Features

- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.

Multi-functional button

Cutting length & velocity can be preset randomly in advance, whilst one compensated function for adjusting length and velocity is installed, among them, button: +6 has the function to restore production.

High quality adjusting steel blade

Special mechanical structure and high quality cutting blade, sharp blade and durable to ensure that the cutter flat, no burr.

Two cooling fans.

It is having the function for heat-sinking, deducing the heat form operation, benefit for keeping longtime of running and can prolong machine’s service life.

Product Application

Fully automatic roll to sheet cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc. This cutting machine system including FMHZ-400/FMHZ-500/FMHZ-600/FMHZ-700, cutting width from 1-710 mm, different model of cutting width is different, cutting thickness is also different. The maximum cutting thickness is 0.8 mm.

Automatic roll to sheet cutter is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
