Automatic ultrasonic ribbon cutter

$3200.00

1-5 Set/Sets
$3000.00

≥6 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8477800000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

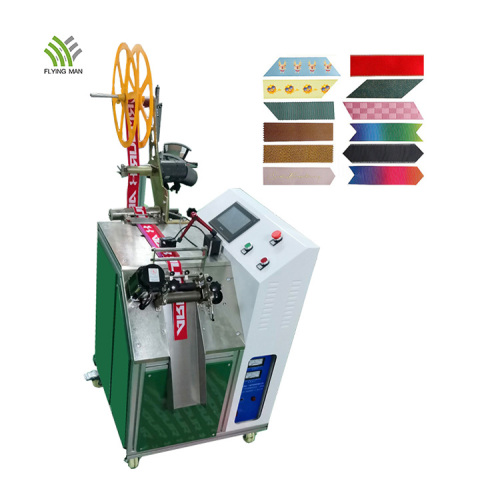

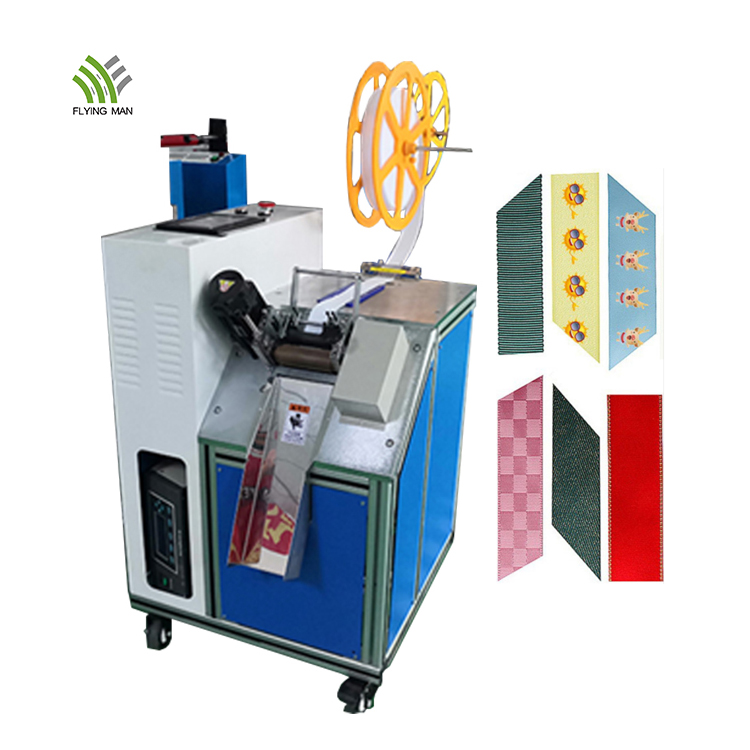

Automatic ultrasonic ribbon cutter

Flying Man automatic ultrasonic cutting machine adopts ultrasonic cutting, the cutting edge is neat and smooth, no burr, no loose edge, no black edge, good cutting effect.

Product Parameters

Fully automatic Ultrasonic Belt Cutting Machine
Model	FMUF-10018
Cutting length	0.1 mm-9999.9 mm
Cutting Width	1-95 mm
Cutting speed	110 pcs/minutes （for 50mm length）
Power	1.60 kw
Voltage	220V/50HZ
Ultrasonic Frequency	18KHZ
Machine Weight	95 kgs
Machine size	950 x 600 x 1250mm

Advantages & Features

- Multi functional: Cutting, embossing, punching, welding.
- Fast speed: High speed can produce 200, 000/day.
- Various functions: Fixed length, fixed quantity, fixed speed, single/double knife can be cut.
- Using ultrasonic cutting, the cutting edge is neat and smooth, no burr, no loose edge, no black edge, good cutting effect.
- Adopt PLC control, automatic feeding, computer counting, high precision, fast speed, free length adjustment, can be cut several pcs at the same time.
- Imported ultrasonic assembled, strong power, stable equipment performance.
- Easy operation: LCD screen, user-friendly operation interface, one button start/stop.

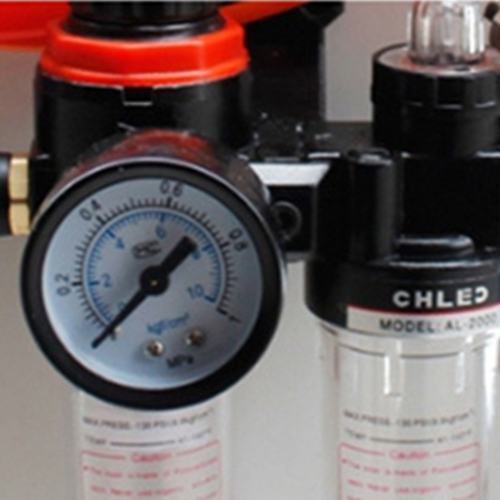

The air pressure intensity is 0.2-0.3 MPa.

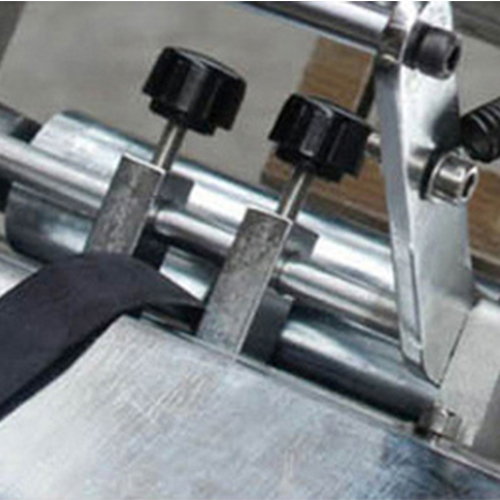

Titanium alloy feeding wheel, no skid, feeding precision, wear-resistant.

Rotary Ultrasonic 1

Rotary ultrasonic tool head.

Product Application

Fully automatic ultrasonic belt cutting machine can be used for cutting silk ribbon, webbing, Velcro, ribbon, non-woven fabric and other materials.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
