Automatic ATM Roll Cutting Rewinding Machine
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Main port, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 20pcs/month |
| Supply Ability: | 20pcs/month |
| Payment Type: | L/C,T/T,Negotiation |
| Incoterm: | FOB,CFR,CIF,EXW,DAF |
| HS Code: | 8441100000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Main port, China |

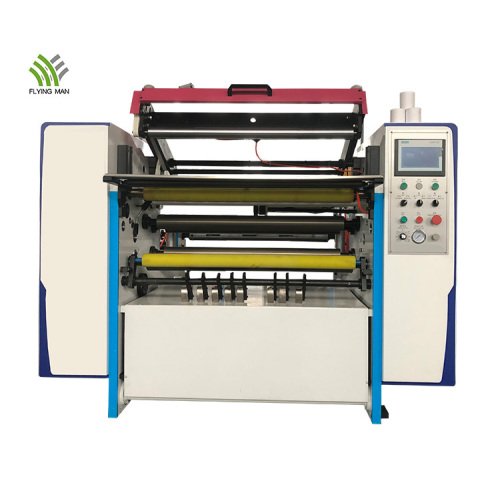

Flying Man JTSR-900 Automatic Thermal Paper Slitting Rewinding Machine is suitable for cutting and rewinding all kinds of thermal sensitive materials, such as fax paper, cash register paper, ATM paper, electrocardiogram, medical record paper, engineering drawings, art paper, non-carbon copy paper, computer bills, non-woven fabrics and other materials.
- Machine adopts Siemens PLC control system and touch screen, all the parameters are displayed on the monitor, and it will automatically work.
- The main motor adopts Siemens inverter motor, and frequency inverter control.
- The feeding part is controlled by Sheng bang motor separately, and the mechanical chain is used for automatic feeding.
- All transmission rollers have been dynamic/static balance treated, ensure the stability and accuracy of material transfer and cutting process.
- New imported arc roll flattening technology, each finished small roll has a certain gap, to ensure that no paper core winding does not bite paper, no tower shape, easy unloading.
- New marker marking device, controlled by high precision imported AirTAC pneumatic components.
- The machine adopts round knife cutting, equipped with waste edge automatic discharge device.
- The machine is equipped with SMC proportional valve, which can adjust the tightness of winding material well in the process of automatic inserting paper.
- Unwinding is equipped with automatic constant tension controller to maintain constant tension through inductor.
- Configure automatic meter recording function, when the set value is reached, the machine will stop automatically.
- 37mm wall panel CNC processing, ±0~20um high precision imported accessories assembly. The production of the whole machine is in the forefront of Chinese technology.
Product Parameters
SPECIFICATIONS FOR AUTOMATIC HIGH SPEED AUTOMATIC THERMAL PAPER SLITTER REWINDER
110 m/minute
Model
JTSR-900
Max. web width
900 mm
Max unwinding diameter
1100 mm
Max rewinding diameter
270mm
Machinery speed
Machine Weight
Around 1300kgs
Machine Sizes (L*W*H)
2000 x 1700 x 1500 mm
Optional Parts for Customer (Payable)
1. Automatic Paper Core Loading Machine: Speed is 15times/min.
2. Automatic Cutting and Gluing which Synchronous controlled by SIEMENS PLC
3. Automatic Roll Cut Off & Hammer Unit
4. Thermal Shrink Packing Machine
AUTOMATIC THERMAL PAPER ROLL SLITTING REWINDING MACHINE WHOLE LINE
Welcome to contact with us for more details about this production line: www.flyingmancuttingmachine.com
Product Application
JTSR-900 Automatic Thermal Paper Slitting Rewinding Machine is suitable for cutting and rewinding all kinds of thermal sensitive materials, such as fax paper, cash register paper, ATM paper, electrocardiogram, medical record paper, engineering drawings, art paper, non-carbon copy paper, computer bills, non-woven fabrics and other materials.
Training service
After Sales Service
- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
