Jumbo roll self adhesive tape slitting rewinding machine

Jumbo roll self adhesive tape slitting rewinding machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10pcs/month
Supply Ability:	10pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8477800000
Transportation:	Ocean,Land
Port:	Main port, China

Product Description

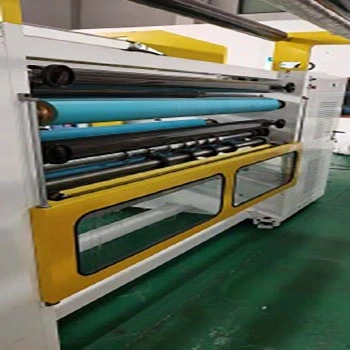

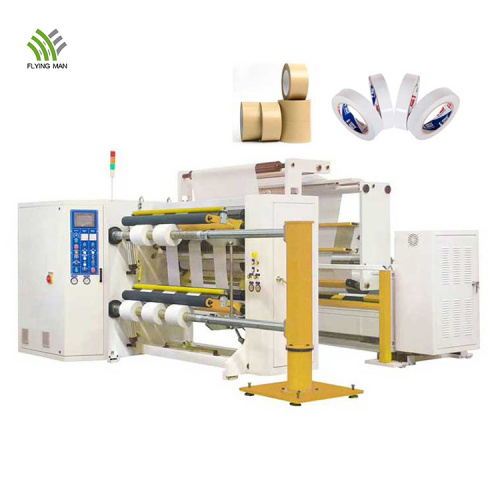

Jumbo roll self adhesive tape slitting rewinding machine

Flying Man automatic roll self adhesive tape slitting rewinding machine is suitable for slitting and rewinding PET/OPP/CPP/PE/PS/PVC and other single-layer plastic film, multi-layer plastic composite film, paper and other rolling materials.

High Speed Precision Slitting Rewinding Machine Small

Feature

- Entire machine is controlled by PLC, man-machine interface touch screen operation.

- Unwind adopts Taiwanese magnetic powder brake, tension is automatic(optional device: Italy RE pneumatic brake).

- Rewinds adopt 4 servo motors, tension is automatic controlled by PLC.

- Equipped with automatic rewind pushing function through robot arm.

- Unwind lift adopts shaft-less type. Save labor force and convenient.

Product Parameters

SPECIFICATIONS FOR AUTOMATIC HIGH SPEED SLITTING REWINDING MACHINE
Model	FMLQ-002 (1300 mm)	FMLQ-002 (1600 mm)
Max. width of raw material	1300 mm	1600 mm
Max Diameter of material	1200 mm
Max. machinery speed	300m/min
Max Diameter of rewinding	800 mm
Slitting precision	≤0.5 mm
Min slitting width	50 mm
Tower Power	33 kw	46 kw
Machine Sizes (LWH)	3200 x 3850 x 2200 mm	3500 x 3850 x 2200 mm
Machine Weight	4200 kgs	4800 kgs

Optional parts

- Other size cutting shaft It can be made as per the required core I. D.

- Cutting supporter for supporting log roll when cutting core below 38 mm.

- Auto blade grinder It can keep the blade sharp for easy operation.

- Safety cover to protect operator during the production which is compliant to the CE regulation.

Product Application

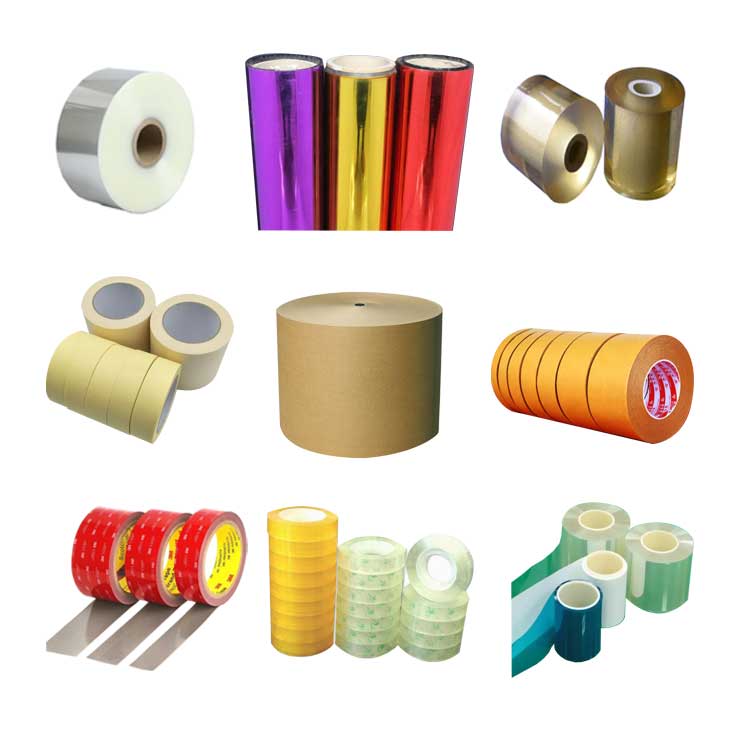

This machine is suitable for slitting papers and adhesive sticker, film and other material cutting and rewinding machine.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas.

After Sales Service

- Every customer can get one piece of English operation manual, a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.

FAQ

Q: Are you a factory or trading company?

A: We are a factory and manufacturer.

Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.

Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.

Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.

Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.

Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.

Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
