High precision Four Shaft roll materials cutting machine

High precision Four Shaft roll materials cutting machine

$20900.00 - $23900.00/Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8477800000
Transportation:	Ocean,Land,Air
Port:	Main port, China

Product Description

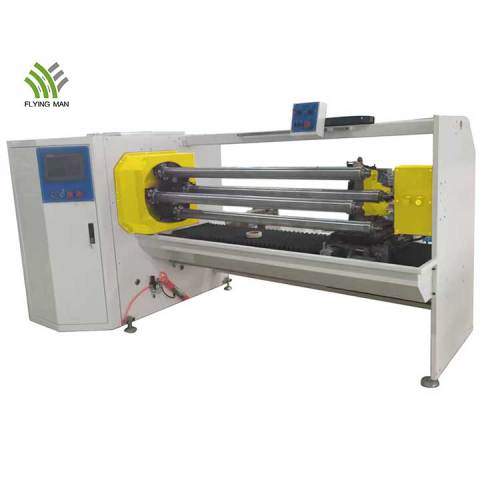

High precision Four Shaft roll materials cutting machine

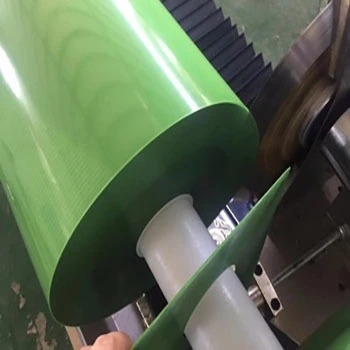

Flying Man four shaft roll materials cutting machine is mainly used to cut jumbo roll materials without unwinding the roll. It is workable to cut adhesive BOPP tape, PVC tape, PE tape, masking tape, double sides adhesive tape, foamed adhesive tape, cloth tape, surgical adhesive tape, industrial electrical tape, paper roll and PVC insulation roll and etc. Feature
Main driving part	Taiwan AC motor with inverter is employed
Central control unit	Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting
Operating panel	All functions are operated on the 10" LCD touch panel
Motor control system	The central control system is PLC programmable controller

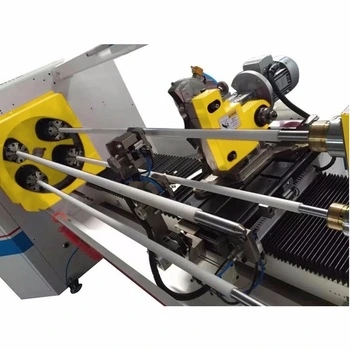

Cutting positioning system	Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat
Blade feeding positioning system	Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages

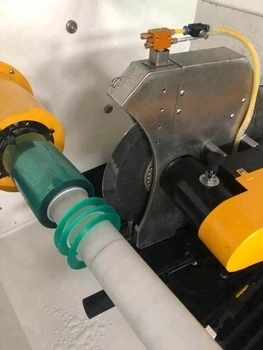

Auto angle adjustment of circular blade	Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°)
Quick shaft change system	Three kinds of shafts are available and quick change of shafts is applied for different materials

Product Parameters

SPECIFICATIONS FOR AUTOMATIC ROLL CUTTING MACHINE
Model	FMLQ-006 (1300 mm)	FMLQ-006 (1600 mm)
Machine shaft width	1300 mm	1600 mm
Cutting precision	±0.1mm
Max cutting O.D.	160 mm
Cutting core O.D.	1'' - 3''
Min cutting width	2 mm
Voltage	380 v /50 Hz
Machine Sizes (LWH)	3100x1600x1700 mm	3400x1600x1700 mm
Machine Weight	1800 kgs	2000 kgs

Round knife roll material slitting machine

Product Application

Suitable for cutting BOPP, PVC, PE, masking paper tape, imported high-grade double sided tape, Kraft tape, conductive foam tape, duct tape, industrial tape, protective film, etc.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas.

After Sales Service

- Every customer can get one piece of English operation manual, a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.

FAQ

Q: Are you a factory or trading company?

A: We are a factory and manufacturer.

Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China.
It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.

Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.

Q: Which industries can use your machines ?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.

Q: How to control the quality in your factory?
A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE Certification.

Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.

Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
