Automatic Paper Cutting Machine Roll to Sheet Cutter

Automatic Paper Cutting Machine Roll to Sheet Cutter

$690.00

1-5 Piece/Pieces
$650.00

≥6 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100pcs/month
Supply Ability:	100pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	84411000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

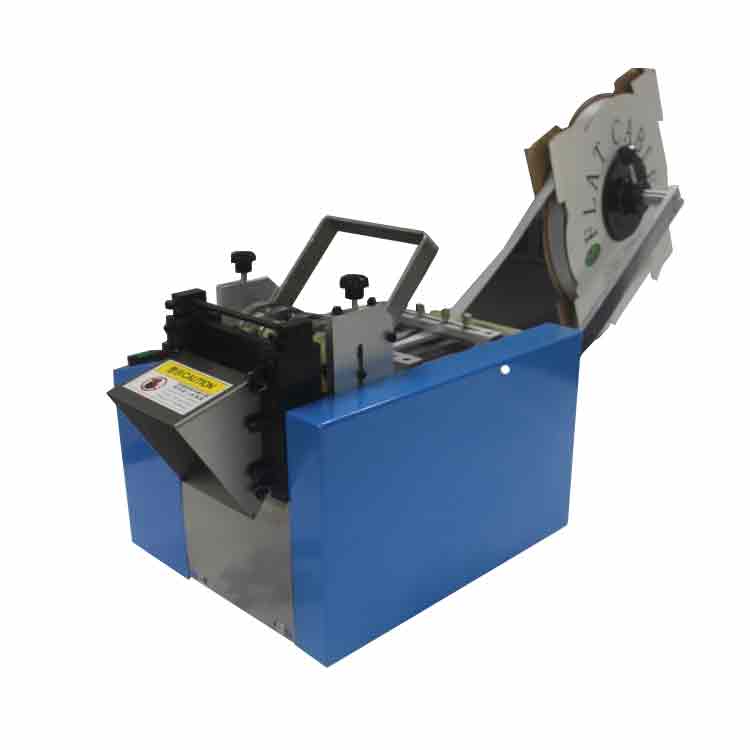

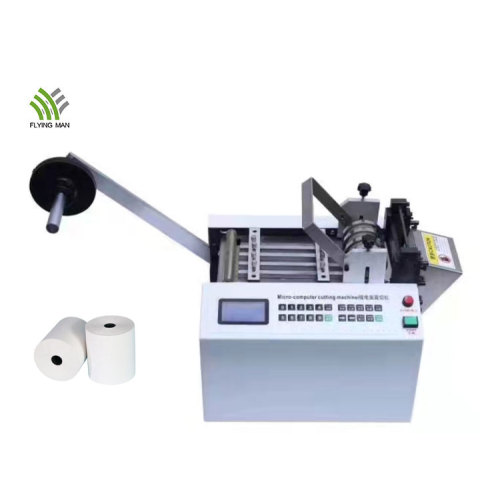

Automatic Paper Cutting Machine Roll to Sheet Cutter

Flying Man automatic paper cutting machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.

This automatic roll to sheet cutter has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.

Fmhz 100 Desc paper cutting machine

Product Parameters

Fully automatic paper cutting machine
Model	FMHZ-100	Feeding motor	86 stepper motor
Cutting length	0.1 mm-9999.9 mm	Cutting motor	40w AC gear motor
Cutting Width	0 - 90 mm
Feeding speed	Adjustable	Feed roller	PUR or Silicone （Choose the right roller according to the material）
Power	0.3 kw	Cutter material	High speed steel or Art knife (choose the right knife according to the material)
Voltage	110 v or 220 v
Machine Weight	29 kgs
Machine size	400 x 350 x 390 mm

Performance Feature

Special cutting tools

Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

Core technology

Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.

Timing, quantitative and fixed speed

The length and speed can be adjusted continuously to achieve high efficiency.
Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.

Set up automatic group accumulator and total accumulator count.

Numerical control display device

This automatic cutting machine adopts microcomputer numerical control display device, cutting length/quantity and feeding speed can be set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise and fall. With thimble type feeding mechanism, it can be fast feeding.

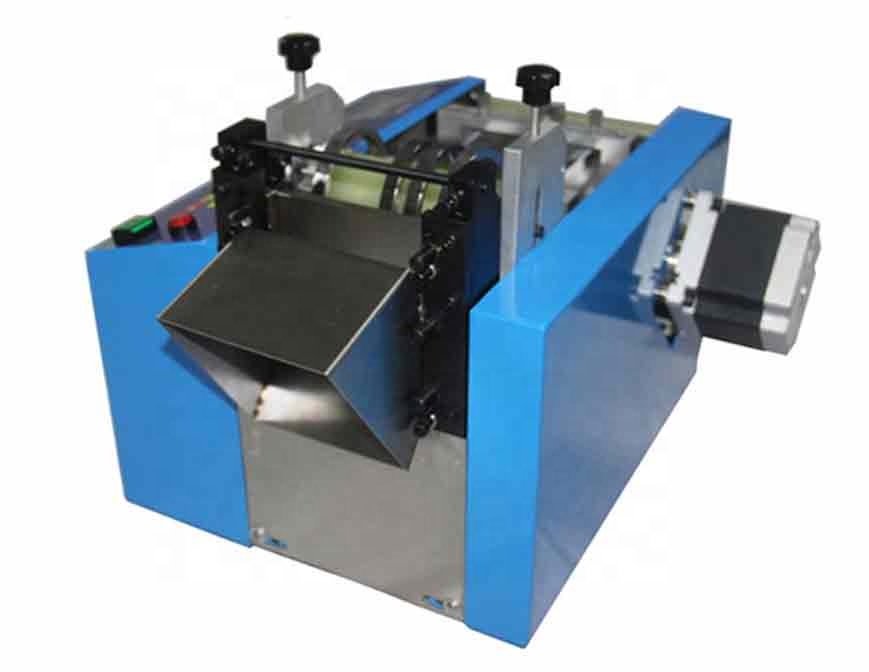

86 stepper motor

86 stepper motor ensure precise feeding, strong power, fast heat dissipation, speed, step length accurate control. And also ensure smooth/high precision cutting material with short time.

Save time and effort and materials.

Advantages & Features

- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.

Product Application

This automatic cutting machine is suitable to cut paper, film, heat shrinkable tube, glass fiber tubes, yellow wax tube, Velcro, nickel belt and so on (so also called: heat shrinkable tube cutting machine, glass fiber pipe cutting machine, yellow wax cutting machine, Velcro cutting machine, nickel belt cutting machine, computer cutting machine, automatic cutting machine, etc.) With the small body, it doesn't take up space and can increase production.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries.

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
