Automatic Window Film Cutting Machine

$6900.00

1-5 Set/Sets
$6700.00

≥6 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50pcs/month
Supply Ability:	50pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8477800000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

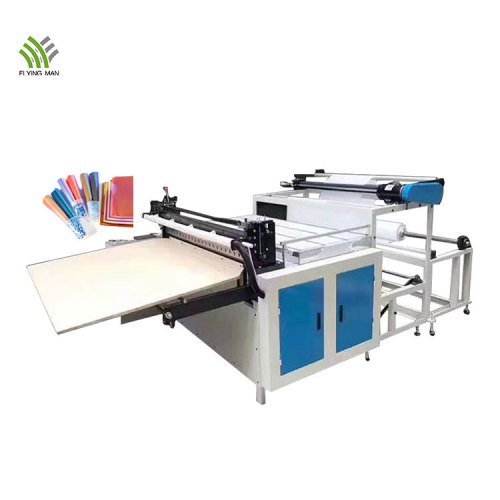

Automatic Window Film Cutting Machine/Roll to Sheet Cutting Machine

Flying Man automatic window film cutting machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.

This automatic roll to sheet cutting machine is suitable for transverse cutting of roll materials. This main electrical control system adopts computer stepping control, man-machine interface operation, dynamic display; The fixed length control is controlled by imported stepping motor system to ensure the cutting precision. This machine has advanced control mode. The speed of the main machine, imported stepper motor and feeding motor is controlled by the computer centrally to achieve synchronous operation. It has the advantages of high cutting precision, fast speed, convenient feeding and neat stacking.

This roll to sheet cutter has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, simple and practical, saving a lot of manpower and material resources.

Automatic Film Cutting Machine

Product Parameters

Fully automatic cross cutting machine
Model	FMHZ-800
Cutting length	5 mm-5000 mm
Cutting Width	0 - 710 mm
Cutting precision	±0.2 mm
Feeding diameter	1000 mm
Cutting speed	5-70 m/minute
Cutting thickness	0.05-0.6 mm
Cutting time	25-160 times/minute
Power	3.2 kw
Voltage	220 v/50 HZ
Machine Weight	600 kgs
Machine size	3300 x 1700 x 1180 mm

Advantages & Features

The structure is solid and beautiful, this machine has high degree of automation and computer control, frequency conversion speed

regulation and length, automatic counting, sound and light alarm, swing arm straightening and other functions.
- Stepper motor control length, high precision.
- Stepper motor direct braking and high stop.
- Automatic counting, countdown stop, automatic program high.
- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.

Machine configuration.

- Main motor (1 pc)
- Stepping motor (1 pc)
- Blade (1 set)
- electrostatic treater (1 set)
- Rear feeding motor (1 pc)
- Receiving material platform (1 pc)
- Blow motor (1 pc)
- Frequency converter (1 pc)

Control panel

English operation interface, the main electrical control system adopts computer step control (servo system control), cutting more efficient.

Fixed length control

Fixed length control with imported stepping motor system control, imported photoelectric eye, to ensure the cutting width and cutting precision.

High quality cutting knife

Imported high quality SK-11 fine steel cutting knife, to ensure that the incision is smoother, no burr! (we can be customized

according to customer requirement, cutting width from 800mm to 2000mm)

Film roll to sheet cutting machine

Product Application

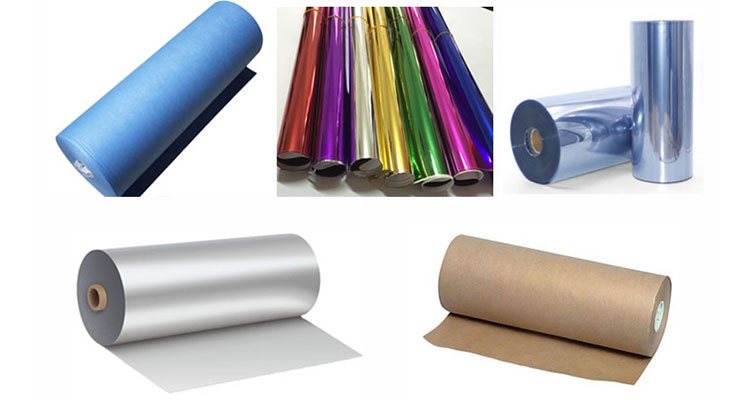

FMHZ Large size fully automatic cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines. Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
