Automatic cutting machine for PVC film

$1890.00

1-5 Piece/Pieces
$1790.00

≥6 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 pc/month
Supply Ability:	50 pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	841100000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China,

Product Description

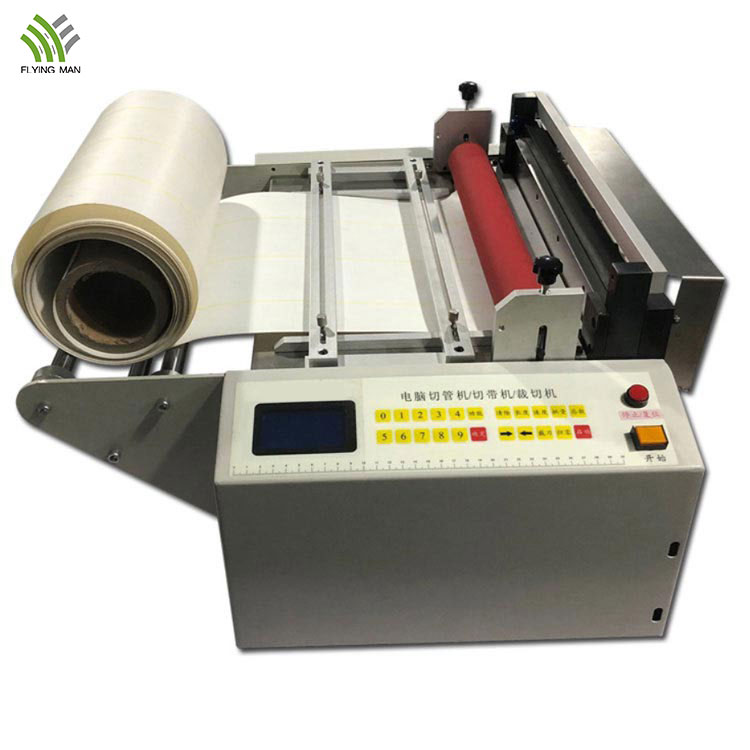

Automatic cutting machine for PVC film

Flying Man automatic PVC film cutter adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.

This auto roll to sheet cutting machine has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.

Automatic cutting machine

Product Parameters

Fully automatic micro-computer cutting machine
Model	FMHZ-400
Cutting length	0.1 mm-9999.9 mm
Cutting Width	0 - 410 mm
Cutting precision	0.1 mm
Feeding speed	Adjustable, max. running 34 m/minute
Power	0.65 kw
Voltage	220 v
Machine Weight	55 kgs
Machine size	640 x 670 x 360 mm
Feeding motor	Stepper motor
Cutting motor	250 W reducer motor
Cutter material	Imported SKD2 material blade
Feed roller	PUR: roller diameter 48mm, hardness 35 degree, the hardness of the lower roller is 75 degree

Performance Feature

1. Special cutting tools

Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.

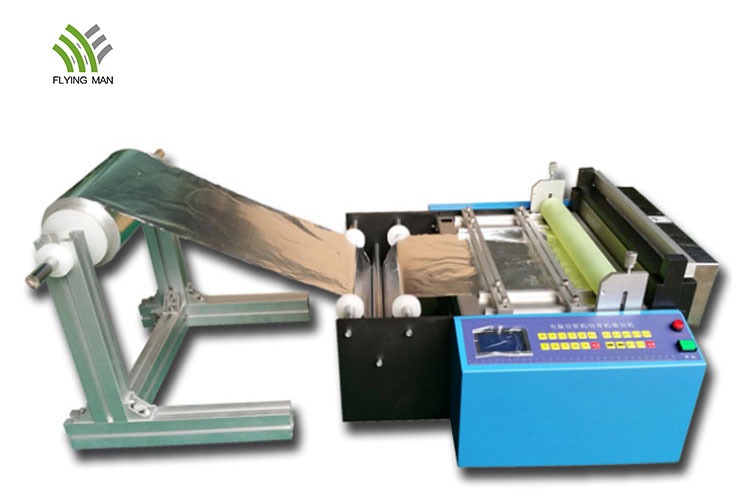

roll to sheet cutting machine

2. Core technology

Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.

3. Timing, quantitative and fixed speed

The length and speed can be adjusted continuously to achieve high efficiency.
Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.

Set up automatic group accumulator and total accumulator count.

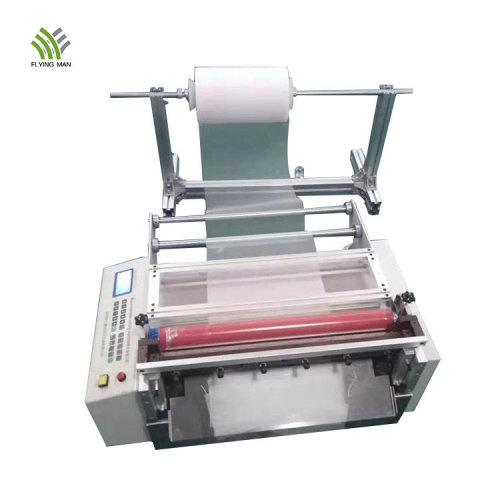

Desktop cutter

Numerical control display device

This machine adopts microcomputer numerical control display device, cutting length/quantity and feeding speed can be set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise and fall. With thimble type feeding mechanism, it can be fast feeding.

86 stepper motor

86 stepper motor ensure precise feeding, strong power, fast heat dissipation, speed, step length accurate control. And also ensure smooth/high precision cutting material with short time.
Save time and effort and materials.

Advantages & Features

- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.

Multi-functional button

Cutting length & velocity can be preset randomly in advance, whilst one compensated function for adjusting length and velocity is installed, among them, button: +6 has the function to restore production.

High quality adjusting steel blade.

Special mechanical structure and high quality cutting blade, sharp blade and durable to ensure that the cutter flat, no burr.

Two cooling fans.

It is having the function for heat-sinking, deducing the heat form operation, benefit for keeping longtime of running and can prolong machine’s service life.

Feed roller.

It is adopted new rubber materials to cast with good capacity for resisting pressure and abrasion as well as high temperature.

Product Application

Fully automatic micro-computerized cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc. This cutting machine system including FMHZ-400/FMHZ-500/FMHZ-600/FMHZ-700, cutting width from 1-700 mm, different model of cutting width is different, cutting thickness is also different. The maximum cutting thickness is 0.8 mm.

It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical

appliances, motors, toys, transformers and other industries (different materials have different requirements).
