Computer controlled brown paper Kraft paper cutting machine

Computer controlled brown paper Kraft paper cutting machine

$3390.00

1-5 Piece/Pieces
$3290.00

≥6 Piece/Pieces

Transportation:: Ocean, Land, Air, Express

Port:: Main port, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100pcs/month
Supply Ability:	100pcs/month
Payment Type:	L/C,T/T,Negotiation
Incoterm:	FOB,CFR,CIF,EXW,DAF
HS Code:	8441100000
Transportation:	Ocean,Land,Air,Express
Port:	Main port, China

Product Description

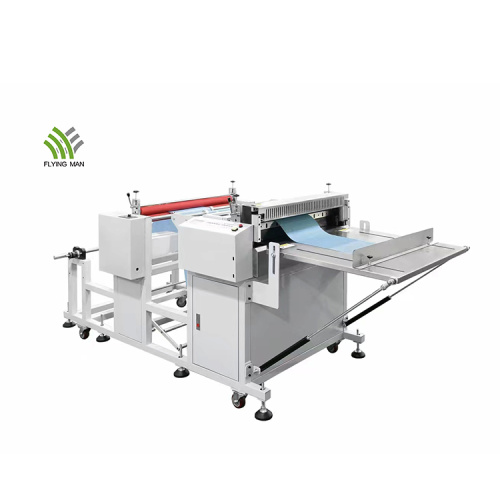

Computer controlled brown paper Kraft paper cutting machine

Flying Man computer controlled brown paper Kraft paper roll to sheet cutting machine adopts microcomputer numerical control display device, cutting length/quantity, feeding speed is set freely, add adjustable roller feeding mechanism, both sides automatically adjust the pressure and rise, can quickly release material, and prevent material damage effectively with thimble type feeding mechanism.

This paper sheeter has below advantages: high precision, low loss, model design in line with the principle of ergonomics, simple operation and high automation, saving a lot of manpower and material resources.

Automatic Paper Cutting Machine

Product Parameters

Fully automatic all-in-one roll materials cutting machine
Model	FMHZ-400A
Cutting length	0.1 mm-9999.9 mm
Cutting Width	0 - 400 mm
Cutting precision	0.1 mm
Feeding speed	Adjustable, max. running 36 m/minute
Power	1.2 kw
Voltage	220 v/50 HZ
Machine Weight	145 kgs
Machine size	1700 x 665 x 984 mm
Feeding motor	Stepper motor
Cutting motor	250 W reducer motor

Feed roller	PUR: roller diameter 48mm, hardness 35 degree, the hardness of the lower roller is 75 degree
Cutter material	SKD11

Advantages & Features

Flying Man Automatic roll to sheet cutting machine

- Special mechanical structure and special cutting tools, with professional software control to completely solve the problem of uneven incision and achieve the incision level/degree of accuracy.
- Independent development of the special cutting machine motion control system is the core technology, which is suitable for all industries equipment fixed-length cutting.
- Large screen LCD display, easy to operate, simple and convenient.
- High speed feeding, under microcomputer program control, material's accuracy can be up to 0.1mm.
- The length and speed can be adjusted continuously to achieve high efficiency.
- Cutter speed can be adjustable, high and low speed of cutting machine can be fully controlled.
- Set up automatic group accumulator and total accumulator count.
- Batch pause and delay time can be set.

Function description

- Power: 1.2kw
- Adjustable speed: 0-99mm
- Adjustable length: 0.1mm—9999.9mm
- Total amount set: 1—999999
- “Function” key + "0" key: cutting knife delay
- "Function" key + "1" key: cutting tool interval
- "Function" key + "2" key: Batch suspension
- "Function" key + "3" key: Length Compensation
- "Function" key + "4" key: Cutting speed
- "Function" key + "5" key: Setting step length

- "Function" key + "6" key: Restore the factory default Settings

Machine configuration

- 1 pc power code

- Spanner No. 3, No. 4, No. 5 (one for each)
- 1 pc back-up insurance control
- 1 pc instruction manual

Control panel

Control panel is very simple, simple operation, full Chinese/English LCD screen, easy to set the feeding length, speed, batch amount, pause time with compensation function, function key +6 can also restore production Settings and so on.

Kraft paper cutting machine

Feeding device

Stable, convenient, all-in-one, high precision, large load bearing material can be placed variety of roll materials to cut.

Feeding roller

It is made of the latest glue formula with excellent high strength compression resistance, wear resistance and high temperature resistance, so that the product is not easy to be scratched or crushed when conveying. It can also reduce the error of cutting.

Imported white steel knife

High performance adjusting steel knife, it's not easy to wear after special treatment, multiple screws fixed, no need to adjust
the knife.

Cooling fan

With the function of heat exhaust, these two cooling fans can reduce the heat of the machine for long time production and prolong the service life of the equipment.

Paper sheeter

Pressure regulating screw

The pressure regulating screw is used to control the pressure of feeding roller, and can directly control the precision of cutting.

Product Application

FMHZ series fully automatic micro-computerized roll to sheet cutting machine can be used for cutting non-woven cloth, wall paper, PVC film, reflective film, copper foil, aluminum foil, glass cloth, fiber cloth, mobile phone film, plastic slice, bubble film, flannelette and etc. Cutting width from 0.1-1100mm, different model of cutting width is different, cutting thickness is also different. The maximum cutting thickness is 0.8mm.
It is widely used in electronics industry, automobile and motorcycle parts industry, clothing and leather industry, electrical appliances, motors, toys, transformers and other industries (different materials have different requirements).

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation. - One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
