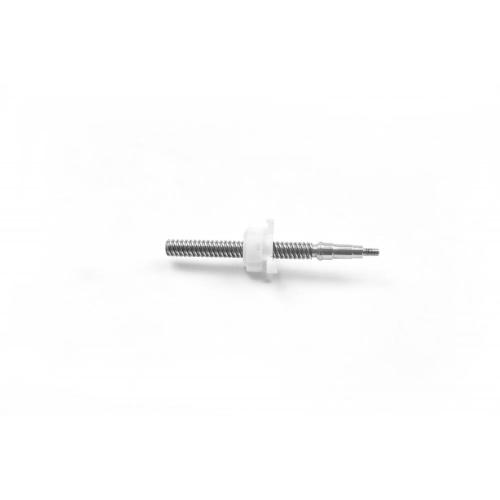

Trapezoidal Tr8X8 lead screw

$10.00 - $200.00/Bag/Bags

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou
Productivity:	20000 pcs/ month
Supply Ability:	20000 pcs/ month
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	IATF16949
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Trapezoidal Tr8X8 lead screw has high efficiency of transferring, In addition, smooth movement and high precision ,duration and reliability, also can attained.Trapezoidal lead screws Tn8x8 and nuts are power transmission screw threads similar to the Acme series but made to metric dimensions and standards.The employees of SCREWTECH group are more than 100 persons. Most of them are workers and technical persons. Our turnover is more than 13.5 million USD. We have acquire the IATF16949 certificate in 2020 (Please find the certificate in the attachment.). SCREWTECH s ball screw and lead screw are supplied to industries of electronics, semiconductor, defense, lab equipments, bio-robot, new energy vehicle, UAV etc.

Feature of lead screw:

* 1. High efficiency of transferring
* 2. Smooth movement
* 3. High precision, duration and reliability
* 4. No gap and preloading
* 5. Produced using auto turning CNC machines
* 6. Precision ball screws
* 7. Low friction
* 8. Durable design
* 9. High-speed operation

Our advantage:

◊High quality: We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 10 years' Manufacuring experience!

◊Competitive price: We are factory that can export directly to customer. so there is no intermediary cost involved.&Price is much cheaper than other brand.

◊Customized service:Various models are available upon request.

The product photos before shipping.

Description

Product	Model	Pitch	Start	Length	Thread Type	Material	Production Technology
Lead Screw	Tr8x8	8mm	1	800mm	ISO Standard Trapezoidal Thread	45 Carbon Steel or stainless steel	Cold rolling
Other sizes, nut shapes are available upon request!(Click to view more)

Part of the standard models

No	Model	No	Model
257	Tr18*4RL	289	Tr19.48*100-20
258	Tr18*5	290	Tr19.6*66-11
259	Tr18*6	291	Tr19.9*12-3
260	Tr18*6-3	292	Tr20*2RL
261	Tr18*8-2	293	Tr20*2.5
262	Tr18*9-3Right hand	294	Tr20*3
263	Tr18*12.7-8	295	Tr20*4RL
264	Tr18*14-7	296	Tr20*4-2
265	Tr18*15-6	297	Tr20*5RL
266	Tr18*18-4 Circular-arc screw thread	298	Tr20*6
267	Tr18*25-10	299	Tr20*8-4
268	Tr18*25.4-8	300	Tr20*9-3
269	Tr18*38.075-12	301	Tr20*10-2
270	Tr18*45-9	302	Tr20*10-4
271	Tr18*60-10RL	303	Tr20*17.5-7
272	Tr18.075*50-5	304	Tr20*18-3
273	Tr18.56*95-19	305	Tr20*20-5
274	Tr18.64*8-4	306	Tr20*25.4-8
275	Tr18.8*9.5178-3	307	Tr20*28-7
276	Tr19*2.5	308	Tr20*66-11
277	Tr19*3	309	Tr20*80-10
278	Tr19*4	310	Tr20*97.1-19
279	Tr19*3.175Right hand	311	Tr20*100-20
280	Tr19*6	312	Tr21*3RL
281	Tr19*15-5	313	Tr21*4
282	Tr19*16-4	314	Tr21*17.5-7
283	Tr19*28-8	315	Tr21.1*22.5-5
284	Tr19*92-18	316	Tr21.2*72-12
285	Tr19*95-19	317	Tr21.3*12.7-4
286	Tr19.428*50-10	318	Tr21.35*60-6
287	Tr19.45*20-5	319	Tr21.57*55-11
288	Tr19.46*28-7	320	Tr21.7*22.5-10

Our lead screw feature:

1.Fast delivery from 5 days to 20 days at most

2.High quality

3.Good surface smoothness

4.Low friction

5.Good straightness

Suggestions:the lead screw assembly should be replaced by new set once the axial clearance is 1/4 or more of the pitch.

Note: all dimensions, unless marked, in mm.

Application:

Automatic controlling machines, cnc machine, cnc lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect.

Our lead screw series:

1.Trapezoidal screw

2.ACME screw

3.Triangular thread screw

4.Anti-backlash nut screw

5.Mini lead screw

6.Right and left hand lead screw
