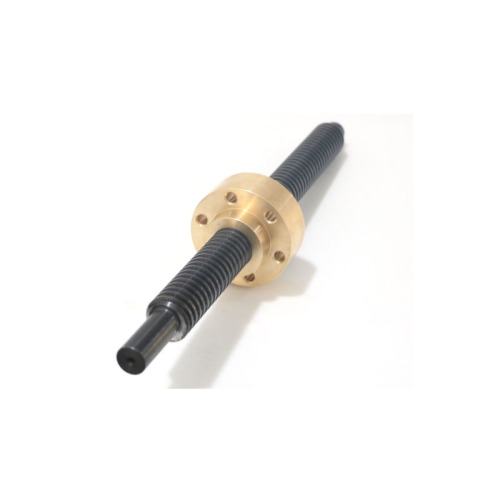

Diameter 60mm lead screw with trapezoidal thread

  Diameter 60mm lead screw with trapezoidal thread

It is a traditional way of thread forming.Threads are cut with the (CNC)lathe for accuracy and for versatility. Both
inch and metric screw threads can be cut using the (CNC) lathe. Compared to thread rolling, cutting process is
used when full thread depth is required, when the quantity is small, when the blank is not very accurate, when
threading up to a shoulder is required, when threading a tapered thread, or when the material is brittle.
Thread grinding is done on a grinding machine using specially dressed grinding wheels matching the shape of the
threads. The process is usually used to produce accurate threads or threads in hardened materials;
The cold working that threads receive during the rolling process strengthens them in tension, shear and fatigue. A
Rolled Thread will increase the thread strength by a minimum of 30% verses a cut thread

Our advantage

We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 15 years experience!We accept customized products!Welcome send us your drawings to design your target products!

More detail for lead screw

1. Material: 1045 Carbon Steel, SUS303, SUS304 or others.

2. 2 starts, 3 starts, 4 starts and more are all available.

3. Major diameter: 2mm-200mm, Lead: 1mm-22mm.

4. Max length: 6 meters.

5. Left hand thread is available upon request.

6. Acme thread, square metric and other non-standard thread profiles are available upon drawings.

7. Higher Precision Grade is available upon request.

Application

Automatic controlling machines, cnc machine, cnc lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect,,

Our product series

1.BALL SCREW:

SFU SERIES, SFE SERIES, M-ISNF SERIES, M-ISNA SERIES, M-CSNF SERIES BALL SCREW, HIGH SPEED BALL SCREW, MICRO BALL SCREW,,,

2.STAINLESS STEEL SUS303, SUS304 OR GCR15 LEAD SCREW

3.AKD SUPPORT UNIT OF BALL SCREW, LEAD SCREW

4.HIWIN LINEAR GUIDEWAYS

5.FLEXIBLE COUPLING

Why choose us ?

1.Our products are various and accept CUSTOMIZED UPON RECEIVING YOUR DRAWINGS

2.We provide the best service for you!

1) We have a group of professional engineers we can provide drawings according to customer's requirements.

2). We have more than 20 machines for offering professional lead screw and ball screw end machining service.

3). We can rebuild, refurbish, and make emergency repairs tolead screw,  ball screw and linear guideways.

4). We can disassemble, clean, polish lead screw,  linear guideways and lead screw, ball screw

5). Two years free maintenance to lead screw , ball screw and one years free maintenance to linear guideways.

3.Above all,  we offer the competive price,we are the original manufacturer.we process by ourselves and sell directly.We keep in touch with our factory during 24H online and by phone.so we can save much intermediate cost and give the best price to you as well as the fast delivery and swift problem solving!!

Package and delivery
