Trapezoidal lead screw with 5mm diameter
- Payment Type:
- L/C, T/T, D/P
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 18 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Productivity: | 10000 pcs/ month |
| Supply Ability: | 10000 pcs/ month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |

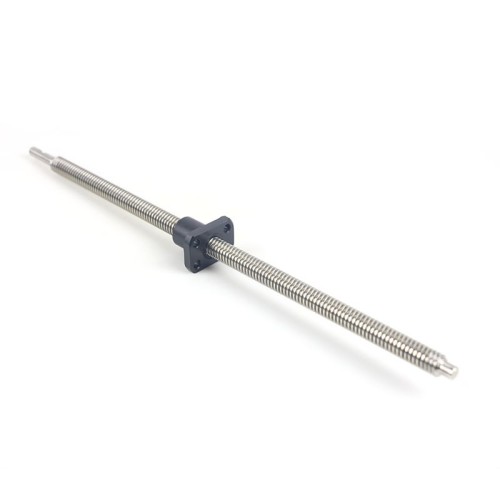

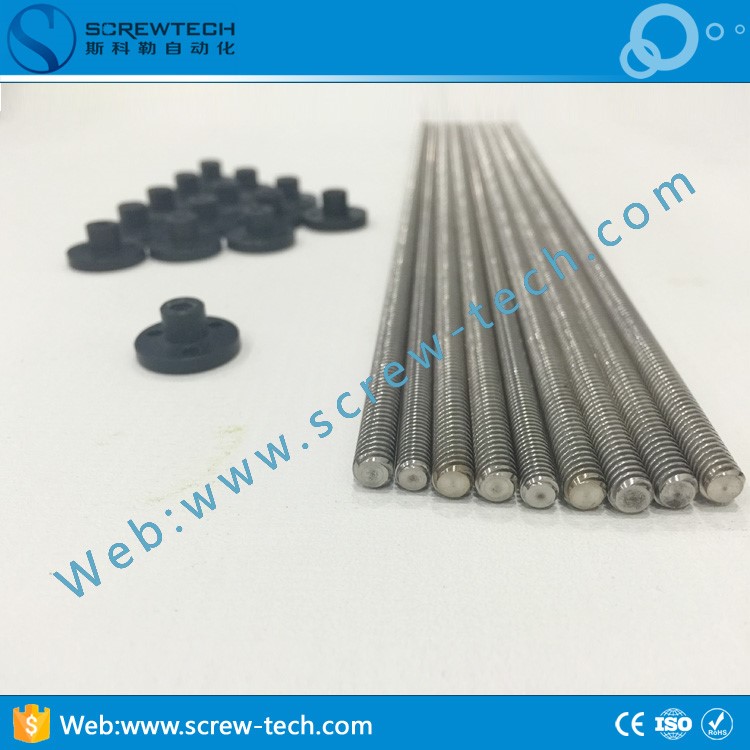

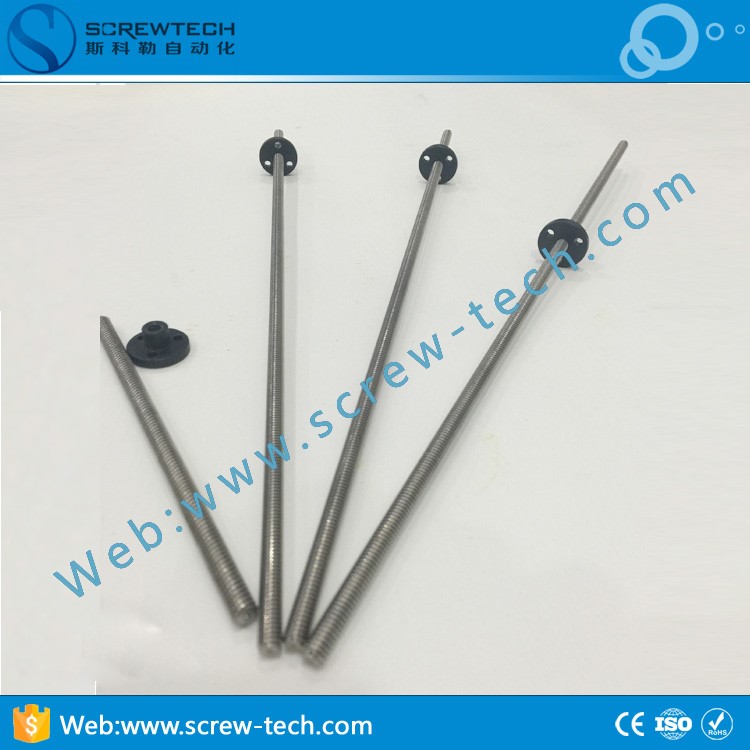

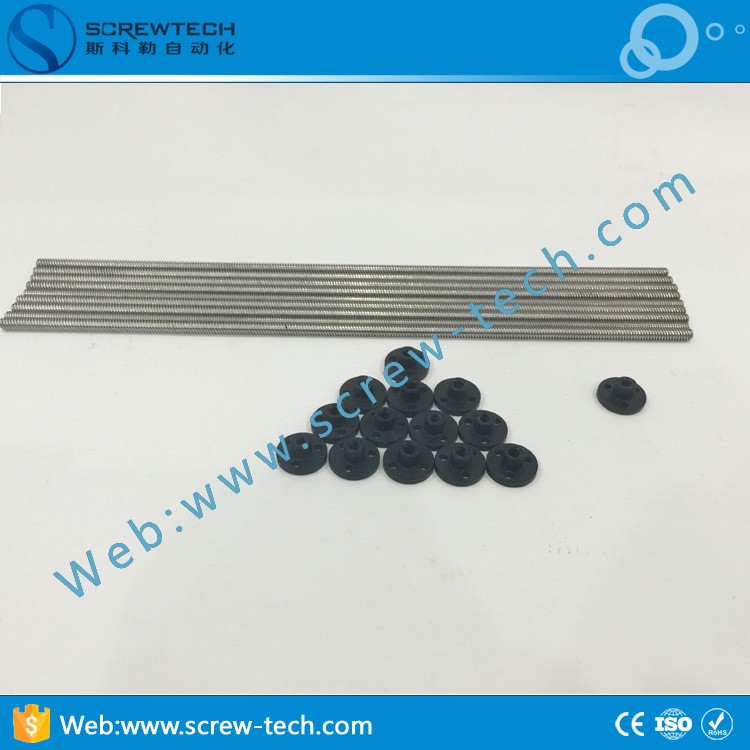

precision trapezoidal lead screw Tr5*1 with 5mm diameter 1mm lead
Product Description
Trapezoidal lead screws and nuts are power transmission screw threads similar to the Acme series but made to metric dimensions and standards. One such standard is the German Metrisches ISO- DIN 103 Trapezgewinde which has been adopted by the International Organization for Standards (ISO). Sometimes misnamed "metric Acme" or "metric M series Acme" Trapezoidal lead screws look like Acme screws and have the same stout thread form and the same robust and durable features as the Acme series.
Data of lead screw
※ We Screwtech is a professional manufacturer of Ball Screw,Lead Screw,Stepper Motor,Linear Guideway,AKD-Support for ball screw,Linear Bearing for more than 15 years
※ We can offer you products of high quality with economic price
※ We can design and produce customized products upon your requirement
※ We can produce the same size as HIWIN, TBI, PMI, and THK.
Features of our lead screw
1.Fast delivery from 5 days to 30 days at most
2.Durable and reliable
3. High positional accuracy
4.Low friction
5. Good synchronism
6.Long service life
7.Factory directly supply
We have business rlations with clients both domestic and abroad.
With the high quality,good service as well as reasonable price,
we've obtained large numbers of customers from Europe, USA, Canada, Africa, Australia, Korea and so on.
The below is just part of the whole model list, kindly contact me for more information！

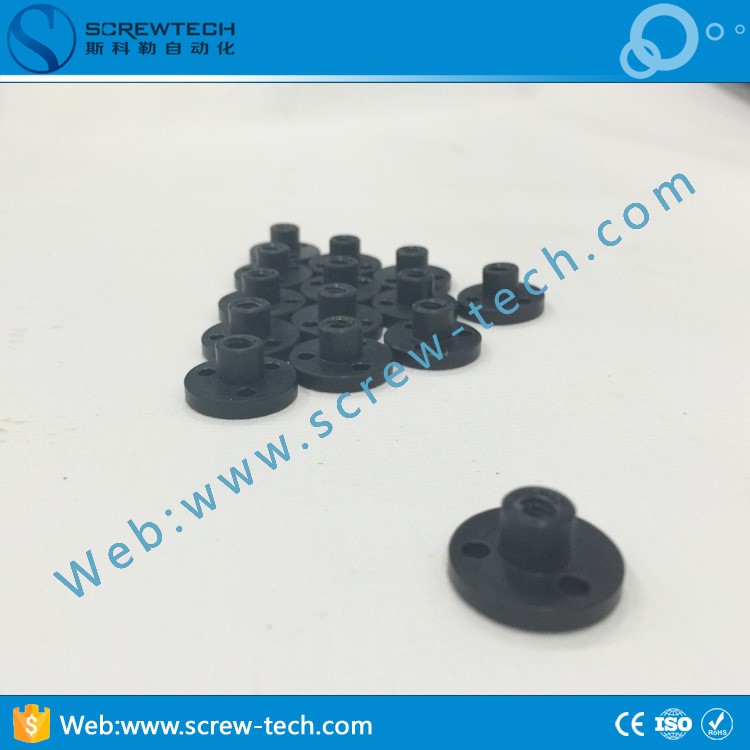

General Purpose of Lead Screw Nut
General Purpose Nutis fit for lead screws of trapezoidal thread, STT thread, acme thread and other standard or nonstandard thread, which don’t require anti-backlash and wear compensation. It offers axial clearance from 0.075mm to 0.18mm.
Properties:
1. Standards: ISO2901-4, DIN103, GB/5796; Clearance: 7H. Higher tolerances can be acquired upon request.
2. The popular material can be bronze, brass, casting iron, alloy steel, POM (Derlin, Acetal), PA6 (PA66, Nylon) and other polymer plastic materials.
3. High quality materials, strict quality control and precision machining ensure the best performance.
4. Working temperature: 15℃to 350℃for metal nut, and 15℃ to 175℃ for plastic nut.Suggestions:
the lead screw assembly should be replaced by new set once the axial clearance is 1/4 or more of the pitch.
(Note: all dimensions, unless marked, in mm.)
