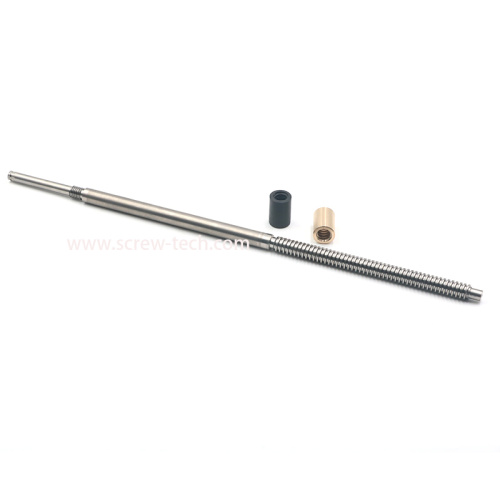

Screwtech Tr12x3 lead screw with POM nut

  High quality lead screws Tr12x3 and POM nut

 Description

Trapezoidal screw has two specifications, imperial and metric. The imperial standard is ACME, and the metric standard is Trapezoidal. The thread types of the two are very similar, and there is no obvious performance advantage between each other. The choice of imperial or metric products usually depends on two aspects: first, the ideal lead suitable for the application (the distance that the threaded screw advances per revolution); second, what unit is suitable for the equipment to be designed. In many cases, the choice of imperial or metric system depends purely on the lead available. Once the lead parameters are set in the control system, the difference between using imperial or metric screws is almost zero.
Trapezoidal screws are usually used in instrument-level applications that require smooth, precise, clean, and maintenance-free operation. Nuts are usually made of internally lubricated polymer materials. Trapezoidal screws are also used in laboratory and life science equipment, such as DNA sampling equipment, scanning equipment, and fluid handling equipment. Other applications include engraving, rapid prototyping, inspection and data storage equipment. In addition, sliding screws with metal (usually copper) nuts can also be used for heavy-duty lifting.

Model :Lead Screw Tr12x3

Pitch  3mm

Start  1

Length  778mm

Thread Type ISO Standard Trapezoidal Thread

Material Production  45Carbon Steel, SUS303, SUS304 or others

Technology Cold rolling

Part of the standard models

More detail for our lead screw

1. Material: 1045 Carbon Steel, SUS303, SUS304 or others.

2. 2 starts, 3 starts, 4 starts and more are all available.

3. Major diameter: 2mm-200mm, Lead: 1mm-22mm.

4. Max length: 6 meters.

5. Left hand thread is available upon request.

6. Acme thread, square metric and other non-standard thread profiles are available upon drawings.

7. Higher Precision Grade is available upon request.

Application

Automatic controlling machines, cnc machine, cnc lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect,,
