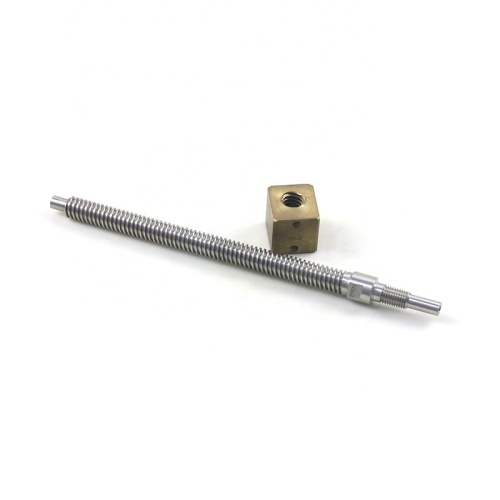

Trapezoidal lead screw diameter 10mm lead 02mm

Trapezoidal lead screw diameter 10mm lead 02mm

Get Latest Price

Payment Type:: L/C, T/T, D/P

Incoterm:: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Min. Order:: 1 Bag/Bags

Min. Order:: 1 Bag/Bags

Delivery Time:: 18 Days

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou
Productivity:	20000 pcs/ month
Supply Ability:	20000 pcs/ month
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP
Certificate:	IATF16949
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Free shipping ISO standard diameter 10mm Tr10x2 lead screw

Description

Product	Model	Pitch	Start	Length	Thread Type	Material	Production Technology
Lead Screw	Tr10x2	2mm	1	450mm	ISO Standard Trapezoidal Thread	45 Carbon Steel or stainless steel	Cold rolling
Other sizes, nut shapes are available upon request!(Click to view more)

Part of the standard models

No	Model	No	Model
257	Tr18*4RL	289	Tr19.48*100-20
258	Tr18*5	290	Tr19.6*66-11
259	Tr18*6	291	Tr19.9*12-3
260	Tr18*6-3	292	Tr20*2RL
261	Tr18*8-2	293	Tr20*2.5
262	Tr18*9-3Right hand	294	Tr20*3
263	Tr18*12.7-8	295	Tr20*4RL
264	Tr18*14-7	296	Tr20*4-2
265	Tr18*15-6	297	Tr20*5RL
266	Tr18*18-4 Circular-arc screw thread	298	Tr20*6
267	Tr18*25-10	299	Tr20*8-4
268	Tr18*25.4-8	300	Tr20*9-3
269	Tr18*38.075-12	301	Tr20*10-2
270	Tr18*45-9	302	Tr20*10-4
271	Tr18*60-10RL	303	Tr20*17.5-7
272	Tr18.075*50-5	304	Tr20*18-3
273	Tr18.56*95-19	305	Tr20*20-5
274	Tr18.64*8-4	306	Tr20*25.4-8
275	Tr18.8*9.5178-3	307	Tr20*28-7
276	Tr19*2.5	308	Tr20*66-11
277	Tr19*3	309	Tr20*80-10
278	Tr19*4	310	Tr20*97.1-19
279	Tr19*3.175Right hand	311	Tr20*100-20
280	Tr19*6	312	Tr21*3RL
281	Tr19*15-5	313	Tr21*4
282	Tr19*16-4	314	Tr21*17.5-7
283	Tr19*28-8	315	Tr21.1*22.5-5
284	Tr19*92-18	316	Tr21.2*72-12
285	Tr19*95-19	317	Tr21.3*12.7-4
286	Tr19.428*50-10	318	Tr21.35*60-6
287	Tr19.45*20-5	319	Tr21.57*55-11
288	Tr19.46*28-7	320	Tr21.7*22.5-10

CLICK TO VIEW MORE

Our lead screw feature

1.Fast delivery from 5 days to 20 days at most

2.High quality

3.Good surface smoothness

4.Low friction

5.Good straightness

6.Factory directly supply

General Purpose of Lead Screw Nut

General Purpose Nutis fit for lead screws of trapezoidal thread, STT thread, acme thread and other standard or nonstandard thread, which don’t require anti-backlash and wear compensation. It offers axial clearance from 0.075mm to 0.18mm.

Properties:

1. Standards: ISO2901-4, DIN103, GB/5796; Clearance: 7H. Higher tolerances can be acquired upon request.

2. The popular material can be bronze, brass, casting iron, alloy steel, POM (Derlin, Acetal), PA6 (PA66, Nylon) and other polymer plastic materials.

3. High quality materials, strict quality control and precision machining ensure the best performance.

4. Working temperature: 15℃to 350℃for metal nut, and 15℃ to 175℃ for plastic nut.

Suggestions:the lead screw assembly should be replaced by new set once the axial clearance is 1/4 or more of the pitch.

Note: all dimensions, unless marked, in mm.

Various nut types to choose

Lead screw nut types(click to view more)

More detail for our lead screw

1. Material: 1045 Carbon Steel, SUS303, SUS304 or others.

2. 2 starts, 3 starts, 4 starts and more are all available.

3. Major diameter: 2mm-200mm, Lead: 1mm-22mm.

4. Max length: 6 meters.

5. Left hand thread is available upon request.

6. Acme thread, square metric and other non-standard thread profiles are available upon drawings.

7. Higher Precision Grade is available upon request.

Application

Automatic controlling machines, cnc machine, cnc lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect,,

Our lead screw series:

1.Trapezoidal screw

2.ACME screw

3.Triangular thread screw

4.Anti-backlash nut screw

5.Mini lead screw

6.Right and left hand lead screw
