Fast Delivery AF series End Support Unit
-
$29.00≥1 Others
- Min. Order:
- 1 Others
- Min. Order:
- 1 Others
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,Express Delivery,CFR,CIF,DAF,EXW,FAS,FCA,CPT |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
Product Description
Product Description
High quality TaiWan AKD support unit AF series
The support seat is a bearing mount that connects the screw rod and the motor. It is a finished product of the shaft end of the standard ball screw. Standardized support units EK and EF are prepared, and standard support units BK and BF are prepared for the general ball screw. The support unit on the fixed side is equipped with a JIS5 angular contact ball bearing adjusted by preload. Especially in the ultra-compact type of EK6 and 8, the ultra-compact angular contact ball bearing with a contact angle of 45° developed for the ultra-compact ball screw can be used to obtain high rigidity, high precision and stable rotation performance. [1] The support unit on the support side uses deep groove ball bearings. The internal bearing of the support unit EK and BK type is packed with a proper amount of lithium soap-based grease, sealed with a special sealing gasket, which can be directly installed and used for a long time.
The support seat is a bearing mount that connects the screw rod and the motor. It is a finished product of the shaft end of the standard ball screw. Standardized support units EK and EF are prepared, and standard support units BK and BF are prepared for the general ball screw. The support unit on the fixed side is equipped with a JIS5 angular contact ball bearing adjusted by preload. Especially in the ultra-compact type of EK6 and 8, the ultra-compact angular contact ball bearing with a contact angle of 45° developed for the ultra-compact ball screw can be used to obtain high rigidity, high precision and stable rotation performance. [1] The support unit on the support side uses deep groove ball bearings. The internal bearing of the support unit EK and BK type is packed with a proper amount of lithium soap-based grease, sealed with a special sealing gasket, which can be directly installed and used for a long time.
AKD standard support units for threaded rod：AKD standard support units for threaded rod provides everything necessary for mounting Ball Screws to machines. All parts required for ball screw mounting are provided as a set. Here are support units for light load and small equipment, and ball screw support units for heavy load and machine tool applications. Support Units provide both fixed and support-side-bearing assemblies to support screw shafts.

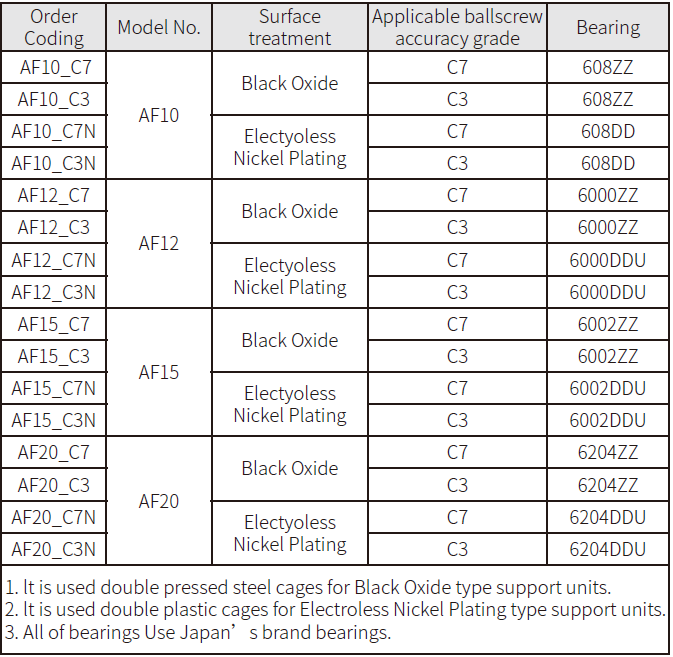

Series: EK/EF,BK/BF,FK/FF,AK/AF
Features: 1. High accuracy 2. High rigidity 3. High loading 4. Instant delivery
Related Products
Packing&Shipping
Packaging Details:
In cartons or Wooden cases upon your requirement
For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
Port:
Shanghai
Lead Time:
10~30 days
In cartons or Wooden cases upon your requirement
For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
Port:
Shanghai
Lead Time:
10~30 days
