BK10 Support Unit for Ball Screw
- Min. Order:
- 1 Others
- Min. Order:
- 1 Others
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SUZHOU |
|---|---|
| Supply Ability: | 20000 pcs/ month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,DAF,CFR,DES,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |

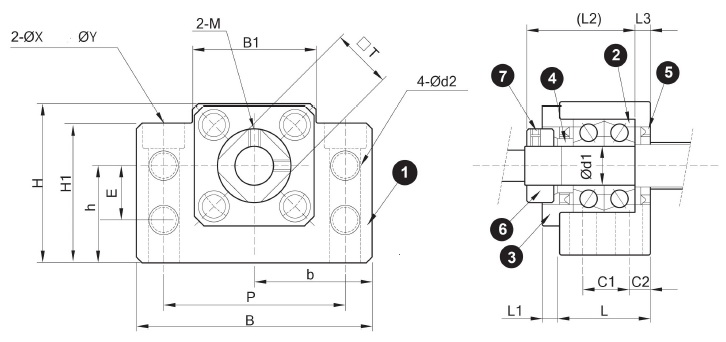

This type of Support Unit has features of light-weight&compact profile compared to our conventional Support Units. SCREWTECH believes this type is suitable for Miniature Ball Screws.
By eliminating extra shape of Housing, and minimizing pitch of mounting holes, light-weight&compact design Support Units became reality.
Pre-load controlled Angular Contract Bearing are installed, so Rigidity can be kept high.
Reasonable price has been achieved with reducing number of components, becasue oil seals have been eliminated by using shielded type Angular Contact Bearings.

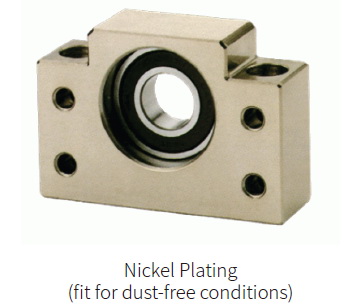

Angular Contact Bearings are made from stainless steel and low contamination Grease is applied, so Support Units can be used in clean-environment.
Ultra-compact size is standardizedm it would be suitable for Ultra Miniature Ball Screws.
Pillow & Flange type are standardized for both fixed & supported side, so wide variety of choices are available.
In cartons or Wooden cases upon your requirement
For samples:
we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:
we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
Port:
Shanghai
Lead Time:
10~30 days
