2004 Ball screw with double nut

$45.00

≥1 Others

Min. Order:: 1 Others

Min. Order:: 1 Others

Transportation:: Ocean, Land, Air, Express

Port:: ShangHai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	SuZhou
Productivity:	2000pcs/month
Supply Ability:	2000pcs/month
Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,CFR,Express Delivery,DAF,CIF,EXW,FAS,FCA,CPT
Certificate:	IATF16949
Transportation:	Ocean,Land,Air,Express
Port:	ShangHai

Product Description

China made 20mm ball screw with double nut GQ2004 left hand thread

Ball screw is an ideal product that converts rotary motion into linear motion, or converts linear motion into rotary motion.

Ball screw is the most commonly used transmission element in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion, or convert torque into axial repetitive force. At the same time, it has both high precision, reversibility and high Features of efficiency. Because of its low frictional resistance, ball screws are widely used in various industrial equipment and precision instruments.

The ball screw is composed of a screw, a nut, a steel ball, a pre-compression piece, a reverser, and a dustproof device. Its function is to convert rotary motion into linear motion, which is a further extension and development of Akem screw. The important significance of this development is to change the bearing from sliding motion to rolling motion.

Material: Stainless steel or GCr15 ; others available upon request
Dimension: Diameter :20 mm Lead : 4 mm
Thread Direction: Left Hand
Application: Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine ect..
Remark: The marked price in the page is not the authentic transaction value. Because the category of screw’s products belongs to customized products, the actual price should be given corresponding discount by products’ specifications and order quantity.

Why choose Screwtech

※ We Screwtech is a professional manufacturer of Ball Screw,Lead Screw, for more than 10 years
※ We can offer you products of high quality with economic price
※ We can design and produce customized products upon your requirement
※ We can produce high accuracy, smooth, long service life, low noise,fast delivery .ball screws

Our ball screw range:
* Nominal Diameter : Ø 4 ~ 90 mm
* Pitch                       : 0.5 ~ 40 mm
* Accuracy Grade    : C3 C5 C7

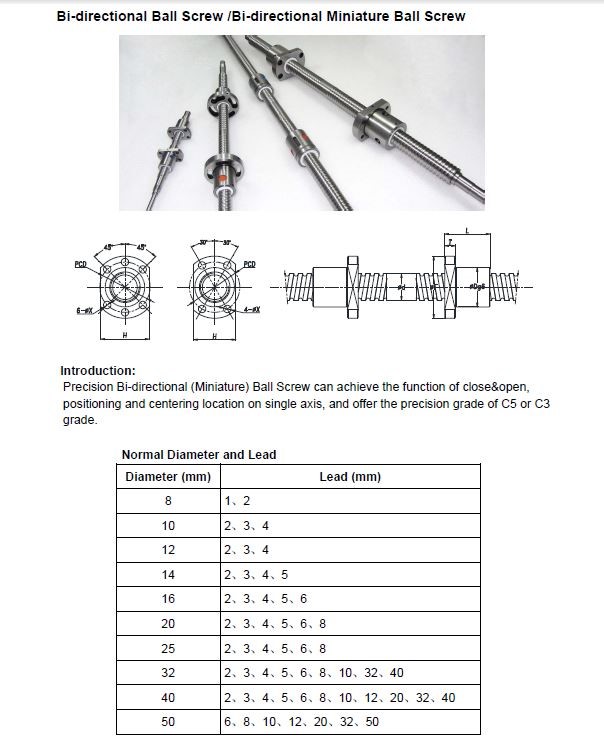

* Thread Direction : Right ; Left ; Bi-directional
* Nut Type               : Standard or Customized

* Length : Maximum 4000 mm

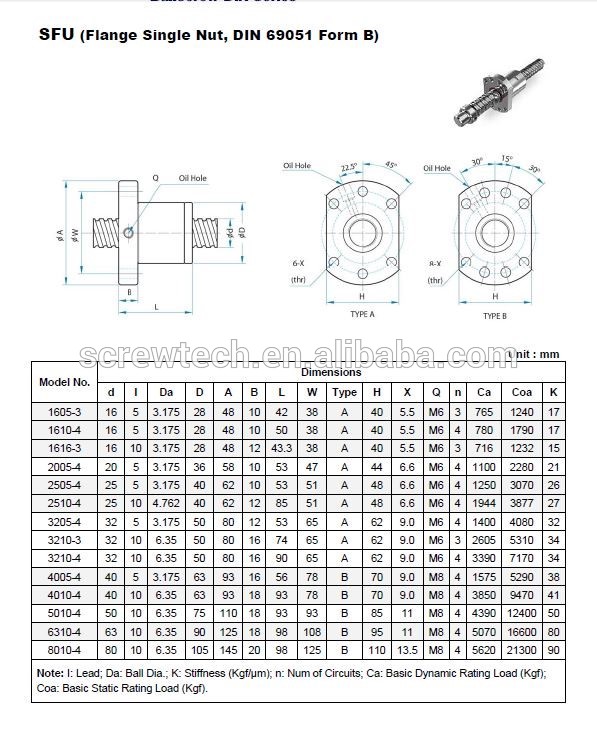

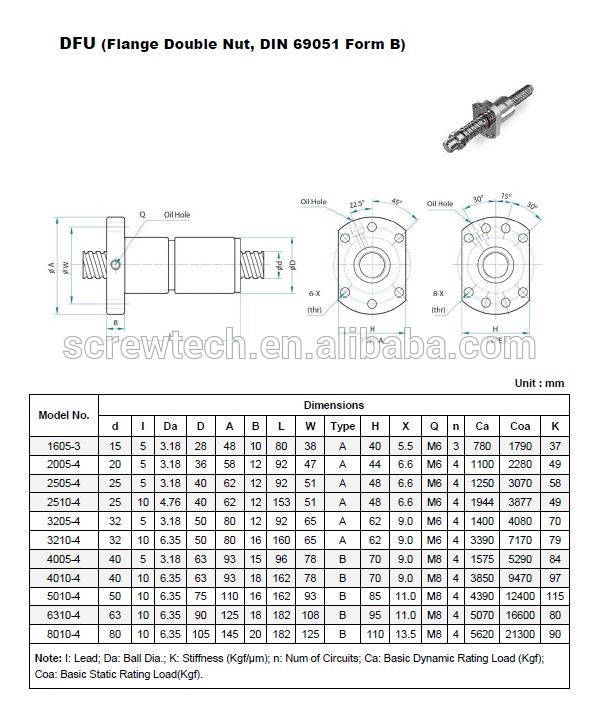

Part of Catalog

Other main products

1. BALL SCREW

SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES,M-CSNF SERIES, M-ISNC SERIES BALL SCREW

2. CUSTOMIZED BALL SCREW
3. LEAD SCREW
4. SUPPORT UNIT
5. LINEAR GUIDE RAIL

Factory&Workshop

Packing & Delivery

Package Details : In cartons or Wooden cases upon your requirement

We have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.

Our Business Extent

We have business rlations with clients both domestic and abroad.
With the high quality,good service as well as reasonable price,
we've obtained large numbers of customers from Europe, USA, Canada, Africa, Australia, Korea and so on.
