1204 12mm Ball Screw 305mm length
- Min. Order:
- 1 Others
- Min. Order:
- 1 Others
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Productivity: | 20000 pcs/ month |
| Supply Ability: | 20000 pcs/ month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDU,DDP,Express Delivery,DAF,DES |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |

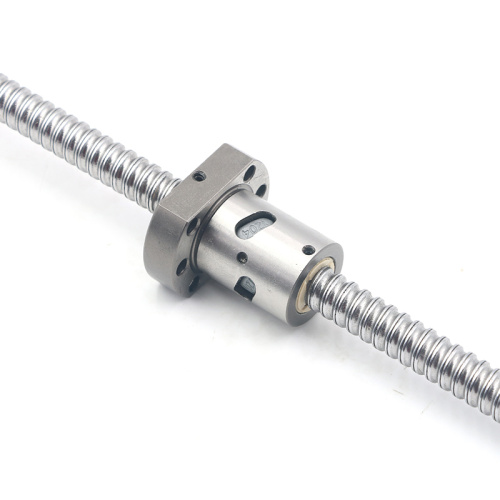

MIF1204-245-305-C5 Ball Screw
This Ball screw have diameter 12mm and lead 4mm.The nuts are round with flange.
Ball screws are widely used in various industrial equipment and precision instruments because of their small friction resistance.Our company is based on the accumulated product technology over the years, from materials, thermal management, manufacturing, inspection to shipment, are managed by strict quality assurance system, so it has high reliability.
We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 10 years' Manufacuring experience.
SCREWTECH ball screws are in stock ,and can completely replace TBI, KSS, HIWIN and other brands, the same size, performance to meet customer use, the price is preferential enough.
Specifications of industrial ball screw
Product Name: Ball Screw
Mode Number: MIF1202
Material:GCR15 or Stainless Steel, others available upon request
Place of origin:Suzhou, China
Accuracy grade: C3 C5 C7
Our ball screw model selection
(can be customized according to your needs)
| Diameter | Pitch | Cycle mode | Nut Type | R/L thread | Raw Material | Surface Finishing | End Shaft Journal |
| 4 | 1 | I | F | R/L thread |
S1--SS304
S2--SS316
S3--SS316L
S4--SS440C
G--GCr15
|
CR--chromeplate
WS--tungsten disulfide coating
MS--molybdenum disulfide
BR--low temperature black chrome plating
BL--black coating
|
|
| K | R thread | ||||||
| 5 | 1 | I | F | R/L thread | |||
| 6 | 1 | I | F | R/L thread | |||
| A | R/L thread | ||||||
| S | R thread | ||||||
| K | F | R thread | |||||
| 2 | I | F | R/L thread | ||||
| A | R/L thread | ||||||
| 6 | E | F | R thread | ||||
| 8 | 1 | I | F | R/L thread | |||
| A | R thread | ||||||
| S | R thread | ||||||
| C | R/L thread | ||||||
| K | F | R/L thread | |||||
| 2 | I | F | R/L thread | ||||
| A | R thread | ||||||
| S | R/L thread | ||||||
| K | F | R/L thread | |||||
| 2.5 | I | F | R thread | ||||
| A | R thread | ||||||
| 4 | U | F | R thread | ||||
| P | F | R/L thread | |||||
| 5 | P | F | R/L thread | ||||
| 8 | P | F | R thread | ||||
| E | F | R/L thread | |||||
| 10 | 2 | I | F | R/L thread | |||
| A | R/L thread | ||||||
| K | F | R/L thread | |||||
| 3 | I | F | R/L thread | ||||
| 4 | I | F | R/L thread | ||||
| A | R thread | ||||||
| W | F | R thread | |||||
| 10 | E | F | R/L thread | ||||
| 12 | 1 | I | F | R/L thread | |||
| 2 | I | F | R/L thread | ||||
| A | R/L thread | ||||||
| 3 | I | F | R/L thread | ||||
| 4 | I | F | R/L thread | ||||
| A | R thread | ||||||
| 5 | I | F | R thread | ||||
| A | R thread | ||||||
| C | R thread | ||||||
| E | F | R/L thread | |||||
| 8 | P | F | R thread | ||||
| 10 | W | F | R/L thread | ||||
| 14 | 2 | I | F | R/L thread | |||
| 3 | I | F | R/L thread | ||||
| 4 | I | F | R/L thread | ||||
| 5 | I | F | R/L thread | ||||
| 16 | 2 | I | F | R/L thread | |||
| 4 | U | F | R/L thread | ||||
| 5 | I | F | R/L thread | ||||
| U | F | R/L thread | |||||
| 10 | I | F | R/L thread | ||||
| U | F | R/L thread | |||||
| 16 | E | F | R thread | ||||
| 20 | 4 | U | F | R/L thread | |||
| 5 | I | F | R/L thread | ||||
| U | F | R/L thread | |||||
| 10 | U | F | R/L thread | ||||
| 25 | 4 | U | F | R/L thread | |||
| 5 | I | F | R/L thread | ||||
| U | F | R/L thread | |||||
| 6 | U | F | R/L thread | ||||
| 10 | I | F | R/L thread |
Steel ball circulation mode
| Round Internal Deflector | Return Tube | Liner Return | Return Plate | End Cap | Intubation |
|
I |
U | K | P | E | W |
 |
 |
 |
 |
 |
 |
Common nut shape
| Round Nut with Flange | Round Nut with Thread | Square Nut | Cylinder Nut with Key | Square or Round Nut with Trunnion | Others |
|
F |
A | S | C | B |
|
 |
 |
 |
 |
 |
 |
