12mm miniature ball screw for Linear Actutor

  12mm miniature ball screw for M-ISNA 1202 ball screw

Key features

1.  High transmission efficiency                   2. Steady motion

3.  High positional accuracy                        4. Long service life

5.  Good synchronism                                  6. High reliability

7.  Zero clearance and pre-tighten

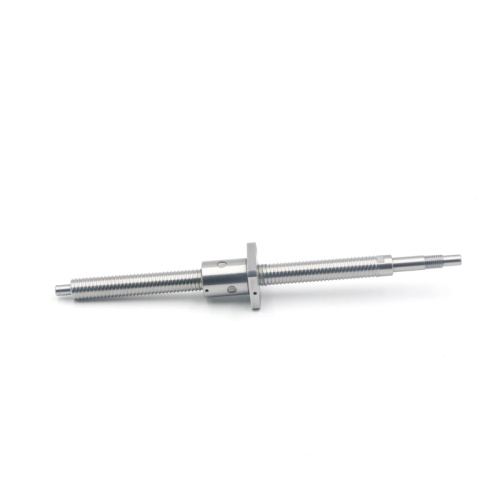

1202 ball screw 1

1202 ball screw 2

1202 ball screw 3

1202 BALL SCREW 4

                             The characteristic of ball-screw pair

The ball screw drive system is a rolling screw drive system, in which the ball acts as the rolling medium. There are two drive modes:

(1) transform rotary motion into linear motion. (2) transform linear motion into rotary motion.

Application fields:

Automatic controlling machines,semi-conductor industry,general industrial machinery,machine tools,medical equipments,parking systems,measuring instrument

Our product series

1.BALL SCREW:

SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES, M-ISNC SERIES, M-CSNF SERIES BALL SCREW

WITH GCR15 or STAINLESS STEEL MATERIAL.

2.LEAD SCREW WITH LEFT HAND, RIGHT HAND,RIGHT-LEFT HAND

3.AKD SUPPORT UNIT FOR BALL SCREW, LEAD SCREW

4.COUPLING

5.LINEAR GUIDEWAY

BALL SCREW SERIES

LEAD SCREW SERIES

AKD SUPPORT UNIT FOR BALL SCREW

COUPLING

Linear Guideways

Our products include:

1)Miniature Ball Screw with diameter from 4mm-16mm, lead from 1mm to 10mm.

2)Stainless Steel or 1045 Steel Lead Screw with POM or Brass Nut, diameter from 3.5mm to 80mm

3)Stainless Steel Ball Screw, Lead Screw

4)AKD Support Unit of Ball Screw, Lead Screw

5)HIWIN Linear Guideways

6)Stepper Motor

7)Flexible Coupling of ball screw
