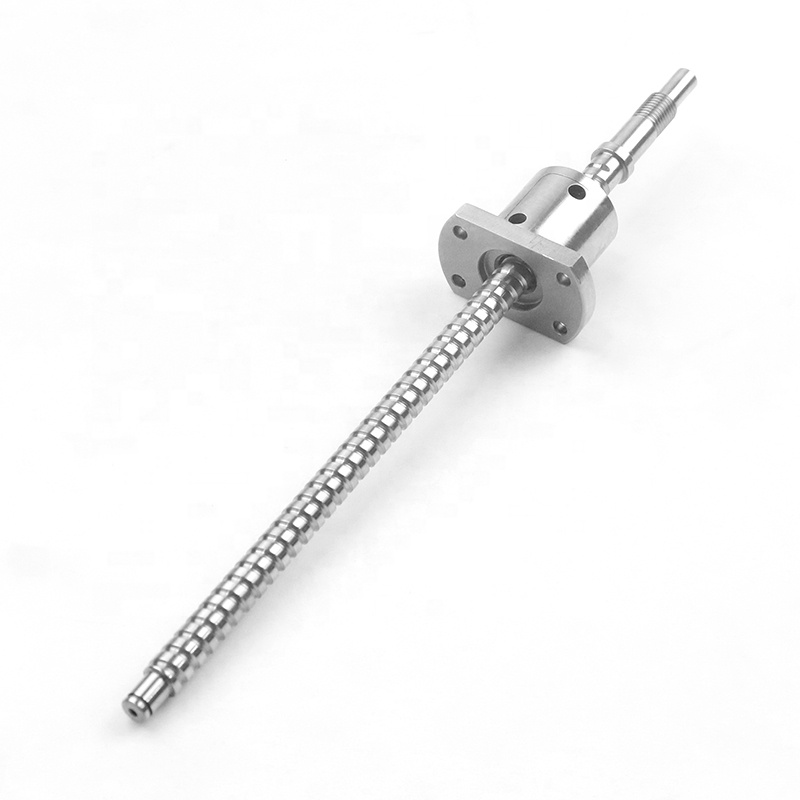

8mm ball screw with for 3d printer
-
$80.00≥1 Others
- Min. Order:
- 1 Others
- Min. Order:
- 1 Others
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SuZhou |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | L/C,T/T,D/P,D/A,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery,DEQ,DDP,DDU |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |
06mm 08mm miniature ball screw with round nut for semiconductor device
In order to adapt to various purposes, ball screw bearings provide a wide range of standardized products. Widely used in machine tools, the ball circulation methods include circulating duct type, circulator type, and end cap type. Preloading methods include positioning preloading (double nut method, position preloading method) and constant pressure preloading. The appropriate type can be selected according to the purpose. The screw has high-precision grinding precision ball screw (precision is divided into 6 grades from CO-C7) and cold-rolled ball screw bearing formed by high-precision cold rolling (precision is divided into 3 from C7-C10) Levels). In addition, in order to cope with the urgent need for delivery by users, there are finished products with processed shaft ends, semi-finished products and cold-rolled ball screw bearings that can be freely processed on the shaft ends. As the peripheral parts of this bearing, the screw support unit, nut support, lock nut, etc. necessary for use have also been standardized and are available for users to choose from.
Ball screw bearings are based on product technology accumulated over the years. From materials, heat treatment, manufacturing, inspection to shipment, they are managed by a rigorous quality assurance system, so they have high reliability.
|
Material
|
Stainless steel or GCr15 ; others available upon request
|
|
Dimension
|
Norminal Diameter : from 4 to 32mm
|
|
Thread Direction
|
Right hand thread, left hand thread, bi-directional thread all available
|
|
Accuracy Grade
|
C3 C5 C7
|
|
Application
|
Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipment, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine etc.
|
|
Remarks
|
Various ballnuts are available upon drawing
|
Custom flanged ballnut ball screws
1. We Screwtech is a professional manufacturer of Ball Screws,Lead Screws.Meanwhile, Distributing Stepper Motor,Linear Guideway,AKD-Support for ball screw,Coupling,Linear Module for more than 10 years.
2. As the unique and professional original factory,we can offer you products of high quality with competitive price and fast delivery.
3. Customized service:Various models are available upon request.
4.We can produce the same size as that from HIWIN, TBI, PMI, and THK.
Features of our mini ball screw
※ High mechanical efficiency
※ Zero Axial play
※ Accuracy grade of C3, C5, C7
※ Long service life
※ Smooth running
1.We have business relations with clients both domestic and abroad.
In domestic,our distributor mainly located in Guangdong province,Shandong province,Jiangsu province.
2.With the high quality,good service as well as reasonable price,
We've kept steady and large exporting to Europe, Northern America, Australia,Korea and so on.
Customers' visiting to our factory
Package Details : In cartons or Wooden cases upon your requirement
For samples:we have DHL, FEDEX VIP account, so the shipping freight will be much cheaper after discount.
For bulk order:we have freight forwarder to ship by air,by train or by sea.You can also arrange shipping through your own agent.
