Miniature 1603 ball screw for rolling machine
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA, CPT, CIP
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
Miniature 1603 ball screw for rolling machine
Miniature ball screw is composed of screw, nut and ball. With 16mm diameter ,3mm lead ,128mm thread length ,its function is to convert rotary motion into linear motion, which is the further extension and development of ball screws. Right hand,left hand both available.The important significance of this development is to change the bearing from rolling action to sliding action. GCR15 or stainless steel both available.Ball screw is widely used in various industrial equipment and precision instruments because of its small friction resistance.
Features of miniature ball screw:
Miniature ball screw is the most commonly used transmission element in tool machine and precision machinery. Its main function is to convert rotating motion into linear motion, or torque into axial repeated force. It has the characteristics of high precision, reversibility and high efficiency. Advantages: long service life, high speed, low heating, no crawling - high precision - high efficiency, less input power, no axial clearance.
Product Description
| Product name | Ball Screw |
| Model | GQ1603(Precision Customized ball screw) |
| Diameter | 16mm |
| Lead | 3mm |
| Thread length | 128mm |
| Shaft length | 229mm |
| Thread | Right hand,left hand both available |
| Material | GCR15 or stainless steel both available |
| Production Technology | By grinding |
| Feature | Round nut with flange, Internal deflector |
Note: Other sizes,dimensions and nut shapes are available upon request
Our ball screw features
1. High mechanical efficiency 2. Steady motion
3. High positional accuracy 4. Long service life
5. Good synchronism 6.Own factory supply
7. Zero clearance and preload
Detailed images

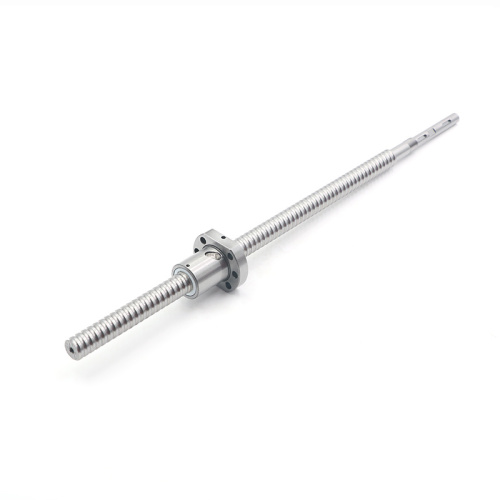

1603 BALL SCREW
1603 BALL SCREW
1603 ball screw
1603 ball screw
Standard models in stock
Specification
|
Model |
d |
P |
Dw |
n |
Ca |
Coa |
K |
Size of nut |
|||||||||
|
D |
A |
B |
L |
PCD |
H |
X |
Y |
Z |
Q |
||||||||
|
M-ISNF0401 |
4 |
1 |
0.8 |
2 |
40 |
51 |
2.8 |
10 |
20 |
3 |
12 |
15 |
14 |
2.9 |
/ |
/ |
/ |
|
M-ISNF0601 |
6 |
1 |
0.8 |
3 |
73 |
121 |
6.8 |
12 |
24 |
3.5 |
15 |
18 |
16 |
3.4 |
/ |
/ |
/ |
|
M-ISNF0602 |
6 |
2 |
0.8 |
2 |
73 |
121 |
6.8 |
12 |
24 |
4 |
18 |
18 |
16 |
3.4 |
/ |
/ |
/ |
|
M-ISNF0801 |
8 |
1 |
0.8 |
4 |
161 |
403 |
14 |
14 |
27 |
4 |
16 |
21 |
18 |
3.4 |
/ |
/ |
/ |
|
M-ISNF0802 |
8 |
2 |
1.2 |
3 |
222 |
458 |
13 |
14 |
27 |
4 |
16 |
21 |
18 |
3.4 |
/ |
/ |
/ |
|
M-ISNF0802.5 |
8 |
2.5 |
1.2 |
3 |
221 |
457 |
13 |
16 |
29 |
4 |
26 |
23 |
20 |
3.4 |
/ |
/ |
/ |
|
M-ISNF1002 |
10 |
2 |
1.588 |
3 |
243 |
569 |
15 |
18 |
35 |
5 |
28 |
27 |
22 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1003 |
10 |
3 |
2.0 |
3 |
245 |
570 |
15 |
20 |
35 |
5 |
30 |
27 |
22 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1004 |
10 |
4 |
2.381 |
3 |
468 |
905 |
17 |
22 |
46 |
10 |
38 |
36 |
28 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1201 |
12 |
1 |
0.8 |
3 |
173 |
317 |
15 |
20 |
37 |
5 |
28 |
29 |
24 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1202 |
12 |
2 |
1.588 |
3 |
334 |
902 |
22 |
20 |
37 |
5 |
28 |
29 |
24 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1202.5 |
12 |
2.5 |
1.2 |
3 |
355 |
981 |
22 |
20 |
37 |
5 |
28 |
29 |
24 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1203 |
12 |
3 |
3 |
3 |
365 |
990 |
22 |
20 |
37 |
5 |
28 |
29 |
24 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1204 |
12 |
4 |
2.381 |
3 |
454 |
998 |
22 |
24 |
40 |
6 |
28 |
29 |
29 |
3.5 |
6 |
3.5 |
/ |
|
M-ISNF1205 |
12 |
5 |
2.5 |
3 |
619 |
883 |
22 |
22 |
40 |
8 |
38 |
32 |
24 |
4.5 |
/ |
/ |
/ |
|
M-ISNF1402 |
14 |
2 |
1.2 |
3 |
354 |
1053 |
24 |
21 |
40 |
6 |
23 |
31 |
26 |
5.5 |
/ |
/ |
/ |
|
M-ISNF1602 |
16 |
2 |
1.588 |
3 |
373 |
1200 |
26 |
25 |
43 |
10 |
40 |
35 |
29 |
5.5 |
/ |
/ |
/ |
|
M-ISNF1602.5 |
16 |
2.5 |
1.2 |
3 |
400 |
1210 |
26 |
25 |
43 |
10 |
40 |
35 |
29 |
5.5 |
/ |
/ |
/ |
|
M-ISNF1603 |
16 |
3 |
2.0 |
3 |
530 |
13800 |
26 |
25 |
43 |
10 |
40 |
35 |
29 |
5.5 |
/ |
/ |
/ |
|
M-ISNF1604 |
16 |
4 |
2.381 |
3 |
640 |
13400 |
26 |
28 |
48 |
10 |
42 |
39 |
34 |
4.5 |
8 |
4.5 |
M6 |
|
Not: the size and shape of the nut can be made as per customers’ requirement. |
|||||||||||||||||
|
P: lead . Dw: ball diameter n: number of ball recirculation. K: stiffness (Kgf/μm). Ca: basic dynamic rating load (Kgf). Coa: basic static rating load (Kgf) |
|||||||||||||||||
Various models in stock,other sizes,dimensions and shape are available upon request
The characteristic of ball-screw pair
The ball screw drive system is a rolling screw drive system, in which the ball acts as the rolling medium. There are two drive modes:
(1) transform rotary motion into linear motion. (2) transform linear motion into rotary motion.
Application fields:
Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, Automatic computer strip machine, Gantry cranes, Gantry robot, 3D engraving machine ect..
