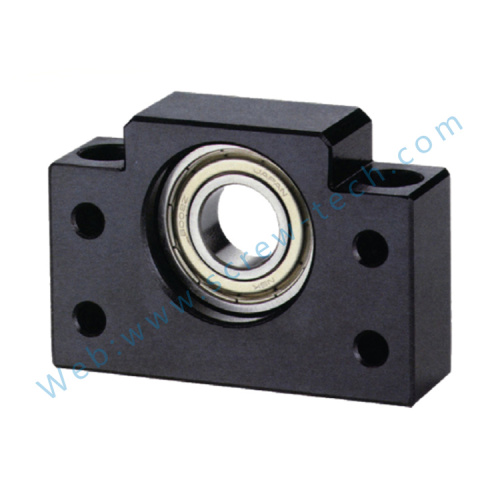

BF17 ball screw support unit
-
$15.00≥1 Others
- Min. Order:
- 1 Others
- Min. Order:
- 1 Others
Your message must be between 20 to 2000 characters
Contact NowBF ball screw support unit for BF17
We are the professional manufacturer in China for precision ball screw, precision mini ball screw, precision lead screw with more than 15 years experience! We accept customized products! Welcome send us your drawings to design your target products
Key Features
1.In large stock
2.Prompt delivery
3.High quality and long life use
4.Sample order is available
5.Reasonable price
Specification
Unit:mm
|
Model No. |
d1 |
L |
B |
H |
b |
h |
B1 |
H1 |
E |
P |
d2 |
X |
Y |
Z |
Bearing |
C-ring |
|
0.02 |
0.02 |
|||||||||||||||
|
BF10 |
8 |
20 |
60 |
39 |
30 |
22 |
34 |
33 |
15 |
46 |
5.50 |
6.60 |
10.80 |
5.00 |
608ZZ |
S 08 |
|
BF12 |
10 |
20 |
60 |
43 |
30 |
25 |
34 |
33 |
18 |
46 |
5.50 |
6.60 |
10.80 |
1.50 |
6000ZZ |
S 10 |
|
BF15 |
15 |
20 |
70 |
48 |
35 |
28 |
40 |
38 |
18 |
54 |
5.50 |
6.60 |
11.00 |
6.50 |
6002ZZ |
S 15 |
|
BF17 |
17 |
23 |
86 |
64 |
43 |
39 |
50 |
55 |
28 |
68 |
6.60 |
9.00 |
14.00 |
8.50 |
6203ZZ |
S 17 |
|
BF20 |
20 |
26 |
88 |
60 |
44 |
34 |
52 |
50 |
22 |
70 |
6.60 |
9.00 |
14.00 |
8.50 |
6004ZZ |
S 20 |
|
BF25 |
25 |
30 |
106 |
80 |
53 |
48 |
64 |
70 |
33 |
85 |
9.00 |
11.00 |
17.50 |
11.00 |
6205ZZ |
S 25 |
|
BF30 |
30 |
32 |
128 |
89 |
64 |
51 |
76 |
78 |
33 |
102 |
11.00 |
14.00 |
20.00 |
13.00 |
6206ZZ |
S 30 |
|
BF35 |
35 |
32 |
140 |
96 |
70 |
52 |
88 |
79 |
35 |
114 |
11.00 |
14.00 |
20.00 |
13.00 |
6207ZZ |
S 35 |
|
BF40 |
40 |
37 |
160 |
110 |
80 |
60 |
100 |
90 |
37 |
130 |
14.00 |
18.00 |
26.00 |
17.50 |
6208ZZ |
S 40 |
BF BALL SCREW SUPPORT UNIT 2
About Ball Screw Support Unit
The ball screw support unit is a bearing connected ball screw and motor ,its structure and specialty for standard ball spiral its axis of the inventory the finished product,preparation of the standardization of the support unit EK,EF type,to general ball spiral poles prepared the standard support unit BK, BF type.
Related Products
1.BALL SCREW:
SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES,M-CSNF SERIES BALL SCREW
2.STAINLESS STEEL,SUS303, SUS304,OR GCR15 BALL SCREW, LEAD SCREW
3.SUPPORT UNIT OF BALL SCREW, AKD SUPPORT UNIT
4.LINEAR GUIDEWAY
5.FLEXIBLE COUPLING
Why choose us ?
1. Screwtech designs, manufactures, supplies a complete selection of inch and metric linear mechanical parts and systems to the Linear Motion and Power Transmission Industries.
We accept customised upon receiving your drawing!
Our products include:
1)Miniature Ball Screw with diameter from 4mm-16mm, lead from 1mm to 10mm.
2)Stainless Steel or 1045 Steel Lead Screw with POM or Brass Nut, diameter from 3.5mm to 80mm
3)Stainless Steel Ball Screw, Lead Screw
4)AKD Support Unit of Ball Screw, Lead Screw
5)HIWIN Linear Guideways
6)Stepper Motor
7)Flexible Coupling of ball screw
2.We provide the best service for you!
1) We have a group of professional engineers we can provide drawings according to customer's requirements.
2). We have more than 20 machines for offering professional lead screw and ball screw end machining service.
3). We can rebuild, refurbish, and make emergency repairs to lead screw, ball screw and linear guideways.
4). We can disassemble, clean, polish lead screw, linear guideways and lead screw, ball screw
5). Two years free maintenance to lead screw , ball screw and one years free maintenance to linear guideways.
3.Above all, we offer the competive price,we are the original manufacturer.we process by ourselves and sell directly.
We keep in touch with our factory during 24H online and by phone.so we can save much intermediate cost and give the best price to you as well as the fast delivery and swift problem solving!!
