32mm lead screw with thread for Tr32X5
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- SHANGHAI
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 40000 per year |
|---|---|
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Transportation: | Ocean,Land,Air,Express |
| Port: | SHANGHAI |

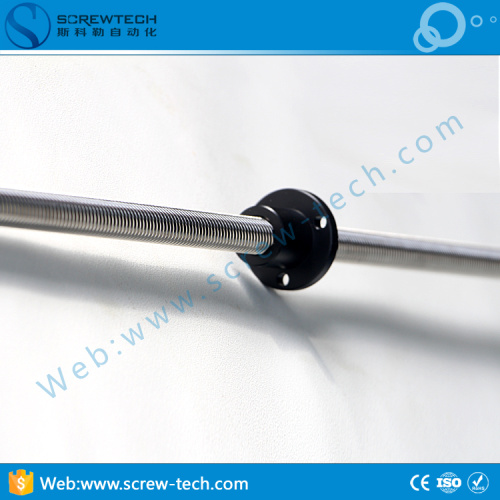

32mm A-C-M-E lead screw with A-C-M-E thread for Tr32*5
Our advantage
We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 15 years experience!We accept customized products!Welcome send us your drawings to design your target products!
A-C-M-E LEAD SCREW 1
A-C-M-E LEAD SCREW 2
A-C-M-E LEAD SCREW 3
Our lead screw feature
1. Fast delivery from 5 days to 30 days at most 2. Durable and reliable
3. High positional accuracy 4. Low friction
5. Good synchronism 6.Long service life
Part of our lead screw detail, Maybe some is workable for you!
|
Code |
Pitch (mm) |
d (mm) |
d2 (mm) |
d3 (mm) |
Pitch Error (mm/300mm) |
Straightness (mm/300mm) |
|||
|
Max |
Min |
Max |
Min |
Max |
Min |
||||
|
Tr18x2 |
2 |
18 |
17.82 |
16.93 |
16.73 |
15.5 |
15.12 |
0.1 |
0.3 |
|
Tr18x4 |
4 |
17.70 |
15.91 |
15.64 |
13.5 |
12.47 |
0.1 |
0.3 |
|
|
Tr18x8 |
4 |
17.43 |
15.91 |
15.61 |
13.5 |
12.47 |
0.2 |
0.3 |
|
|
Tr20x2 |
2 |
20 |
19.82 |
18.93 |
18.73 |
17.5 |
17.18 |
0.1 |
0.3 |
|
Tr20x4 |
4 |
19.70 |
17.91 |
17.64 |
15.5 |
14.47 |
0.1 |
0.3 |
|
|
Tr20x8 |
4 |
19.70 |
17.90 |
17.61 |
15.5 |
14.47 |
0.2 |
0.3 |
|
|
Tr22x3 |
3 |
22 |
21.76 |
20.41 |
20.19 |
18.5 |
18.14 |
0.1 |
0.2 |
|
Tr22x5 |
5 |
21.66 |
19.39 |
19.11 |
16.5 |
15.29 |
0.1 |
0.2 |
|
|
Tr22x8 |
4 |
21.70 |
19.90 |
19.61 |
17.50 |
16.47 |
0.2 |
0.2 |
|
|
Tr22x10 |
5 |
21.66 |
19.39 |
19.08 |
16.5 |
15.29 |
0.2 |
0.2 |
|
|
Tr24x3 |
3 |
24 |
23.76 |
22.41 |
22.17 |
20.5 |
20.14 |
0.1 |
0.2 |
|
Tr24x5 |
5 |
23.66 |
21.39 |
21.09 |
18.5 |
17.27 |
0.1 |
0.2 |
|
|
Tr24x10 |
5 |
23.66 |
21.39 |
21.06 |
18.5 |
17.27 |
0.2 |
0.2 |
|
|
Tr26x3 |
3 |
26 |
25.76 |
24.41 |
24.17 |
22.5 |
20.14 |
0.1 |
0.2 |
|
Tr26x5 |
5 |
25.67 |
23.39 |
23.09 |
20.5 |
19.27 |
0.1 |
0.2 |
|
|
Tr26x8 |
4 |
25.50 |
21.87 |
21.49 |
17.0 |
16.40 |
0.1 |
0.2 |
|
|
Tr26x10 |
5 |
25.67 |
23.39 |
23.09 |
20.5 |
19.27 |
0.2 |
0.2 |
|
|
Tr28x3 |
3 |
28 |
27.76 |
26.41 |
26.17 |
24.5 |
24.10 |
0.1 |
0.2 |
|
Tr28x5 |
5 |
27.67 |
25.39 |
25.09 |
22.5 |
21.27 |
0.1 |
0.2 |
|
|
Tr28x10 |
5 |
27.67 |
25.39 |
25.06 |
22.5 |
21.27 |
0.2 |
0.2 |
|
|
Tr30x3 |
3 |
30 |
29.76 |
28.41 |
28.17 |
26.5 |
26.4 |
0.1 |
0.2 |
|
Tr30x6 |
6 |
29.63 |
26.88 |
26.55 |
23.0 |
21.56 |
0.2 |
0.2 |
|
|
Tr32x12 |
6 |
29.63 |
26.88 |
26.51 |
23.0 |
21.56 |
0.1 |
0.2 |
|
|
Tr32x3 |
3 |
32 |
31.76 |
30.50 |
30.25 |
28.5 |
28.10 |
0.1 |
0.2 |
|
Tr32x5 |
5 |
31.67 |
29.39 |
29.09 |
26.5 |
25.27 |
0.1 |
0.2 |
|
|
Tr32x6 |
6 |
31.63 |
28.88 |
28.55 |
25.0 |
23.56 |
0.1 |
0.2 |
|
|
Tr32x12 |
6 |
31.63 |
28.88 |
28.51 |
25.0 |
23.56 |
0.2 |
0.2 |
|
|
Tr36x6 |
6 |
36 |
35.63 |
32.88 |
32.55 |
29.0 |
27.56 |
0.1 |
0.2 |
|
Tr36x12 |
6 |
35.63 |
32.88 |
32.51 |
29.0 |
27.56 |
0.2 |
0.2 |
|
|
Tr40x7 |
7 |
40 |
39.58 |
36.38 |
36.02 |
32.0 |
30.38 |
0.1 |
0.2 |
|
Tr40x14 |
7 |
39.58 |
36.38 |
35.98 |
32.0 |
30.38 |
0.2 |
0.2 |
|
|
Tr44x7 |
7 |
44 |
43.57 |
40.37 |
40.02 |
36.0 |
34.38 |
0.1 |
0.2 |
|
Tr44x12 |
12 |
43.40 |
37.84 |
37.42 |
31.0 |
30.18 |
0.1 |
0.2 |
|
|
Tr44x14 |
7 |
43.57 |
40.37 |
39.98 |
36.0 |
34.38 |
0.2 |
0.2 |
|
|
|
|||||||||
For other items,kindly please send us your drawing for production
Application
Automatic controlling machines, cnc machine, cnc lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect,,
More detail for lead screw
1. Material: 1045 Carbon Steel, SUS303, SUS304 or others.
2. 2 starts, 3 starts, 4 starts and more are all available.
3. Major diameter: 2mm-200mm, Lead: 1mm-22mm.
4. Max length: 6 meters.
5. Left hand thread is available upon request.
6. A-c-m-e thread, square metric and other non-standard thread profiles are available upon drawings.
7. Higher Precision Grade is available upon request.
Our product series
1.BALL SCREW:
SFU SERIES, SFE SERIES, M-ISNF SERIES, M-ISNA SERIES, M-CSNF SERIES BALL SCREW, HIGH SPEED BALL SCREW, MICRO BALL SCREW,,,
2.STAINLESS STEEL SUS303, SUS304 OR GCR15 LEAD SCREW
3.AKD SUPPORT UNIT OF BALL SCREW, LEAD SCREW
4.HIWIN LINEAR GUIDEWAYS
5.FLEXIBLE COUPLING
BALL SCREW SERIES
LEAD SCREW SERIES
AKD SUPPORT UNIT SERIES
Flexible Coupling
Our factory Photos
Why choose us ?
1.Our products are various and accept CUSTOMIZED UPON RECEIVING YOUR DRAWINGS
Our products include:
Miniature Ball Screw with diameter from 4mm-16mm, lead from 1mm to 10mm.
Stainless Steel or 1045 Steel Lead Screw with POM or Brass Nut, diameter from 3.5mm to 80mm
Stainless Steel Ball Screw, Lead Screw
AKD Support Unit of Ball Screw, Lead Screw
HIWIN Linear Guideways
Stepper Motor
Flexible Coupling for ball screw and lead screw
2.We provide the best service for you!
1) We have a group of professional engineers we can provide drawings according to customer's requirements.
2). We have more than 20 machines for offering professional lead screw and ball screw end machining service.
3). We can rebuild, refurbish, and make emergency repairs tolead screw, ball screw and linear guideways.
4). We can disassemble, clean, polish lead screw, linear guideways and lead screw, ball screw
5). Two years free maintenance to lead screw , ball screw and one years free maintenance to linear guideways.
3.Above all, we offer the competive price,we are the original manufacturer.we process by ourselves and sell directly.We keep in touch with our factory during 24H online and by phone.so we can save much intermediate cost and give the best price to you as well as the fast delivery and swift problem solving!!
