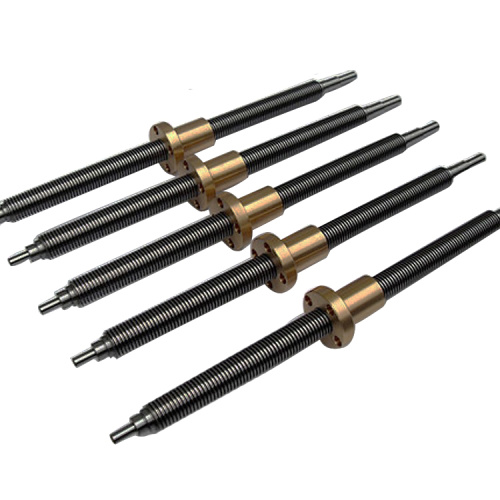

China lead screw DIN103
Our advantage
we are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 15 years experience!We accept customized products!Welcome send us your drawings to design your target products!
Our lead screw feature
1. Smooth movement 2. Durable and reliable
3. High positional accuracy 4. Low friction
5. Good synchronism
Part of our lead screw detail, Maybe some is workable for you!
|
Code |
Pitch |
d |
d2 |
d3 |
Pitch Error (mm/300mm) |
Straightness (mm/300mm) |
|||
|
Max |
Min |
Max |
Min |
Max |
Min |
||||
|
Tr8x1.5 |
1.5 |
8 |
7.85 |
7.18 |
7.01 |
6.29 |
5.92 |
0.2 |
0.3 |
|
Tr10x1.5 |
1.5 |
10 |
9.85 |
9.18 |
9.01 |
8.20 |
7.92 |
0.2 |
0.3 |
|
Tr10x2 |
2 |
9.82 |
8.93 |
8.74 |
7.50 |
6.89 |
0.2 |
0.3 |
|
|
Tr10x3 |
3 |
9.80 |
8.42 |
8.19 |
6.50 |
6.15 |
0.2 |
0.3 |
|
|
Tr10x4 |
2 |
9.82 |
8.93 |
8.74 |
7.50 |
6.89 |
0.3 |
0.3 |
|
|
Tr12x2 |
2 |
12 |
11.82 |
10.93 |
9.84 |
9.58 |
8.89 |
0.2 |
0.3 |
|
Tr12x3 |
3 |
11.76 |
10.42 |
10.19 |
8.50 |
7.69 |
0.2 |
0.3 |
|
|
Tr12x6 |
3 |
11.76 |
10.42 |
10.19 |
8.50 |
7.69 |
0.3 |
0.3 |
|
|
Tr14x2 |
2 |
14 |
13.82 |
12.93 |
12.73 |
11.5 |
11.18 |
0.2 |
0.3 |
|
Tr14x3 |
3 |
13.76 |
12.42 |
12.19 |
10.5 |
10.07 |
0.2 |
0.3 |
|
|
Tr14x4 |
4 |
13.80 |
11.91 |
11.64 |
9.50 |
8.80 |
0.2 |
0.3 |
|
|
Tr14x6 |
3 |
13.76 |
12.42 |
12.16 |
10.5 |
9.68 |
0.3 |
0.3 |
|
|
Tr16x2 |
2 |
16 |
15.82 |
14.93 |
14.73 |
13.5 |
13.12 |
0.1 |
0.3 |
|
Tr16x4 |
4 |
15.70 |
13.91 |
13.64 |
11.5 |
10.47 |
0.1 |
0.3 |
|
Automatic controlling machines, cnc machine, cnc lathe, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, printing machine, stepper motor, ect,,
More detail for lead screw
1. Material: 1045 Carbon Steel, SUS303, SUS304 or others.
2. 2 starts, 3 starts, 4 starts and more are all available.
3. Major diameter: 2mm-200mm, Lead: 1mm-22mm.
4. Max length: 6 meters.
5. Left hand thread is available upon request.
6. Acme thread, square metric and other non-standard thread profiles are available upon drawings.
7. Higher Precision Grade is available upon request.
Our product series
1.BALL SCREW:SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES,M-CSNF SERIES BALL SCREW
2.STAINLESS STEEL OR GCR15 LEAD SCREW
3.AKD SUPPORT UNIT OF LEAD SCREW
4.FLEXIBLE COUPLING OF LEAD SCREW
5.ALL KINDS OF NUTS OF LEAD SCREW
BALL SCREW SERIES
LEAD SCREW SERIES

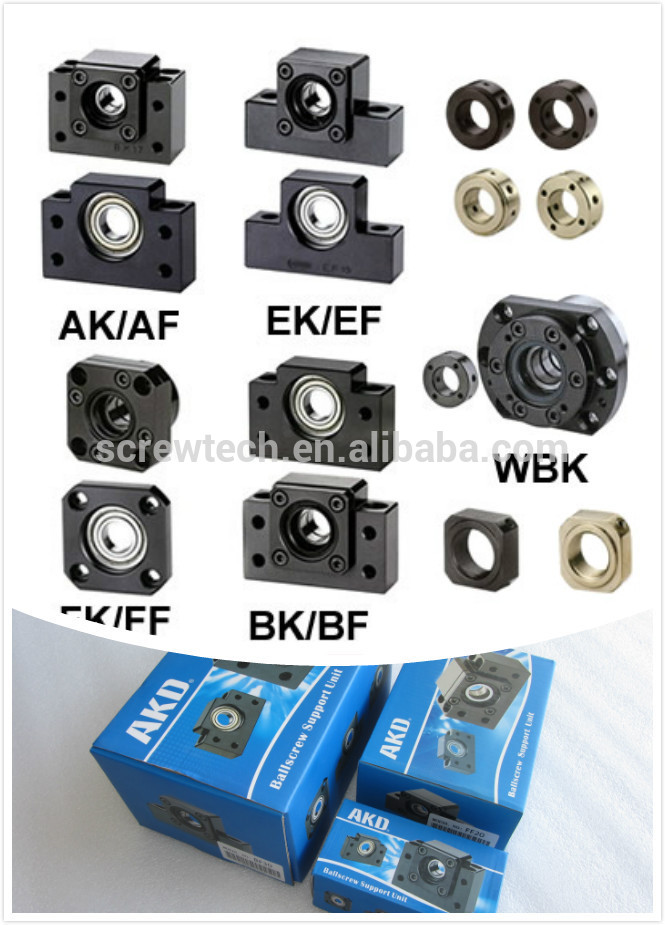

AKD SUPPORT UNIT SERIES
Our factory show
Why choose us ?
1.Our products are various and accept customized
Our products include:
Miniature Ball Screw with diameter from 4mm-16mm, lead from 1mm to 10mm.
Stainless Steel or 1045 Steel Lead Screw with POM or Brass Nut, diameter from 3.5mm to 80mm
Stainless Steel Ball Screw, Lead Screw
Support Unit of Ball Screw, Lead Screw
HIWIN Linear Guideways
Motorized linear stage, high accuracy of positioning, single axis, XY-axis, XYZ-axis, multi-axis robot
Stepper Motor lead screw
Flexible Coupling of lead screw
2.We provide the best service for you!
- Before-Sales:
1).Providing guidance for lead screw type selection ,choosing the optimal design,reducing the customer cost and esuring the operating performance of equipment
2).Helping customers design lead screw applications and providing overall solutions
3).Reducing operating cost for customers
- In-Sales :
1).Providing customers with transportation arrangements and related service
2).Assisting customers in handling inspection for lead screw
- After-sales:
1).Providing customers with trainings about bearings installation,operation and maintenance
2).Ensuring the stable operation of equipment,improving lead screw service life
3).Providing bearing failure analysis in lead screw
3.Above all, we offer the competive price,we are the original manufacturer.we process by ourselves and sell directly.so we can save much intermediate cost and give the best price to you!
Package and delivery
