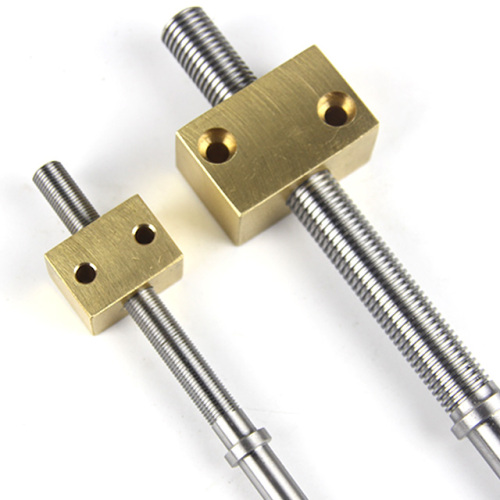

Diameter 10mm linear motion guide lead screw with metric thread and brass nut
Introduction:
Diameter 10mm Trapezoidal lead screws and nuts are power transmission screw threads similar
to the Acme series but made to metric dimensions and standards. One such
standard is the German Metrisches ISO- DIN 103 Trapezgewinde which has been
adopted by the International Organization for Standards (ISO). Sometimes
misnamed "metric Acme" or "metric M series Acme"
Trapezoidal lead screws look like Acme screws and have the same stout thread
form and the same robust and durable features as the Acme series
Our advantage
◊High quality: We are the professional manufacturer in China for precision ball screw,precision mini ball screw,precision lead screw with more than 15 years rich technical and manufacture experience!
◊Competitive price: We are factory supply that can export directly to customer. so there is no intermediary cost involved
◊Fast response:Your request will get response within 12 hours in any case.
Product pictures
Description
| Product | Model | Pitch | Start | Length | Thread Type | Material | Production Technology |
| Lead Screw |
M10x1 |
1mm | 1 starts | Customized | ISO Standard Trapezoidal Thread | 45Carbon Steel, SUS303, SUS304 or others | Cold rolling |
Part of the standard models
| No | Model | No | Model | |
| 129 | Tr12*12-3 | 161 | Tr13.2*42-7 | |
| 130 | Tr12*12-4 | 162 | Tr13.2*45-9 | |
| 131 | Tr12*15-6 | 163 | Tr13.3*25-10 | |
| 132 | Tr12*16-4 | 164 | Tr13.5*12-3 | |
| 133 | Tr12*18-6 | 165 | Tr13.5*13.5-3 | |
| 134 | Tr12*19.05-6 | 166 | Tr13.6*27.5-11 | |
| 135 | Tr12*22.5-9 | 167 | Tr13.8*19.05-6 | |
| 136 | Tr12*28-7 | 168 | Tr13.8*48-8 | |
| 137 | Tr12*36-9 | 169 | Tr13.8*70-14 | |
| 138 | Tr12*40-10 | 170 | Tr14*2RL | |
| 139 | Tr12.5*15-5 | 171 | Tr14*2.5 | |
| 140 | Tr12.5*25-10 | 172 | Tr14*3RL | |
| 141 | Tr12.7*25.4-8 | 173 | Tr14*4RL | |
| 142 | Tr12.8*22.225-7 | 174 | Tr14*6-2 | |
| 143 | Tr12.8*65-13 | 175 | Tr14*8-2 | |
| 144 | Tr13*2.5 | 176 | Tr14*9-3 | |
| 145 | Tr13*3 | 177 | Tr14*12-3 | |
| 146 | Tr13*4 | 178 | Tr14*16-4 | |
| 147 | Tr13*6-2 | 179 | Tr14*17.5-7 | |
| 148 | Tr13*6-4 | 180 | Tr14*18-6 | |
| 149 | Tr13*7.5-5 | 181 | Tr14*19.05-6 | |
| 150 | Tr13*9-3 | 182 | Tr14*21-6 | |
| 151 | Tr13*10-5 | 183 | Tr14*22.225-7 | |
| 152 | Tr13*13.5-3 | 184 | Tr14*28-7 | |
| 153 | Tr13*17.5-7 | 185 | Tr14*28.575-9 | |
| 154 | Tr13*21-7 | 186 | Tr14.28*6-3 | |
| 155 | Tr13*30-3 | 187 | Tr14.4*7.614-4 | |
| 156 | Tr13*35-7 | 188 | Tr14.5*7.5-3 | |
| 157 | Tr13.2*12-8 | 189 | Tr14.5*20-5 | |
| 158 | Tr13.2*26.66-8 | 190 | Tr14.5*25.4-8 | |
| 159 | Tr13.2*33.26-8 | 191 | Tr14.7*12.5-5 | |
| 160 | Tr13.2*40-8 | 192 | Tr14.8*40RL |
CLICK TO VIEW MORE
General Purpose of Lead Screw Nut
General Purpose Nutis fit for lead screws of trapezoidal thread, STT thread, acme thread and other standard or nonstandard thread, which don’t require anti-backlash and wear compensation. It offers axial clearance from 0.075mm to 0.18mm.
Properties:
1. Standards: ISO2901-4, DIN103, GB/5796; Clearance: 7H. Higher tolerances can be acquired upon request.
2. The popular material can be bronze, brass, casting iron, alloy steel, POM (Derlin, Acetal), PA6 (PA66, Nylon) and other polymer plastic materials.
3. High quality materials, strict quality control and precision machining ensure the best performance.
4. Working temperature: 15℃to 350℃for metal nut, and 15℃ to 175℃ for plastic nut.
Suggestions:the lead screw assembly should be replaced by new set once the axial clearance is 1/4 or more of the pitch.
Note: all dimensions, unless marked, in mm.
