Accurate Motion Linear Positioning Stage
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DAF,DES |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |

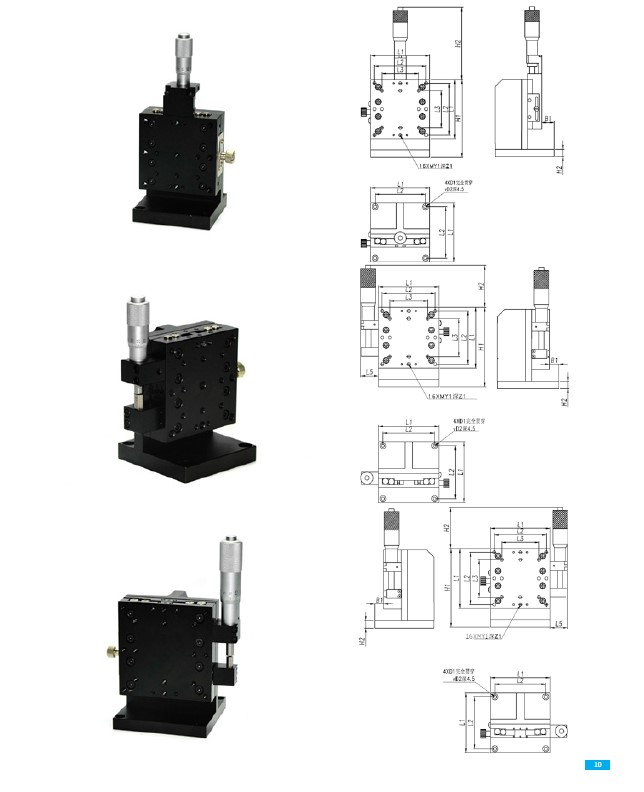

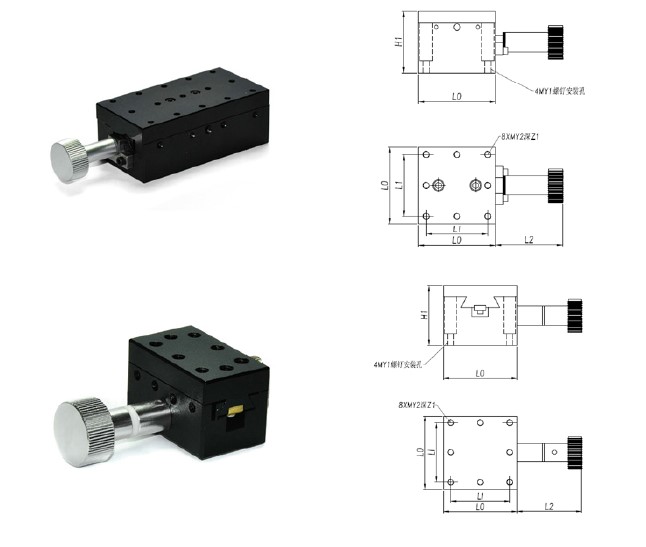

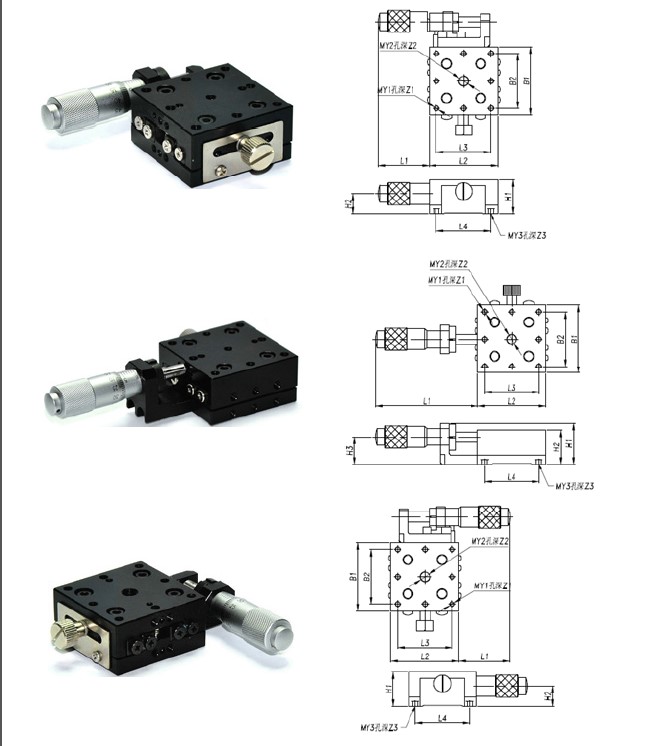

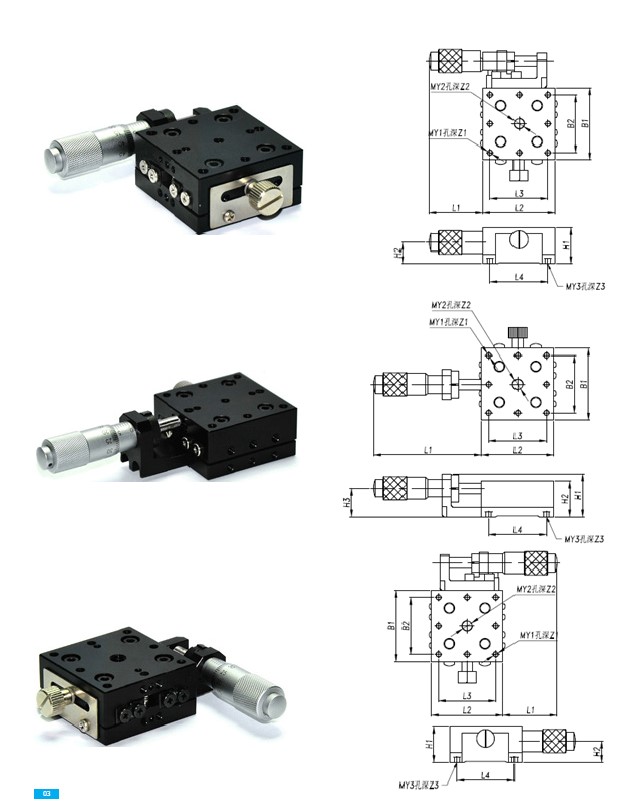

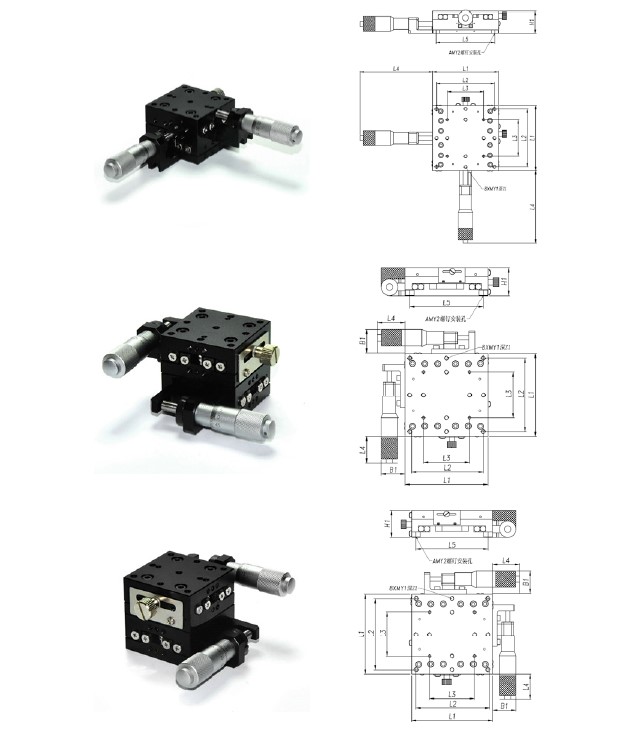

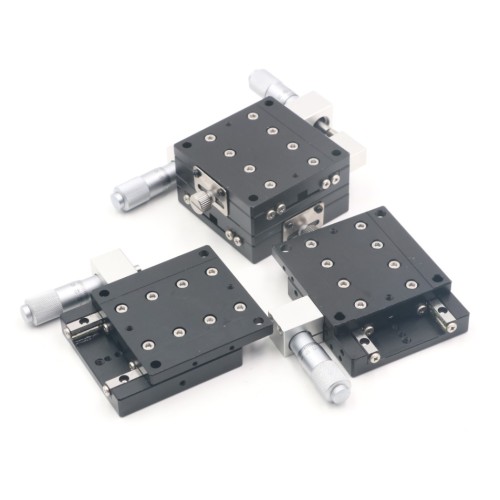

Accurate Motion Linear Positioning Stage, produced by ScrewTech company.
The used methods of Semiconductor Positioning Platform is to use a pin to flip the frame with a magnetic switch, so that the fixed glass above can be combined with the frame below. Customized motion linear positioning stage, switch and gear installed in that machinery box.For now, you can find the positiong platform in 5g times. The UVW platform named after UVW was used as a blueprint, Which contained shaft, wore, some of them connected with linear module, ball screw, motor, etc. Engineers then reduced it and greatly reduced the height, combining the XXY form of the counterpoint platform that is often seen nowadays. 5G Factory Positioning Platform has also evolved into a single module assembled with rails or even cross rails, and a high-precision alignment platform driven by a three-axis motor or even a four-axis motor with the switch.
1. XYθ alignment platform: it is a set of X and a set of Y-direction modules, superimposed, and a rotating mechanism is placed on the top to become an XYθ alignment platform. Generally, the accuracy is relatively low.
2. UVW alignment platform: It is to stack two sets of X electric modules and one set of Y-direction electric modules, and place an electric rotating mechanism on top to become a UVW alignment platform with higher accuracy than the former
3.XXY alignment platform: It is the XXY alignment platform composed of two X-axis electric modules, and a Y-axis electric module plus a free axis module. It can be installed in the individual axis modules. Turntable, when the XXY axis is moving at the same time, a small amount of rotation of theta angle is generated, and the accuracy is quite high
4. XXYY alignment platform: as the name implies, it is a XXYY alignment platform composed of two X-axis electric modules and two Y-axis electric modules. The accuracy, alignment speed and rigidity of the body are all relative to the above items. The higher the product, the more difficult to manufacture
