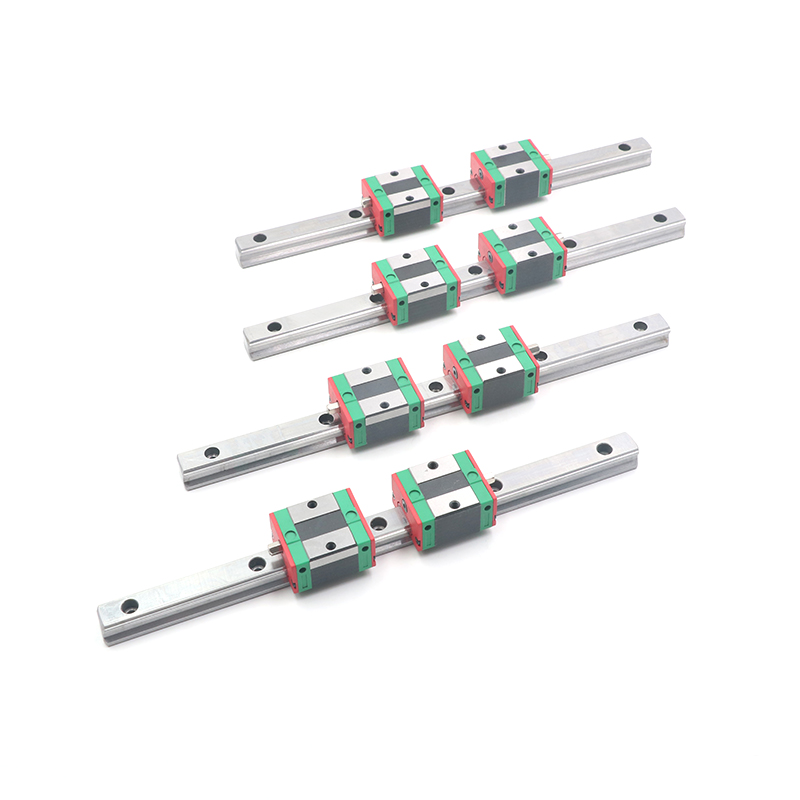

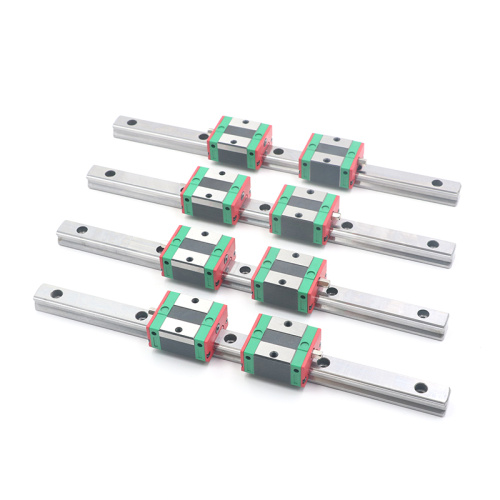

TRH15VN TBI model linear guideways

$20.00 - $200.00/Others

Min. Order:: 1 Others

Min. Order:: 1 Others

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou
Productivity:	20000 pcs/ month
Supply Ability:	20000 pcs/ month
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,DAF,CFR,DES,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery
Certificate:	IATF16949
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Products Description

Linear rolling guide: widely used in electronics, laser, engraving, cutting and other industries, with high precision, low noise,
corrosion resistance, rust resistance, high speed, low cost, etc., is favored in the field of linear transmission.

Specification :
The new RG series from Hiwin features a roller as the rolling element instead of steel balls. The roller series offers super high
rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the
linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load
directions.The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service
life.

Rolling circulation system: Block , Rail , End cap , Circulation path, rollers

Lubrication system: Grease nipple and piping joint

Dust protection system: End seal, Bottom seal, Cap, Double seals and scraper

Key Features :

1.Built-in long life lubrication

2.High positional accuracy

3.High speed motion is possible with a low driving force

4.Equal loading capacity in all directions

5.Easy installation

6.Inter change ability

Advantages :

(1) Optimal design
fEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path
allows the RG series linear guideway to offer smoother linear motion.

(2) Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area than
balls so that the roller guideway features higher load capacity and greater rigidity.

(3) Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in
the radial, reverse radial and lateral directions. The RG series has a higher load capacity in a smaller size than conventional,
ball-type linear guideways.

(4) Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore, stress
concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG series can be
calculated by using Eq.

Why choose Screwtech

1. We Screwtech is a professional manufacturer of Ball Screws,Lead Screws.Meanwhile, Distributing Stepper Motor,Linear
Guideway,AKD-Support for ball screw,Coupling,Linear Module for more than 10 years.
2. We are factory:We can offer you products of high quality with competitive price.
3. Customized service:Various models are available upon request.

Application :
Automation Device ; Transportation equipment ;CNC machining centers; Heavy duty cutting machines ; CNC grinding machines;
Injection molding machines ; Electric Discharge Machines ; Plano millers; Devices requiring high rigidity and high load capacity.
