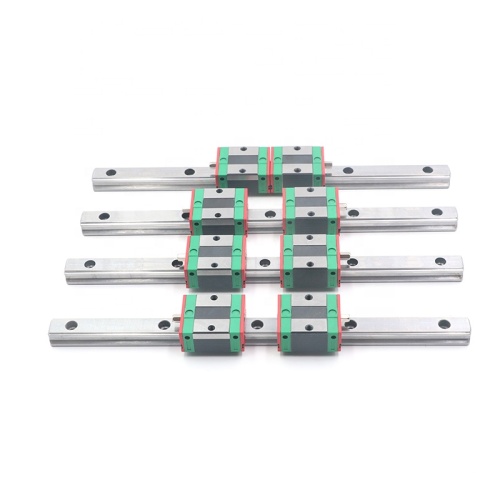

TRH20FN model linear guideway
  • TRH20FN model linear guideway
  • TRH20FN model linear guideway
  • TRH20FN model linear guideway
TRH20FN model linear guideway
TRH20FN model linear guideway
TRH20FN model linear guideway

TRH20FN model linear guideway

$20.00 - $200.00/Others
Min. Order:
1 Others
Min. Order:
1 Others
Transportation:
Ocean, Land, Air
Port:
Shanghai
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Suzhou
Supply Ability: 20000 pcs/ month
Payment Type: L/C,T/T,D/P
Incoterm: FOB,DAF,CFR,DES,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery
Certificate: IATF16949
Transportation: Ocean,Land,Air
Port: Shanghai
Product Description
Product Description

  Linear guideway of HIWIN linear guideway for RG series





Product Description






Key Features


1.Built-in long life lubrication

2.High positional accuracy

3.High speed motion is possible with a low driving force

4.Equal loading capacity in all directions

5.Easy installation

6.Inter change ability



Specification



The new RG series from Hiwin features a roller as the rolling element instead of steel balls. The roller series offers super high rigidity and very high load capacities. The RG series is designed with a 45-degree angle of contact. Elastic deformation of the linear contact surface, during load, is greatly reduced thereby offering greater rigidity and higher load capacities in all 4 load directions.The RG series linear guideway offers high performance for high-precision manufacturing and achieving longer service life.



Rolling circulation system: Block , Rail , End cap , Circulation path, rollers
Lubrication system: Grease nipple and piping joint
Dust protection system: End seal, Bottom seal, Cap, Double seals and scraper




Advantages


(1) Optimal design
fEM analysis was performed to determine the optimal structure of the block and the rail. The unique design of the circulation path allows the RG series linear guideway to offer smoother linear motion.
(2) Super high rigidity
The RG series is a type of linear guideway that uses rollers as the rolling elements. Rollers have a greater contact area than balls so that the roller guideway features higher load capacity and greater rigidity.
(3) Super high load capacity
With the four rows of rollers arranged at a contact angle of 45-degrees, the RG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. The RG series has a higher load capacity in a smaller size than conventional, ball-type linear guideways.

(4) Operating life increased
Compare with the ball element, the contact pressure of rolling element is distributed on the line region. Therefore, stress concentration was reduced siginificantly and the RG series offers longer running life. The nominal life of RG series can be calculated by using Eq.



Application


Automation Device
Transportation equipment
CNC machining centers
Heavy duty cutting machines
CNC grinding machines
Injection molding machines
Electric Discharge Machines
Plano millers
Devices requiring high rigidity and high load capacity



Types


(1) Block types
HIWIN offers two types of guide blocks, flange and square type. Because of the low assembly height and large mounting surface, the flange type is excellent for heavy moment load applications.
(2) Rail types
In addition to the standard top mounting type, HIWIN also offers the bottom mounting type of rails.



Standard and Maximum Lengths of Rail

HIWIN offers a number of standard rail lengths. standard rail lengths feature end mounting hole placements set to predetermined values (E). for non-standard rail lengths, be sure to specify the E-value to be no greater than 1/2 the pitch (p) dimension. An E-value greater than this will result in unstable rail ends.




Related Products



1.STEPPER MOTOR


2.BALL SCREW:


SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES,M-CSNF SERIES BALL SCREW


3. LEAD SCREW


4. AKD SUPPORT UNIT


5. LINEAR GUIDEWAY


6.COUPLING

Why choose us ?

1. Screwtech designs, manufactures, supplies a complete selection of inch and metric linear mechanical parts and systems to the Linear Motion and Power Transmission Industries.


2 Professional manufacturer



We have the professional production team, high precision production equipments ,focused on precision transmission parts for more than 10years  and have our own brand name WKT .



3 Quality control

1).We have QC department to control quality for each step.

2).We also have Automatic product equipments(German Chiron FZ15W ,DMG MORI MAX3000 Machining Centers ) which can cantrol the precision itself

3).ISO9001:2008



 4 Competitive Price



 Screw Technology is a manufactory which can export directly to customer, so there is no intermediary cost involved.



 5 Quickly Delivery



We are big manufacturer ,have large amount of stock, we can delivery customer's order just-in-time for small order, 7-15 days for big order.



 6  Best After-Sale Service



Screw Technology supply the after-sale service and technical assistance as per customer's requirement and needs. Customers are always given quick support.


We keep in touch with our factory during 24H online and by phone.so we can save much intermediate cost and give the best price to you as well as the fast delivery and swift problem solving!!
