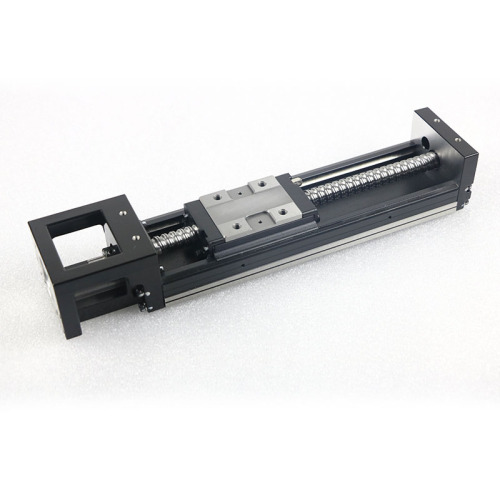

Single-Axis Robot KK5005-150A1-FOR SALE
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Productivity: | 20000 pcs/ month |
| Supply Ability: | 20000 pcs/ month |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP,DEQ,DDP,DDU,DES,DAF,Express Delivery |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai |
Product Description
Single-Axis Robot KK5005-150A1-FOR SALE, designed and produced by our own brand WKT, widely used in automation machinery field. Single-Axis Robot KK5005-150A1-FOR SALE consist of precision ball screw or lead screw and a Linear guideway integrated with guideway and block, servor motor. The KKR single axis robot combines both ballscrew and guideway to achieve better performance on accuracy, stiffness, rapid installation, and space saving. The optimized U-rail not only guides the movement of the slider being driven by the ball screw, but also can be used as a structural component when assembled into a multi-axis motion system.
Features：
Easy for system design, installation and maintenance
Compact and lightweight High accuracy and high stiffness
Well equipped with required accessories Design Optimization
(1) Lead Accuracy Up to Grade C3 C5 C7 and C10 ,screws in the module have been Standardized. High precision or normal precision.(2) Single-Axis Robot KK5005-150A1-FOR SALE are interchangeable between ground and rolled screws.
(3) Available to ship separately ball screw and ball nuts can be shipped separated ensure shortest delivery time. The ball nuts are standardized with light preload, also the preload value can be adjusted to zero or heavy.
Single-Axis Robot KK5005-150A1-FOR SALE, we make full use of features of Miniature Ball screw manufacture and super compact design actuator can achieved the high precision C3 according to our customers’ requirement. The diameter of one of the screw shaft ends must be less than the screw shaft root diameter, otherwise ball nut cannot be installed. For Application field, Single-Axis Robot KK5005-150A1-FOR SALE also used in machine tools, robots and precision assembly equipment. High precision ball screws are used in steppers for semiconductor manufacturing.Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack.
Stroke and Load
|
Model |
Max Stroke(mm) |
Load(kg) |
|
|
Horizontal |
Vertical |
||
|
KK40 |
136 |
15 |
2 |
|
KK50 |
220 |
30 |
3 |
|
KK60 |
510 |
45 |
6 |
|
KK86 |
810 |
100 |
15 |
|
KK100 |
1228 |
120 |
22 |
|
KK130 |
1511 |
150 |
25 |
Accessories of KK Robot
Accessories of KK single-axis robot are also supported for specifc demands, such as an aluminum cover, bellows, motor adaptor flange and limit switchs.s
Aluminum cover and bellow: contamination protection
Motor adapter flange: connecttion for different types of motors
Limit switchs: starting point, positioning and other safety matter
Contamination protection of KK robot
Testing
KK Accuracy Test by Laser Interferometer Life Test of KK Robot
