diameter20mm pitch20mm large lead ball screw
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100000set/mounth |
|---|---|
| Payment Type: | T/T,D/P |
| Incoterm: | FCA,CIF,FOB |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shanghai |
SFA2020 ball screw is large lead ground ball screw, specialized component designed specifically for demanding tasks that demand exceptional precision and linear movement. These screws, which have a 20mm diameter, are manufactured with exceptional attention to detail and accuracy, guaranteeing reliable and efficient performance.
Material： Gcr15(HRC60~62),9Cr18(HRC55~58)
Preload：P0,P1,P2,P3,P4
Accuracy grade：C1,C3,C5
Features：Clean and smooth,excellent surface finsh
Certificates：ISO9001:2015,CE certificate,RoHS and reach compliance
MOQ：1 piece
Mating parts：Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available
Lead time：10~30 days.
Packing：Carton+Plastic bag + Wooden box or according to customers' demands

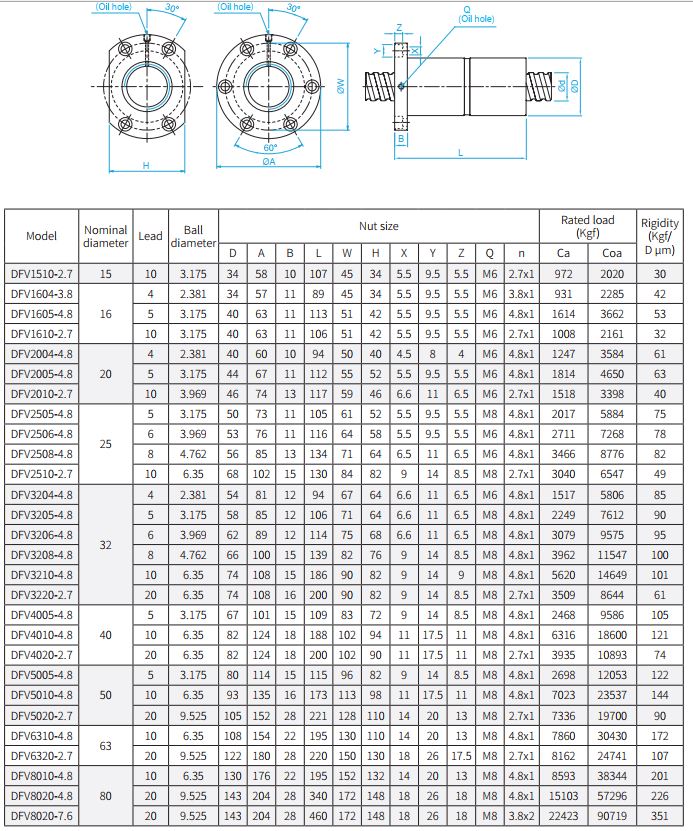

Catalog:

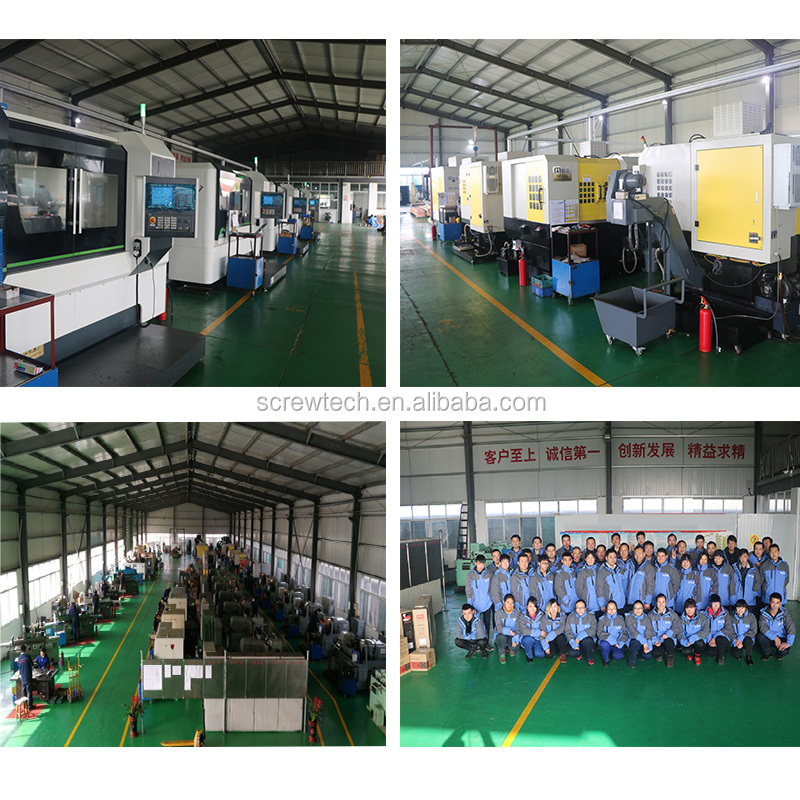

Our factory
More size inquirements please contact us.
