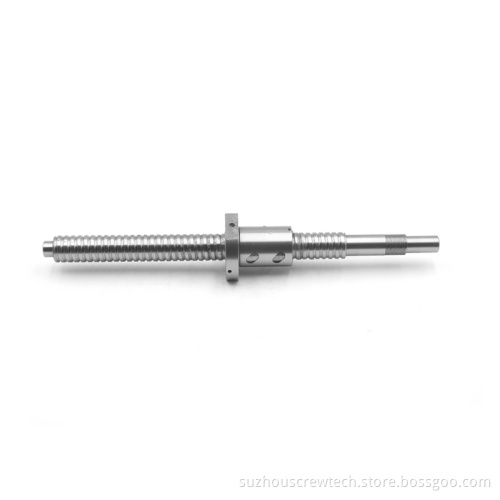

High accuracy customsized ball screw for gantry robot

High accuracy customsized ball screw for gantry robot

Our ball screw series:

Miniature Dia. : Ø 4 ~ 16 mm

Some unique models such as 0401, 0602 , 1210,1404 and so on.

Nominal Diameter:  Ø 4 ~ 32 mm

Nut type: Standard or customized.

Customized item, lead time: 30 days at most

Processing technology:by grinding

Accuracy grade:C3 C5

Thread Direction  :  Right ; Left ; Bi-directional

Material: Gcr15 or stainless steel

You can use our own brand or we design and produce customized products as per your requirement.

Our ball screw model selection

(can be customized according to your needs)

1.  High mechanical efficiency                     2. Steady motion

3.  Accuracy grade of C3, C5                      4. Long service life

5.  Good synchronism                                 6.Own factory supply

7.  Manufacture by grinding

The characteristic of ball-screw pair

The ball screw drive system is a rolling screw drive system, in which the ball acts as the rolling medium. There are two drive modes:

(1) transform rotary motion into linear motion.   (2) transform linear motion into rotary motion.

Application fields:

Automatic controlling machines, semi-conductor industry, general industrial machinery, machine tools, medical equipments, parking systems, measuring instrument, Automatic computer strip machine,  Gantry cranes,  Gantry robot,  3D engraving machine ect..

Our product series

1.BALL SCREW:

SFU SERIES,SFE SERIES,M-ISNF SERIES,M-ISNA SERIES,M-CSNF SERIES BALL SCREW

2. LEAD SCREW

3. AKD SUPPORT UNIT

4. LINEAR GUIDEWAY

5.COUPLING
