SFU2510 ball screw with SSV nut
-
$45.00≥1 Others
- Min. Order:
- 1 Others
- Min. Order:
- 1 Others
- Transportation:
- Ocean, Land, Air, Express
- Port:
- ShangHai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SuZhou |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,Express Delivery |
| Certificate: | IATF16949 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | ShangHai |

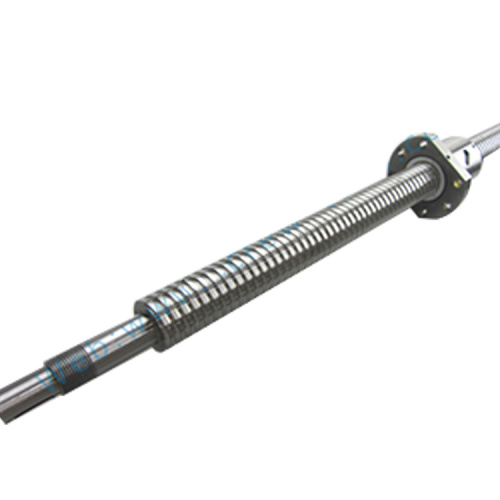

Diameter 25mm pitch 10mm C5 ball screw 2510 with SSV nut
Ball screw is an ideal product that converts rotary motion into linear motion, or converts linear motion into rotary motion.
Ball screw is the most commonly used transmission element in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion, or convert torque into axial repetitive force. At the same time, it has both high precision, reversibility and high Features of efficiency. Because of its low frictional resistance, ball screws are widely used in various industrial equipment and precision instruments.
The ball screw is composed of a screw, a nut, a steel ball, a pre-compression piece, a reverser, and a dustproof device. Its function is to convert rotary motion into linear motion, which is a further extension and development of Akem screw. The important significance of this development is to change the bearing from sliding motion to rolling motion.
Our Ball Screw Key Features
1. High mechanical efficiency
2. Low noise
3. Accuracy grade of C3, C5, C7
4. Long service life
5. Good synchronism
6. Factory directly supply
Specification for C5 ball screw 2510 with SSV nut
Product Ball Screw
Model GQ2510
Diameter:25mm
Lead(Pitch): 10mm
Thread length: 760mm
Shaft length: 850mm
Thread: right hand
Material: 440C stainless steel
Production Technology: by grinding
Feature: High accuracy, SSV nut. 440C material
Purpose on molybdenum disulfide coating:
1. self-lubricating property
2. abrasion resistance
3.Long service life
4. Stability
Other types and shapes are available upon request
We Screwtech is a professional manufacturer of Ball Screws, Lead Screws for more than 10 years in China.
Our ball screw range:
* Miniature Diameter:4 ~ 16 mm/Lead: Ø 1 ~16 mm
* Nominal Diameter:4 ~ 80 mm/Lead:0.5 ~ 40mm
* Accuracy grade:C3, C5, C7
* Thread Direction Right ; Left ; Bi-directional
* Nut Type: Standard or Customized
We can produce same size ball screw as HIWIN, TBI, THK with much more cheaper price ;fast delivery. You can use our own brand or we design and produce customized products as per your requirement.
